Maintenance 3-17
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: RAID Array 3000 Pedestal Storage Subsystem Hardware User’s Guide Comments:
Part Number: EK-SMCPO-UG. C01 File Name: d-ch3 Maintenance.doc Last Saved On: 12/4/00 1:50 PM
NOTE: To decrease the configuration number, Press the upper switch to step the
address down one address at a time (decrement) until the desired configuration number is
displayed.
To increase the configuration number, press the lower switch to step the address up one
address at a time (increment) until the desired configuration number is displayed.
10. Close the side panels and replace the cover screw.
3000-38
6

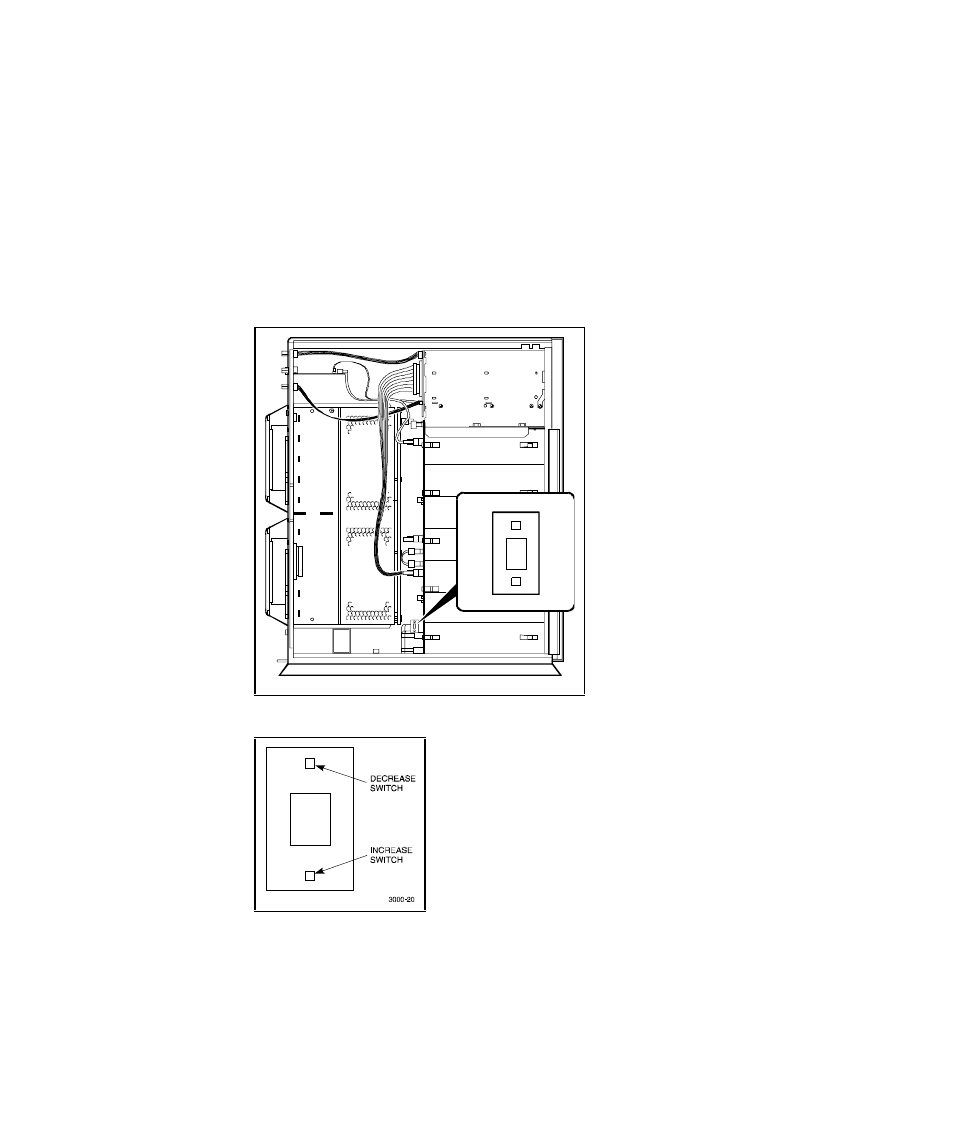

Figure 3-9. Location of SCSI bus configuration switch
6
Figure 3-10. Configuration switch
NOTE: Reconfiguring the bus also involves cable and bus terminator changes. Chapter 4
“Expansion Pedestal Option” describes, in detail, how to reconfigure the bus.
