Compaq RAID ARRAY 3000 EK-SMCPO-UG. C01 User Manual
Page 76
3-16 RAID Array 3000 Pedestal Storage Subsystem Hardware User’s Guide
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: RAID Array 3000 Pedestal Storage Subsystem Hardware User’s Guide Comments:
Part Number: EK-SMCPO-UG. C01 File Name: d-ch3 Maintenance.doc Last Saved On: 12/4/00 1:50 PM

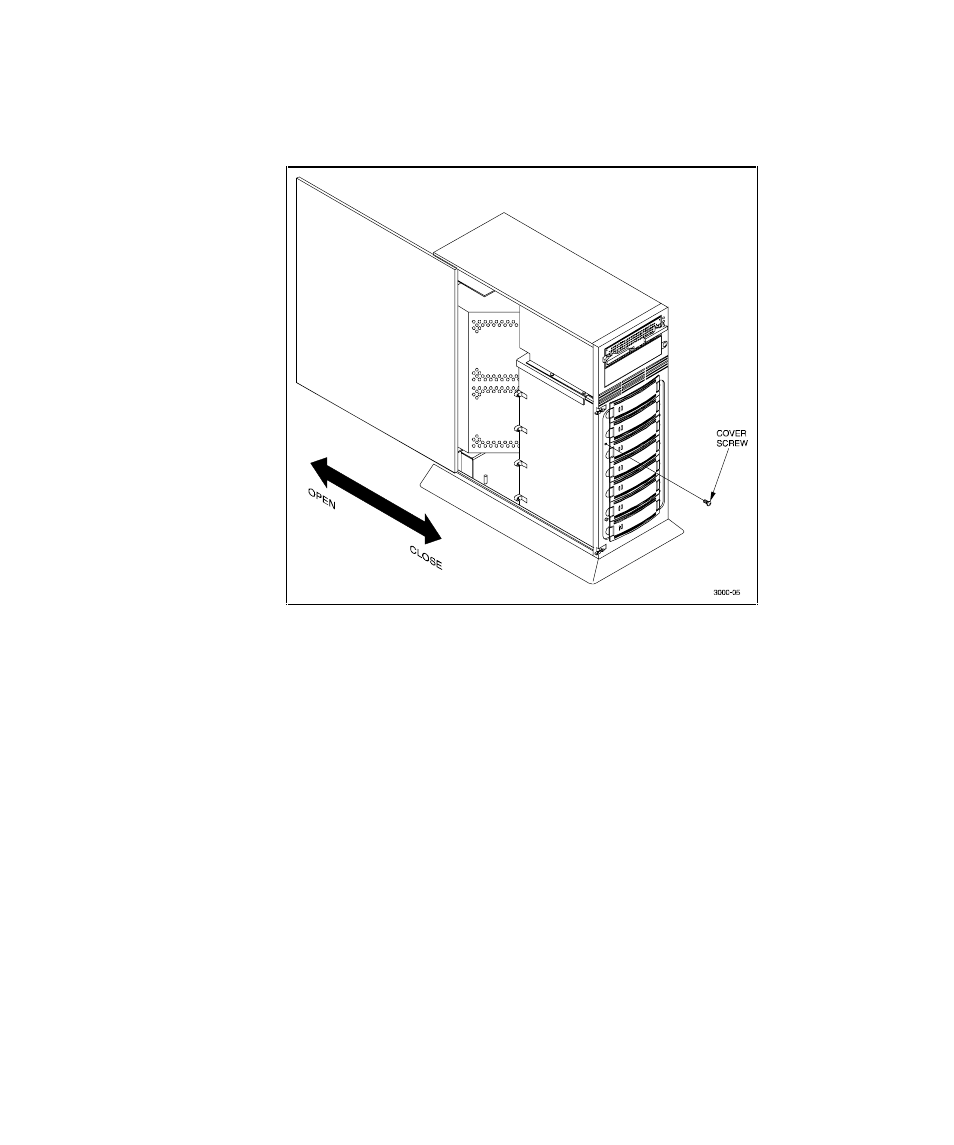

Figure 3-8 shows how to remove the screw and panel.
Figure 3-8. Remove screw and panel
Figure 3–9 shows the location of the switch. Figure 3–10 shows the separate
step switches to set the subsystem to the desired SCSI bus configuration (refer
to the label at bottom of pedestal to cross-reference slot SCSI ID addresses
with switch settings).
