Step 7 — Install Thermostat — These systems use a
3-speed thermostat. The thermostat monitors the system opera-
tion and controls the operating mode. To change settings or re-
fer to the thermostat Operating Instructions.
Mount thermostat to a wall in the occupied space using
2 field-supplied screws. Locate the thermostat in an area that is
not subjected to drafts or direct sunlight through windows.
Locate thermostat on an interior wall whenever possible.
Figure 18 shows available thermostats.

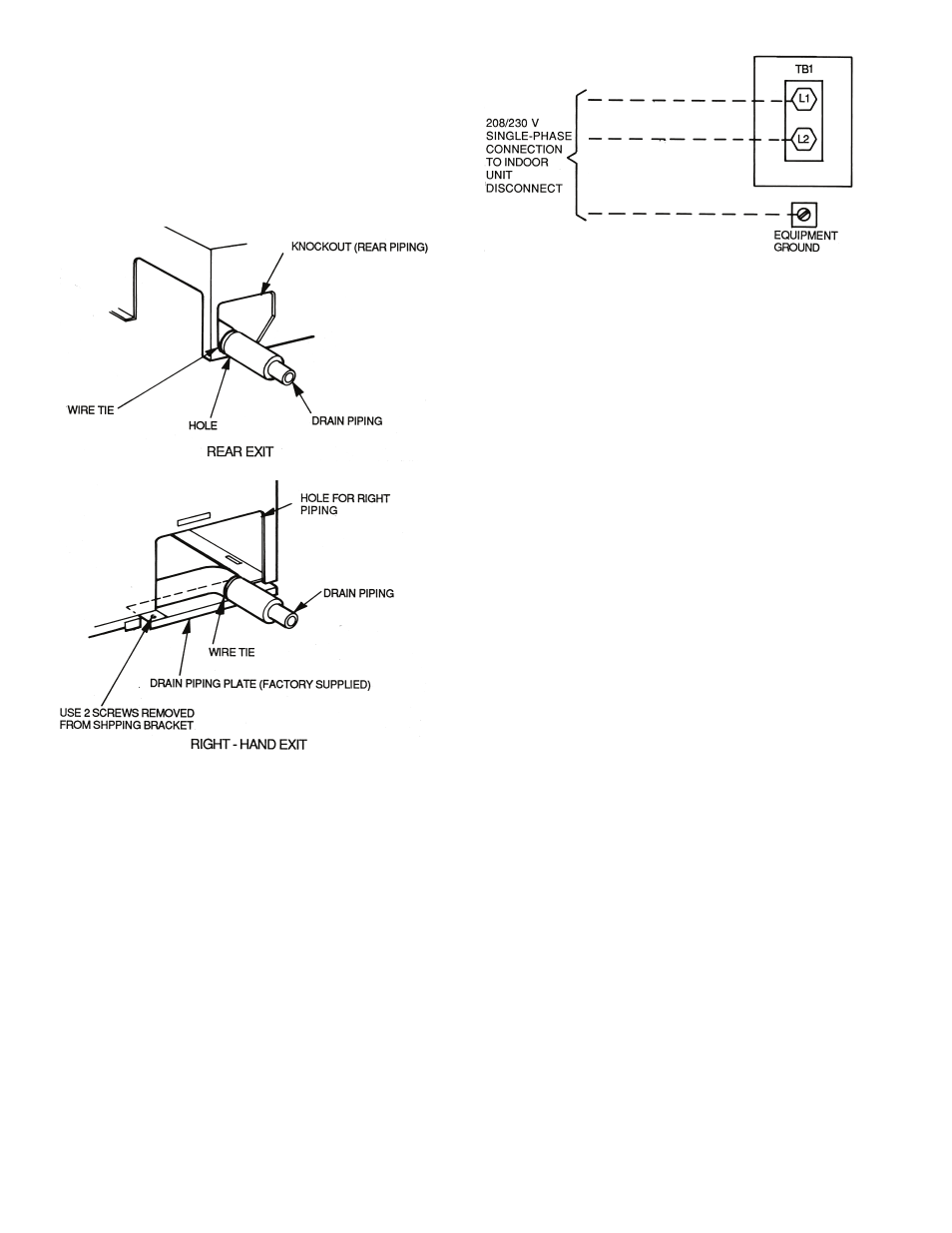

Fig. 15 — Routing Drain Piping
LEGEND
TB — Terminal Block
Fig. 16 — Line Power Connections
