ASSEMBLY

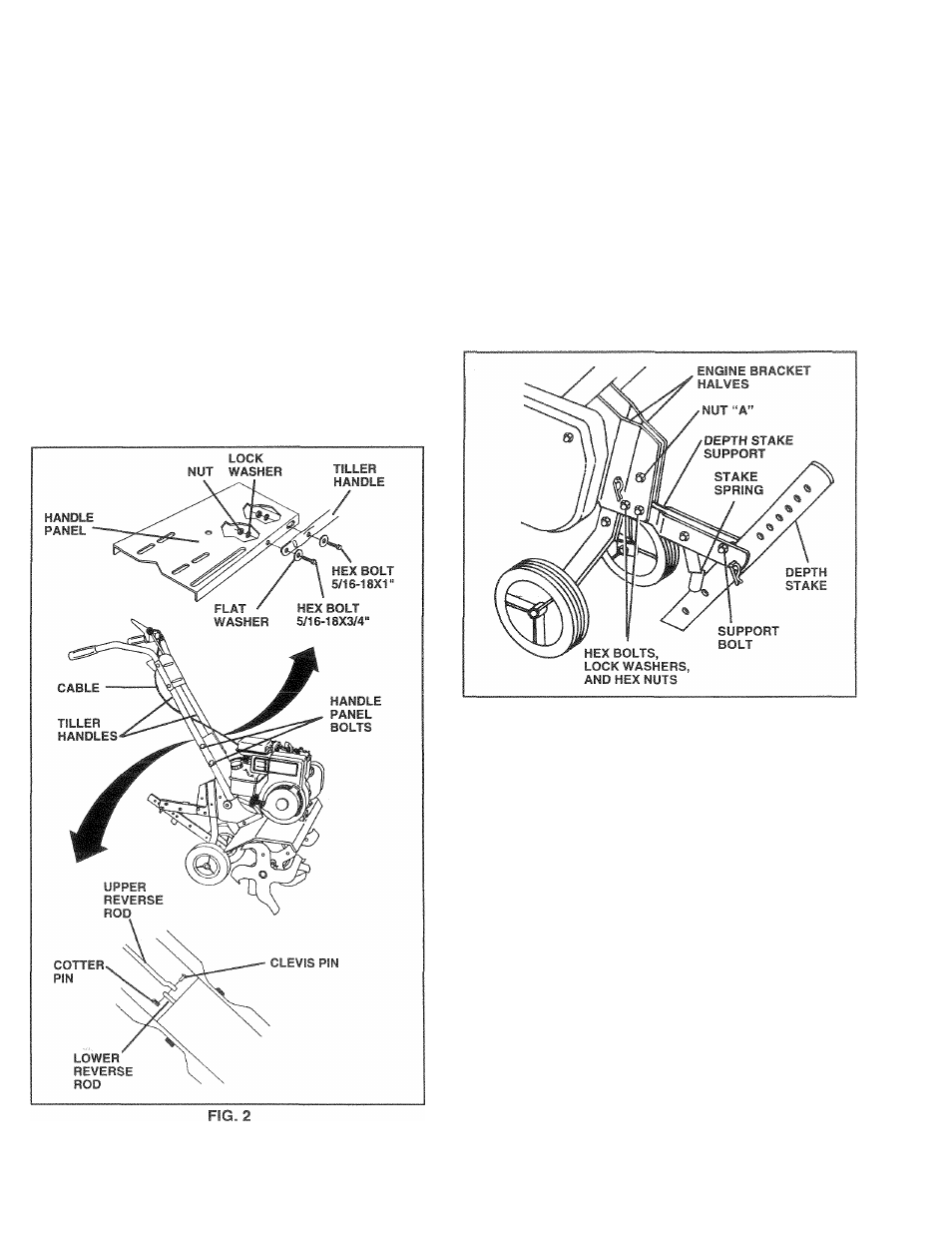

UNPACK CARTON & INSTALL HANDLE (See
Fig. 2|
A
C ^UTiON Be careful of exposed
staples wt-.en handling or disposing of
cartonlfig materia!.
IMPORTANT:
WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE(S).
*
Cut cable ties securing handles.
« Slowly lift handle assembly up and align handle holes
with handle panel hole and slot.
e Loosely assemble hardware as shown. Bs sure the
shorter (3/4“ long) hex bolt is assembled in lower hole
of handle. Repeat for opposite side. Tighten all
hardware securely.
•
Cut cable ties securing tiller to skid and remove tiller
from skid.
INSTALL DEPTH STAKE ASSEMBLY
(See Fig. 3)
•
Loosen nut “A” .
® inaerl staKe support between engine bracket halves
with stake spring down.
s Bolt stake support to engine brackets with bolts, lock
washers and nut.s. Tighten securely. Tighten nut “A”.
•
Depth stake must move freely. If it does not, loosen
support bolt.
INSTALL REVERSE ROD (See Fig. 2)
•
Secure upper reverse rod to lower reverse rod using
clevis pin. Secure with cotter pin.
FIG. 3
HANDLE HEIGHT
® Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” in the Service and Adjust
ments section of this manual).
TILLING WIDTH
•
Tilling width may be adjusted to better handle your
tilling conditions (See “TINE .ARRANGEMENT” in the
Service and .Adjustments section of this manual).
TINE OPERATION
•
Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).
