TILLER - - MODEL NUMBER CHDF550D

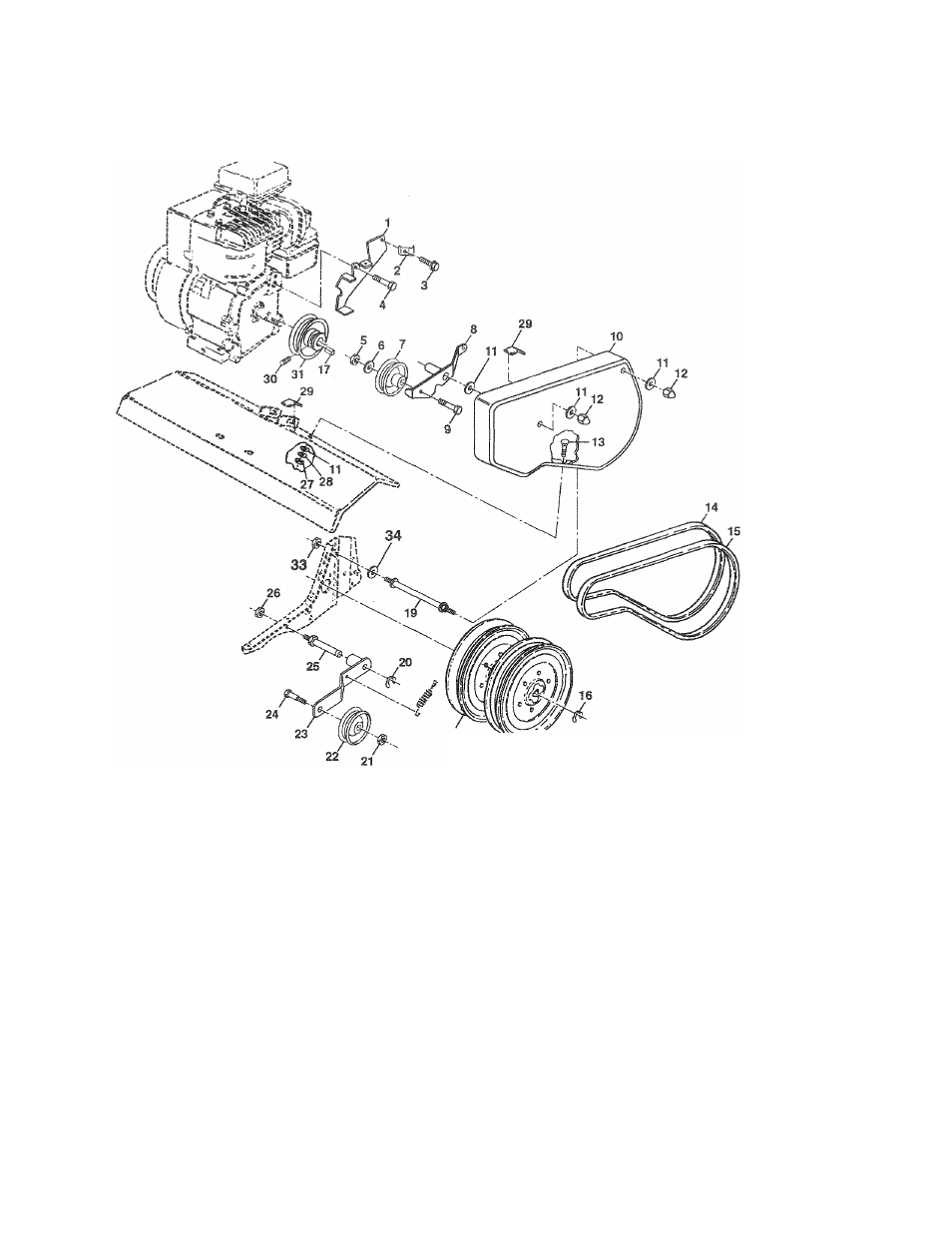

BELT GUARD AND PULLEY ASSEMBLY
BEPAm PARTS
CEY PART
JO. NO.
1 159268
2 9484R
3 86777
4 74610812
5 73220600
6
19131316
7 2009J
8
1271 SOX
9 74760628
10 156705X428
11 19091016
12 104213X
13 72140406
14 133035
15 2614J
16 12000028
17 2649M
18 151236
DESCRIPTION
Assembly, Bracket, Belt Guard
Clip, Cable
Screw, Hex, Washer Hd., Slotted,
Thd. Cutting #10-24 x 1/2 Type D
Bolt, Hex 1/2-20x3/4
Nut, Hex 3/8-16
Washer 13/32 x 13/16 x 16 Ga.
Pulley, Idler, Reverse
Assembly, Arm, Reverse Idler
Bolt, Hex 3/8-16 X 1-3/4
Guard, Belt
Washer 9/32 x 5/8 x 16 Ga.
Nut, Cap 1/4-20
Bolt, Carriage 1/4-20 x 3/4
V-Belt (Forward Motion)
V-Belt (Reverse)
Ring, Retainer
Key, Square
Pulley, Flat, Trans.
32
i B
KEY PART
NO. NO.
19 110550X
20 12000036
21 73350600
22 161806
23 162290
24 74760620
25 106968X
26 73350500
27 73220400
28 10040400
29 109227X
30 23200404
31 101189L
32 151223
33 73510400
34 19091416
DESCRIPTION
Bolt, Belt Guard
Ring, Klip
Nut, Hex, Jam 3/8-16
Pulley, Idler
Arm, Idler
Bolt, Hex 3/8-16
X 1-1/4
Shaft, Idler Arm
Nut, Hex, Jam 5/16-18
Nut, Fin Hex 1 /4-20
Washer LK Hvy Helical 1/4
Pad, Idler
Screw, Set, Socket, Headless
C.P. 1/4-20
X 1 /4
Sheave, Engine
Pulley, V-Groove, Trans.
Nut Keps Hex 1/4-20
Washer 9/32 x 7/8 x 16 Ga.
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
