TILLER - - MODEL NUMBER CHDF550D

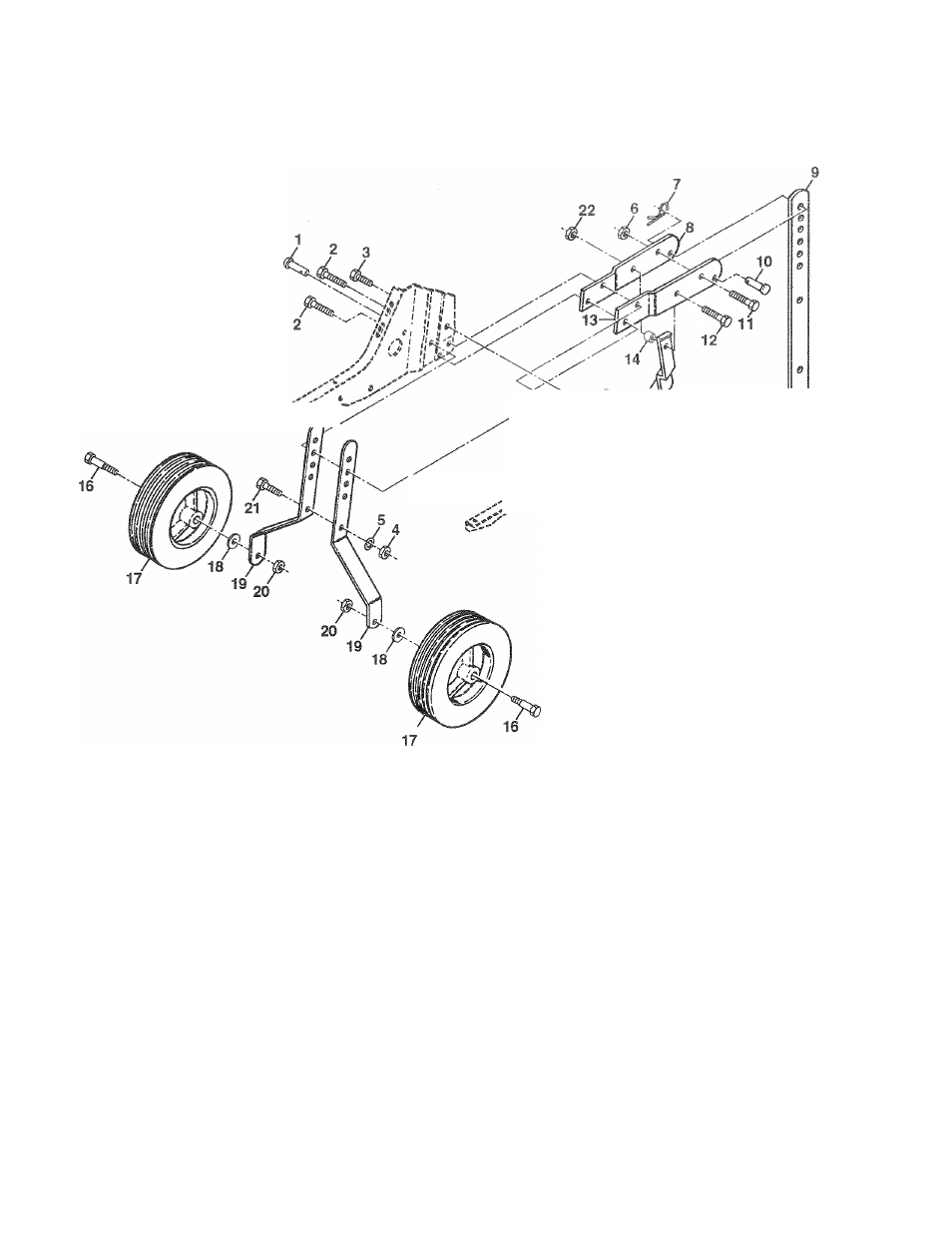

WHEEL AND DE-^1 T IT^rt ASSEMBLY
REPAIR PARTS
-'*" y
5 /
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
9194R
Pin, Clevis
14
120958X
Washer
2
74760520
Bolt, Hex 5/16-18x1-1/4
15
5388J
Spring, Stake
3
74760512
Bolt, Hex 5/16-18x3/4
16
121117X
Bolt, Shoulder
4
73220500
Nut, Hex 5/16-18
17
9188R
Wheel
5
10040500
Washer, Lock 5/16
18
19131311
Washer 13/32 x 13/16 x 11 Ga.
6
73800600
Locknut, w/washer 3/8-16
19
9190R
Bracket, Wheel
7
4921H
Clip, Hairpin
20
73680600
Locknut, Crown 3/8-16
8
1952J
Support, Depth Stake, R.H.
21
74760516
Bolt, Hex 5/16-18
X
1
9
10
11
122233X
326J
74780628
Stake, Depth
Pin, Clevis
Bolt, Hex, Fin 3/8-16x1-3/4
22
73800500
Locknut, w/insert 5/16-18
12
13
74760524
1951J
Bolt, Hex 5/16-18
X
1-1/2 Gr. 2
Support, Depth Stake, L.H.
NOTE: All component dimensions given in U.S. incr
1 inch = 25.4 mm
