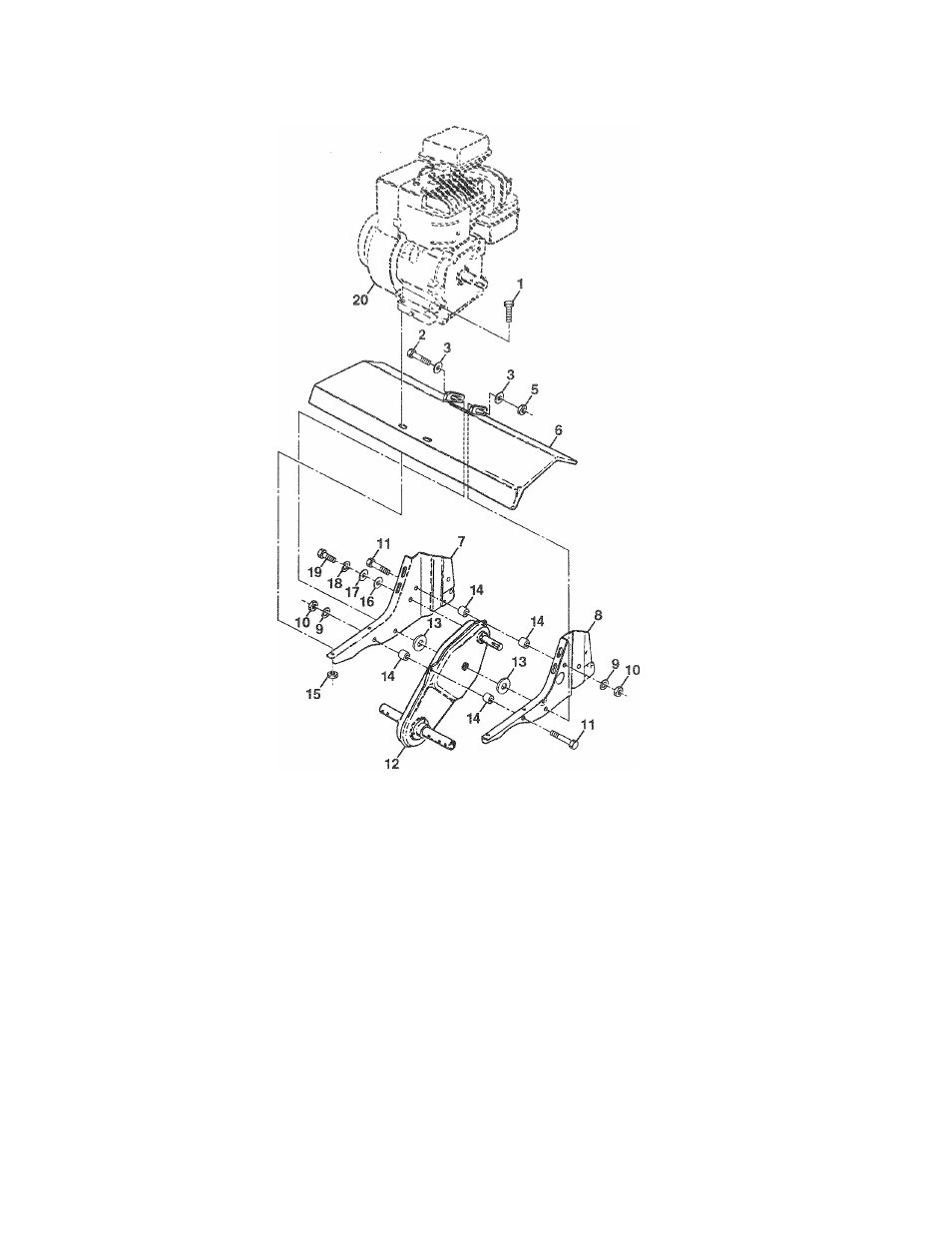

REPAIR PARTS
TILLER - - MODEL NUMBER CHDF550D
TRANSMISSION
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
74760524
Bolt, Hex 5/16-18
X
1-1/2 Gr. 2
13
19171616
Washer 17/32 x1 x 16 Ga.
2
74780652
Bolt, Hex, Fin 3/8-16x3-1/4
14
9173R
Spacer, Split
3
19131311
Washer 13/32x13/16x11
15
73510500
Nut, Keps
5/16
5
73800600
Locknut, Hex, w/washer 3/8-16
16
19091412
Washer 9/32 x 7/8 x 12 Ga.
6
9057R428
Shield, Tine
17
19092016
Washer 9/32 x 1-1/4 x 16 Ga.
7
1949J
Bracket, Engine, R.H.
18
10040400
Washer, Lock
1/4
8
1948J
Bracket, Engine, L.H.
19
74610412
Bolt, Hex 1/4-28 x 3/4 Gr. 5
9
10
11
10040500
732205G0
74760544
Washer, Lock 5/16
Nut, Hex 5/16-18
Bolt,
Hex
5/16-18x2-3/4
20
Engine, Briggs and Stratton, Model
No 137202
12
151222
Transmission
NOTE:
All
component dimensions given in U.S. inches.
1 inch = 25.4 mm
22
