Poulan 2000-11 - Manual (Page 40)

TRACTOR - MODEL NUMBER 271470

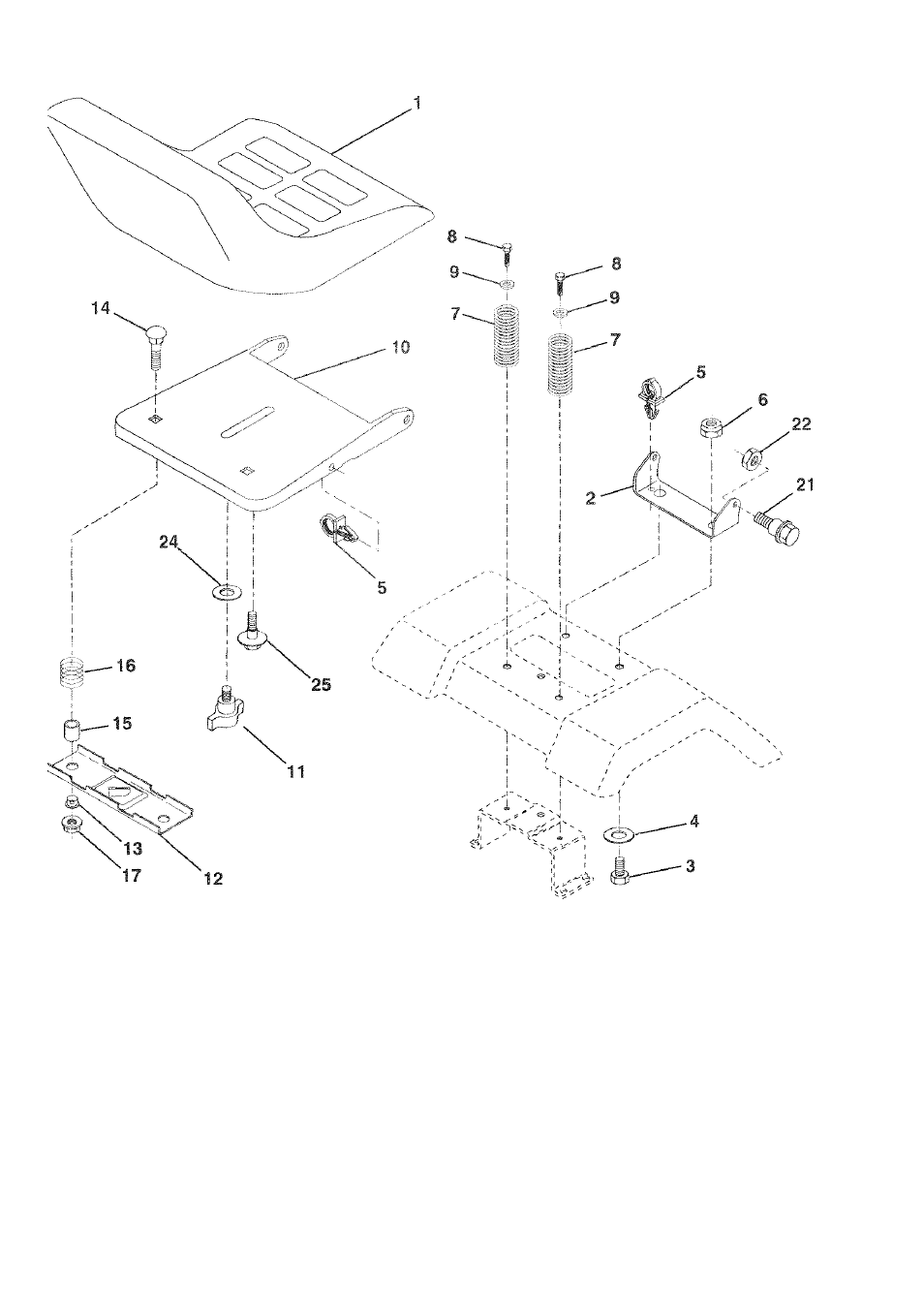

5EAT ASSEMBLY
CEY PART KEY PART
10. NO. DESCRIPTION NO. NO. DESCRIPTION
127427 Seat
13 121248X Bushing Snap BIk Nyi 50 Id
: 140551 Bracket Pvt St 14 72050412 Bolt Rdhd Sht 1/4-20x1-1/2
s 71110616 Bolt Fin Hex 3/8-16unc x 1
15 134300 Spacer Split 28x 96 Yel Zinc
19131610 Washer Flat 13/32 x1 xIO Ga
16 121250X Spring Cprsn 1 27 BIk Pnt
> 145006 Clip Push-in Hinged 17 123976X Nut Lock 1/4 Lge Flq Gr 5
73800600 Locknut Hex W/Wsh 3/8-16
21 171852 BoltShId 5/16-18 Unc
124181X Spring Seat Cprsn 2 250 BIk
22 73800500 Nut Lock Hex W/lns 5/16-18
17000616 Screw 3/8-16 X 1
24 19171912 Washer 17/32 x1 -3/16x12 Ga
: 19131614 Washer 13/32 x 1 x 14 Ga
25 127018X Bolt Shoulder 5/16-18x62
0 174894 Pan Seat
1 166369 Knob Seat Adj. Wingnut NOTE: All component dimensions given in U. S.
2 121246X Bracket Mounting Switch inches 1 inch = 25.4 mm
40
