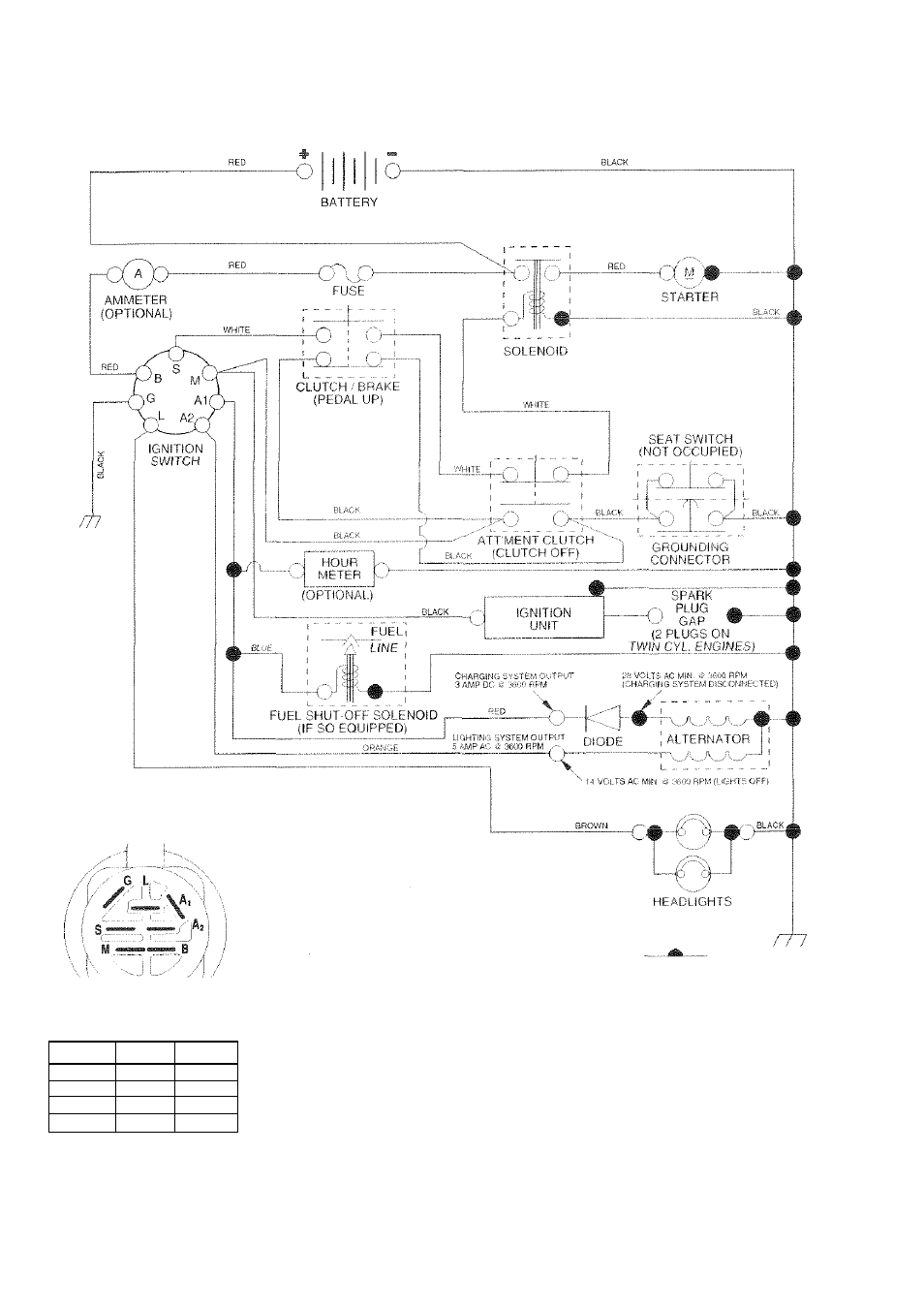

SCHEMATIC

TRACTOR - MODEL NUMBER ¿71470

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM,
THE LIGHTS ARE NOT
CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE,
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS

M^ILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS
WILL DIM, AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.

IGNITION SWITCH

POSITION

CIRCUIT

•‘MAKE ’

OFF

M-G

NONE

RUN.'UGHT

B-A.t

A2-L

RUN

B-A1

NONE

START

B + S f A1

NONE

NON-REMOVABLE

CONNECTIONS

..-< 'H-.

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.
