Seat Pan-

Battery

Box Door -

>s Nut -

Hex Bolt

REPLACE HEADLIGHT BULB

• Raise hood.
• Pull bulb holder out of the hole in the

backside of the grill.

• Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

> Close hood.

NTERLOCKS AND RELAYS

..oose or damaged wiring may cause
/our tractor to run poorly, stop running, or
jrevent it from starting.
> Check wiring. See electrical wiring

diagram in the Repair Parts section.

ro REPLACE FUSE
Replace with 20 amp automotive-type
jlug-in fuse. The fuse holder is located
/ehind the dash.

ro REMOVE HOOD AND GRILL AS
SEMBLY
' Raise hood.
• Unsnap headlight wire connector.
• Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

’ To replace, reverse above procedure.

Hood

Headlight Wire

Connector

ENGINE

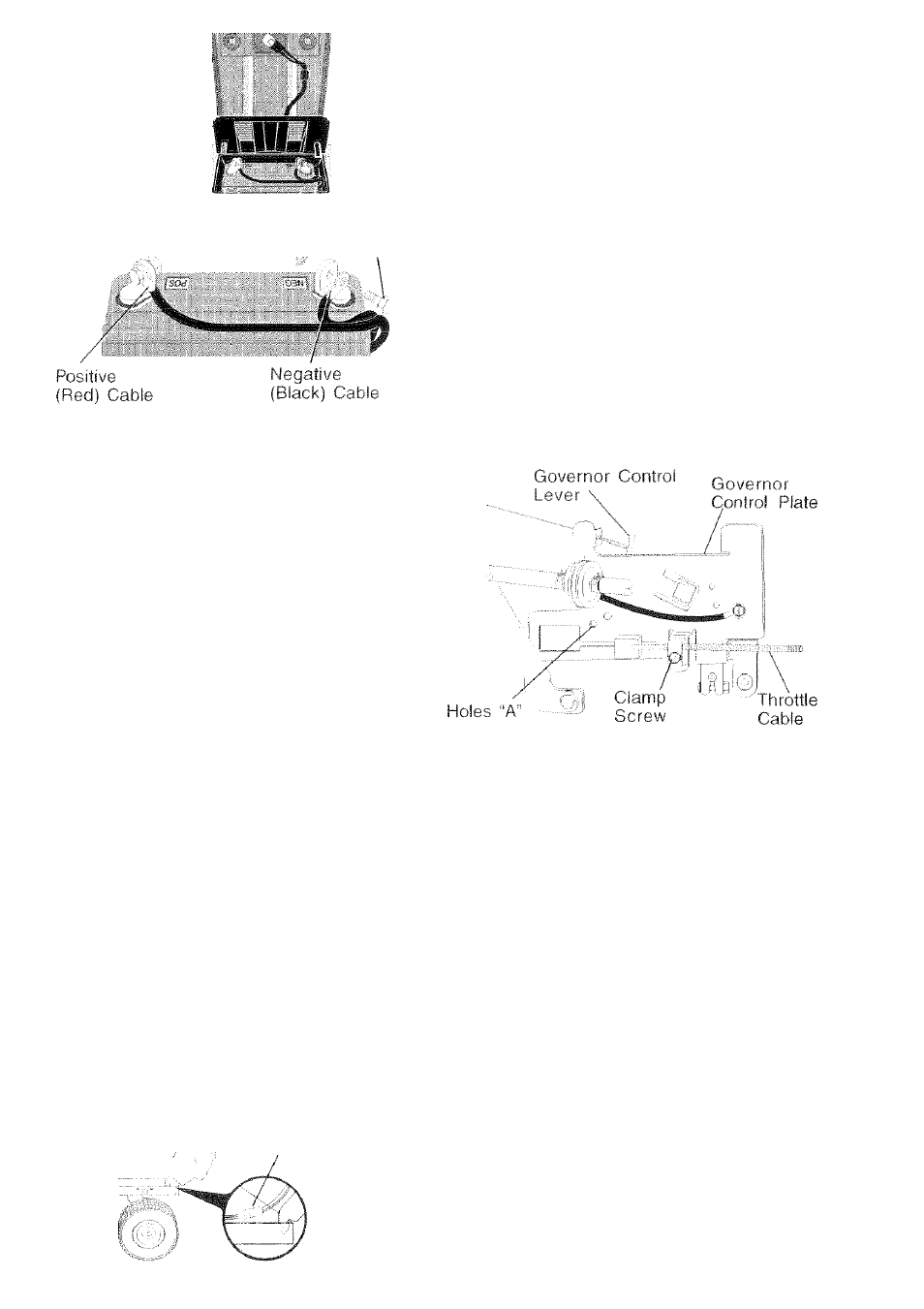

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at

the factory and adjustment should not be

necessary. Check adjustment as

described below before loosening cable.

If adjustment is necessary, proceed as

follows:
• With engine not running, move throttle

control lever from slow to choke
position. Slowly move lever from

choke to fast position.

• Check that holes “A” in governor

control lever and hole in governor

plate line-up. If holes “A” are not
aligned, loosen clamp screw and
move throttle cable until holes are
aligned. Tighten clamp screw
securely.

TO ADJUST CARBURETOR

The carburetor has been preset at the
factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude
or load. If the carburetor does need

adjustment, see engine manual.

High speed stop is factory adjusted. Do
not adjust - damage may result.
IMPORTANT: Never tamper with the

engine governor, which is factory set for
proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest AUTHO

RIZED service center/department, which

has proper equipment and experience to
make any necessary adjustments.
