TO LEVEL MOWER HOUSING
Adjust the mower while tractor is parked
on level ground or driveway. Make sure
tires are properly inflated (See “PROD­
UCT SPECIFiC.ATIONS" -section of this
manual). If tires are over or
underinflated, you will not properly adjust
your mower.
SIDE-TO-StDE ADJUSTMENT
• Raise mower to its highest position.
» At the midpoint of both sides of mower,
measure height from bottom edge of
mower to ground. Distance “A” on
both sides of mower should be the
same or within 1/4" of each other.
» If adjustment is necessary, make
adjustment on one side of mower only.
• To raise one side of mower, tighten lift
link adjustment nut on that side.
• To lower one side of mower, loosen lift
link adjustment nut on that side.
NOTE: Each full turn of adjustment nut
will change mower height about 1/8".
• Recheck measurements after adjust­
ing.

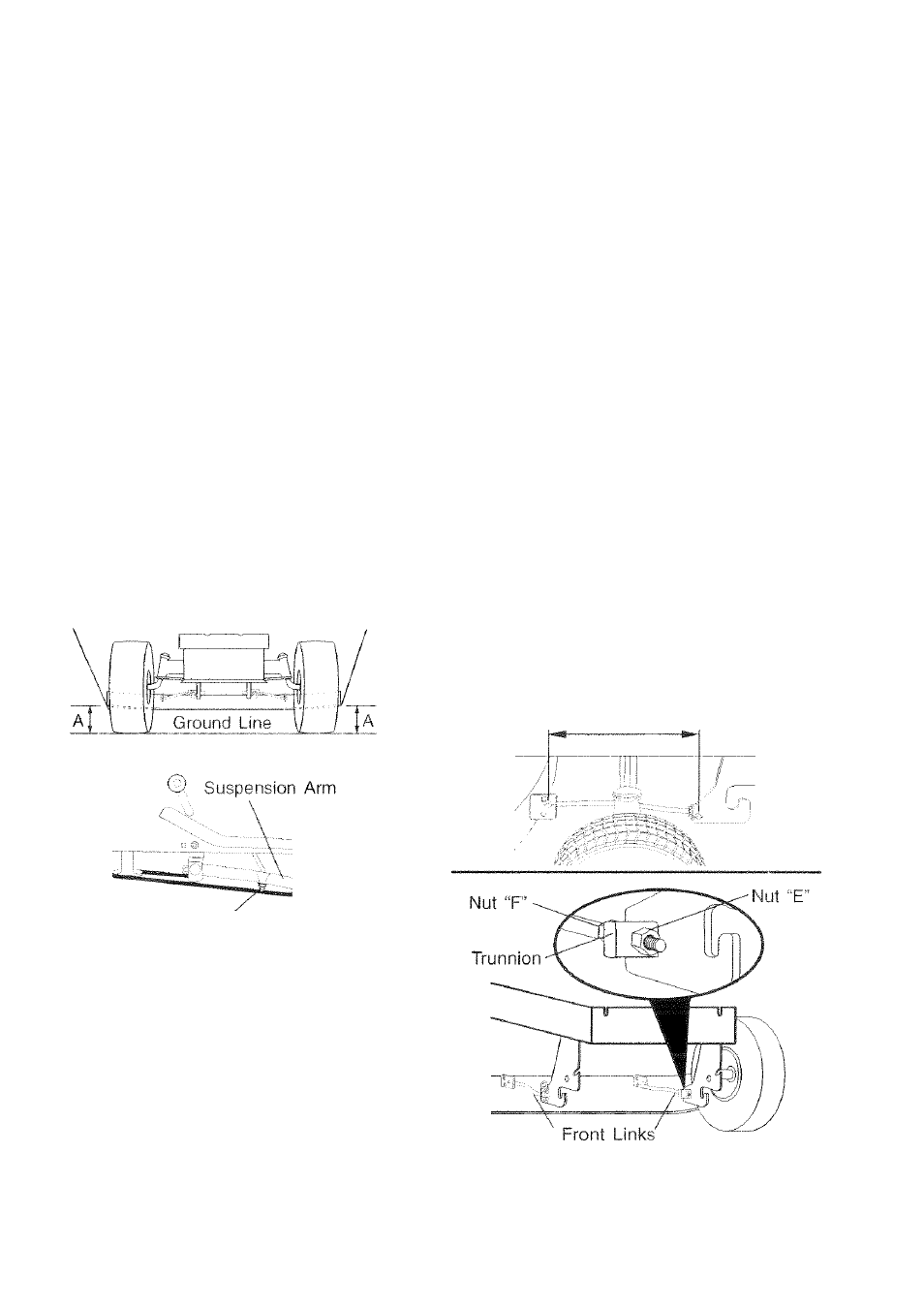

3ottom edge of
Tiower to ground Bottom edge of
mower to ground
Lift Link Adjustment Nut
-RONT-TO-BACK ADJUSTMENT
MPORTANT: Deck must be level side-to
ride. If the following front-to-back
idjustment is necessary, be sure to
rdjust both front links equally so mower
vill stay level side-to-side.
To obtain the best cutting results, the
nower housing should be adjusted so
hat the front is approximately 1/8" to 1/2"
ower than the rear when the mower is in
is highest position.
Check adjustment on right side of tractor.
Measure distance “D” directly in front and
behind the mandrel at bottom edge of
mower housing as shown.
• Before making any necessary adjust­
ments, check that both front links are
equal in length. Both links should be
approximately 10-3/8".
• If links are not equal in length, adjust
one link to same length as other link.
• To lower front of mower loosen nut “E”
on both front links an equal number of
turns.
• When distance “D” is 1/8" to 1/2" lower
at front than rear, tighten nuts “F”
against trunnion on both front links.
•To raise front of mower, loosen nut “F”
from trunnion on both front links.
Tighten nut “E” on both front links an
equal number of turns.
• When distance “D” is 1/8" to 1/2" lower
at front than rear, tighten nut “F” against
trunnion on both front links.
• Recheck side-to-side adjustment.
Mandrel
,1
itDl
Both Front Links Should be Equal in Length
