REPAIR PARTS

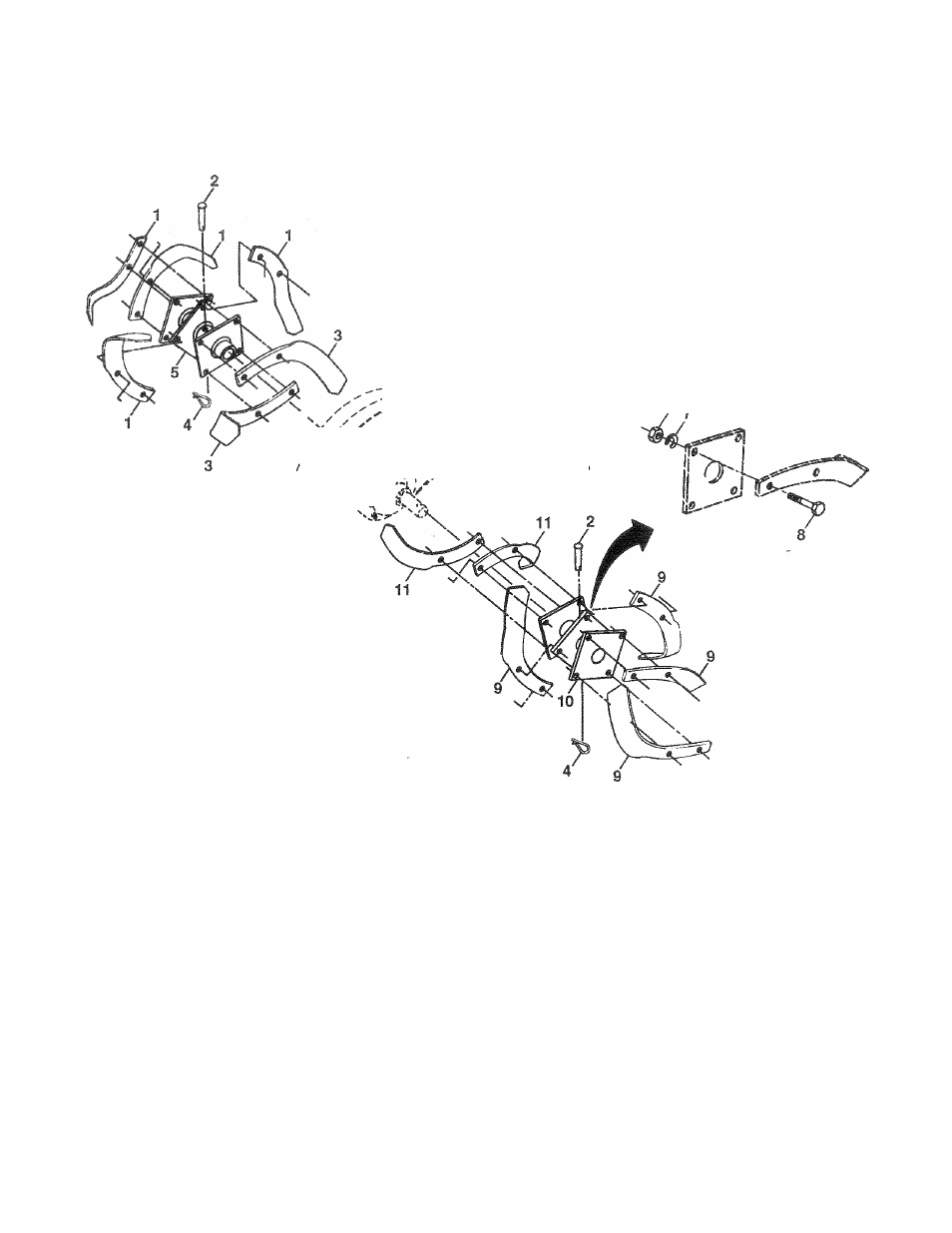

TINE ASSEMBLY
TILLER -- MODEL NUMBER CHDR500D
,c
»".I
i
H
v'
■ j»i //'*
;
' '■ .'• ®
»X
X." I '.:
y /
/ /
/
//Y ,Y' J ' : r - ' i ' ^ C
' / /
» '
. <
'
- V’-v
/ /
t
Y"
't,
h / t C
KEY
NO.
PART
NO.
DESCRiPTiON
KEY
PART
NO. NO.
DESCRIPTION
1
4459J
Tine, Outer, L.H.
8 74610616
Bolt, Hex 3/8-24 x 1
2
132673
Clevis Pin
9 4460J
Tine, Outer, R.H.
3
6554J
Tine, Inner, L.H.
10 132728
Assembly, Hub and Plate, R.H.
4
3146R
Retainer, Spring
11 6555J
Tine, Inner, R.H.
5
132727
Assembly, Hub and Plate, L.H.
*■
6
73610600
Nut, Hex 3/8-24
NOTE: All component dimensions given in U.S. inches.
- 7
10040600
Washer, Lock 3/8
1 inch = 25.4 mm
