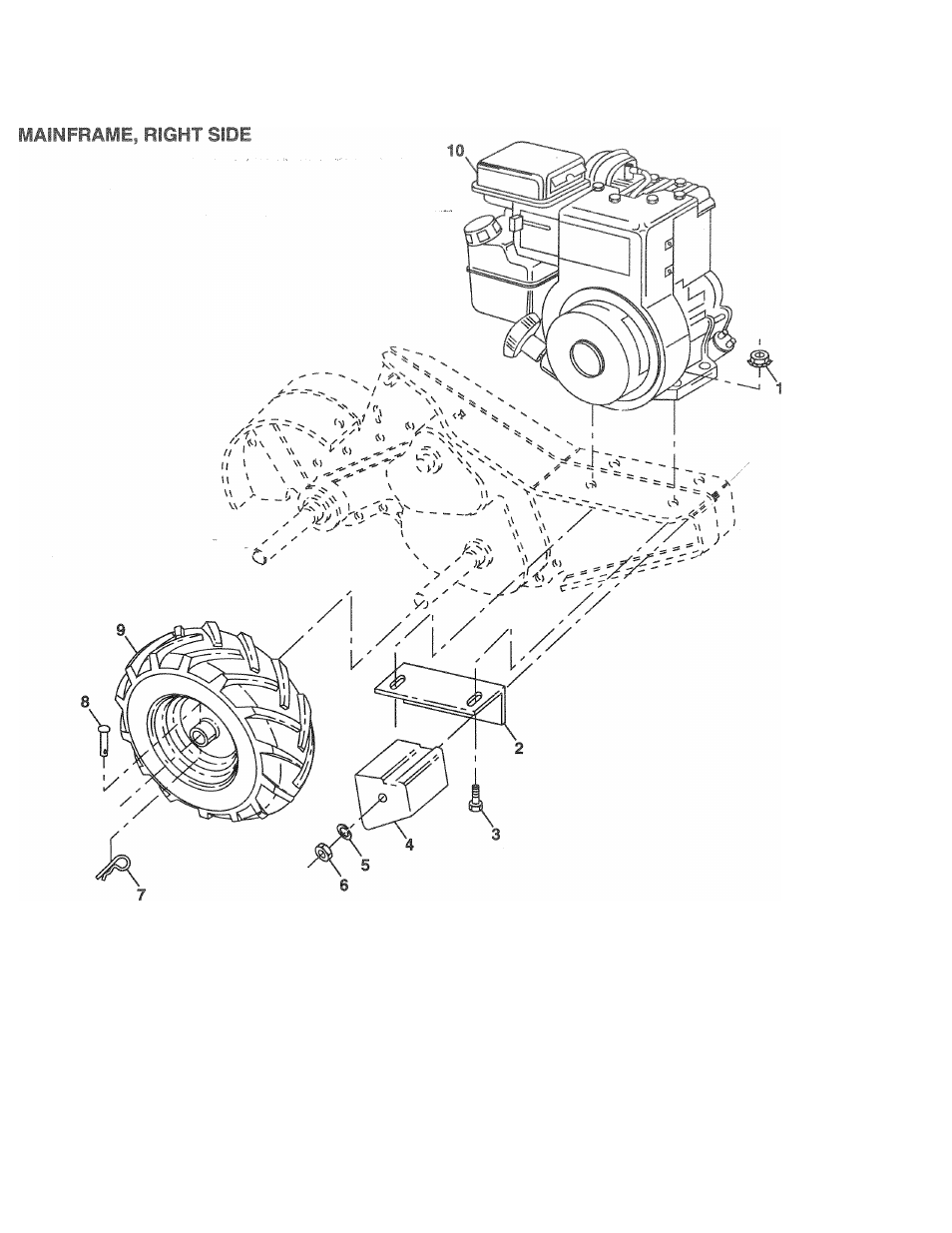

REPAIR PARTS
TILLER - - MODEL NUMBER CHDR500D
KEY
NO.
PART
NO.
DESCRIPTION
KEY
PART
NO. NO.
DESCRIPTION
1
73510500
Nut, Keps 5/16-18
9 10219.0X
Tire
2
102332X
Bracket, Reinforcement ■
150750
Rim
3
74760524
Bolt, Hex -5/16-18
X
1-1/2
795R
Tire Valve
4
102173X
Counterweight, R.H.
10 .................
Engine, Briggs Model 137202
5 . 10040600
Washer, Lock 3/8
(Order parts from engine
6
73220600
. Nut, Hex 3/8-16
manufacturer)
7
4497H
Clip, Hairpin
NOTE: All component dimensions given in U.S.ii
8
126875X
Rivet, Drilled
1 inch = 25.4 mm
