REPAIR PARTS

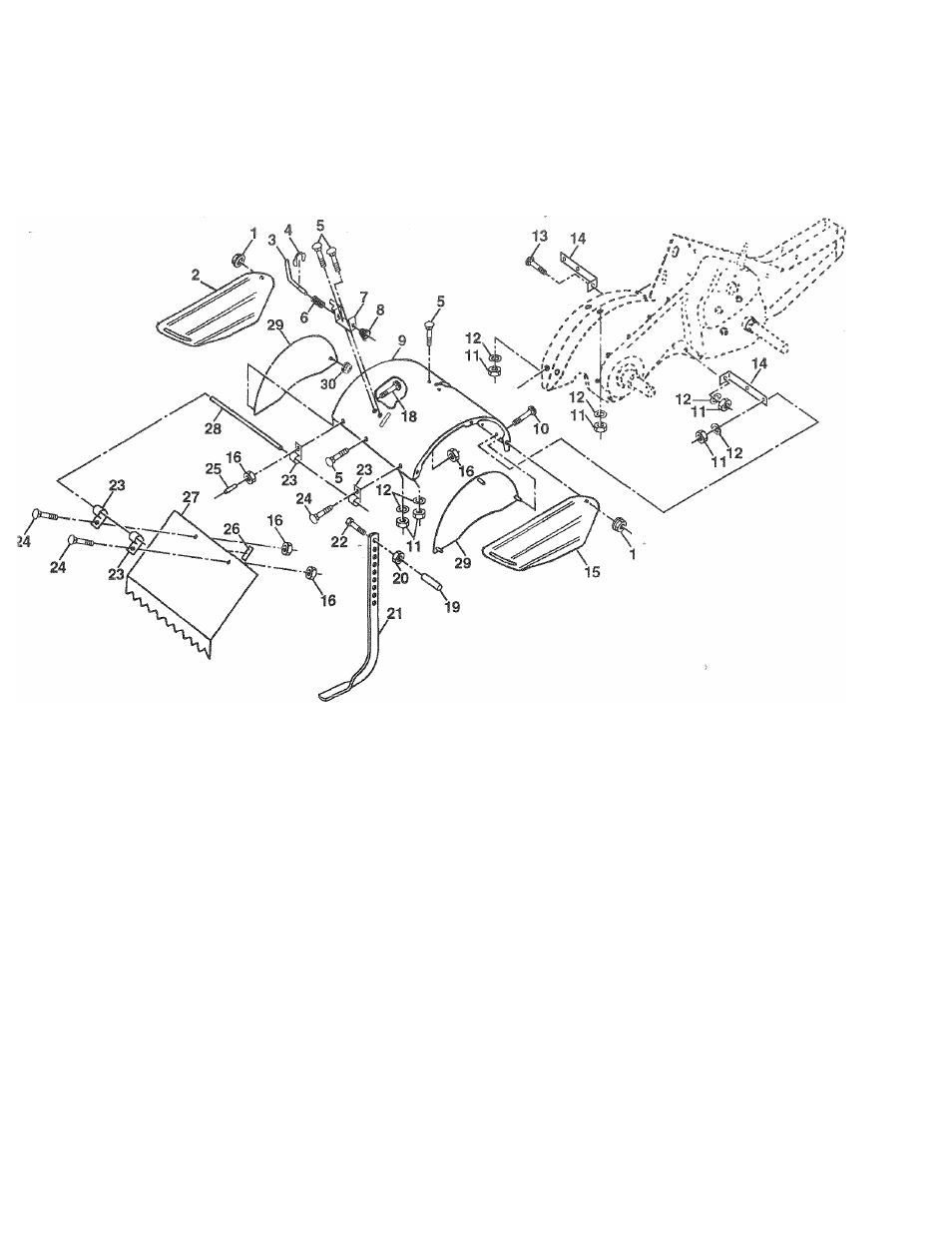

TINE-SHIELD
TILLER - - MODEL NUMBER CHDR500D
PART
W. NO.
1 98000129
2 161415X428
3 8393J
4 12000036
5 72140506
6 8394J
7 8392J
8 109230X
9 102326X428
10 72140508
11 73220500
12 10040500
13 72110510
14 124343X
15 161414X428
DESCRIPTION
Nut. Flange 5/16-18
Shield, Side, Outer L. H.
Pin, Stake, Depth
Ring, Klip
Bolt, Carriage 5/16-18 x 3/4 Gr 5
Spring
Bracket, Latch
Spring, Depth Stake
Shield, Tine
Bolt, Carriage 5/16-18 x 1
Nut, Hex 5/16-18
Washer, Lock 5/16
Bolt, Carriage 5/16-18 x 1-1/4
Bracket, Shield Tine
Shield, Side, Outer R.H.
KEY
NO. PART
NO.
DESCRIPTION
16 73510400 Nut, Keps Hex 1/4-20
18 72040410 Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
19 102701X Grip
20 73220600 Nut, Hex 3/8-16
21 102156X Stake, Depth
22 74930632 Bolt, Hex 3/8-16 X 2
23 4440J Hinge
24 72140404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
25 6712J Cap, Vinyl
26 109227X Pad, Idler
27 102695X428 Shield, Leveling
28 120588X Pin, Hinge
29 101C85X423 Shield, Side
NOTE: All component dimensions given in U.S. inches.
-1 inch = 25.4 mm
