REPAIR PARTS
.

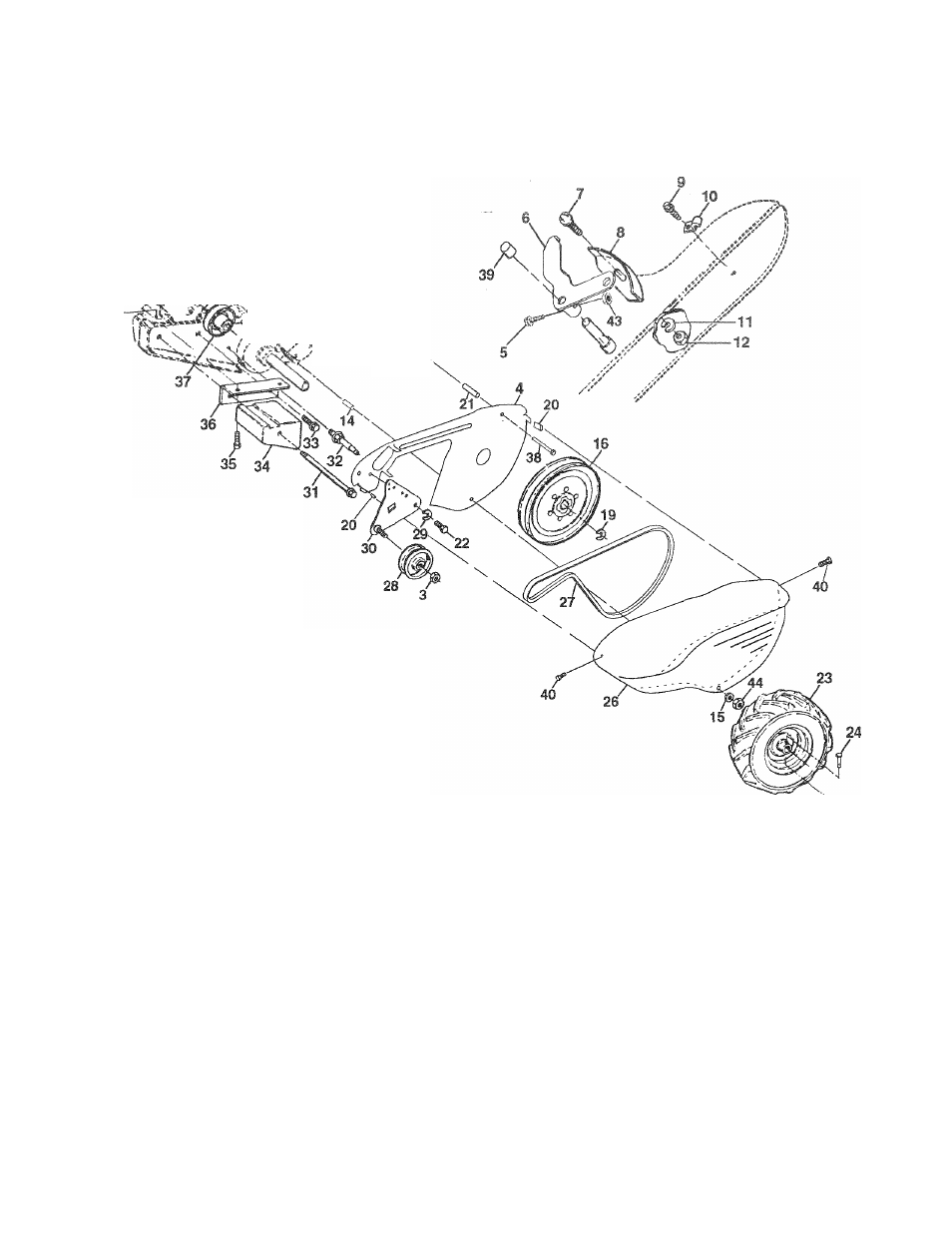

. TILLER - - MODEL NUMBER CHDR500D
-MAINFRAME, LEFT SIDE - - - - - -
3 !
;
i-
ii-.
T-- %-,-i^V
KEY
PART
NO.
NO.
DESCRIPTION
1
73510500
Nut, Keps 5/16-18
2
10040600
Washer, Lock 3/8
3
73220600
Nut, Hex 3/8-16
4
165710
Shield, Inner Belt Guard
5
154734
Screw, Shift Lever
6
110111X
Lever, Shift
7
72110404
Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8
8700J
Plate, Shift Indicator
9
86777
Screw, Hex, Washer Head, Slotted
#10-24
X
1/2
10
9484R
Clip
11
10040400
Washer, Lock 1/4
12
73220400
Nut, Hex 1/4-20
13
23230506
Screw, Set, Hex 5/16-18 x 3/8
14
156117
Spacer, Split 0.327 x 0.42 x 1.220
15
19111116
Washer 11/32 x 11/16 x 16 Ga.
16
145102
Sheave, Transmission
19
12000028
Ring, Retainer
20
165504
Nut, J Clip #8
21
110652X
Spacer, Split 0.327 x 0.42 x 2.09
22
74770508
Bolt, Fin Hex 5/16-24
X
1/2
23
102190X
Tire
150750
Rim
795R
Tire Valve
24
126875X
Rivet, Drilled
25
4497H
Clip, Hairpin
26
165501X428
Guard, Belt
27
132801
Belt, V
KEY
PART
NO.
NO.
DESCRIPTION
28
104679X
Pulley, Idler
29
12000032
Ring, Klip
30
159229
Bracket, Idler
31
102384X
Bolt, Hex 5/16-16
X
12
32
102141X
Shaft, Idler Arm
33
74760616
Bolt, Hex 3/8-16
X
1
34
102383X
Counterweight, L. H.
35
74760524
Bolt, Hex 5/16-18
X
1-1/2
36
10233IX
Bracket, Reinforcement, L. H.
37
130812
Sheave, Engine
38
74760544
Bolt, Fin Hex 5/16-18x2-3/4
39
140062
Cap, Plunger
40
165503
Screw Hex Wsh Hd #8-18 x 1/2
43
69180
Nut, Lock #10-24
44
73800500
Nut, Lock 5/16-18
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
