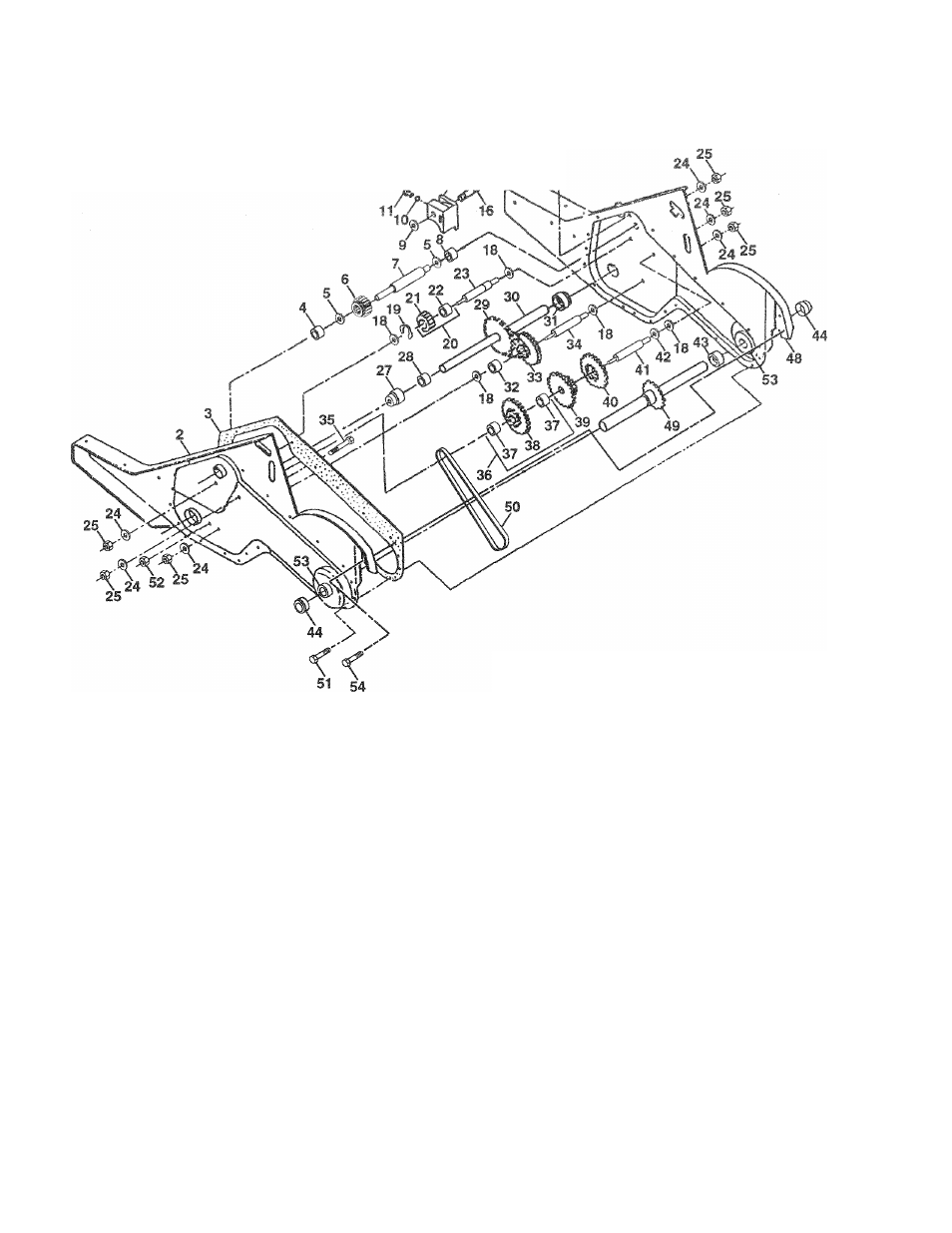

REPAIR PARTS
TILLER - - MODEL NUMBER CHDR500D
TRAMSMISSION
12. g
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 165728 Transmission Assembly
(includes Key Nos. 2-54)
2 165729 Gearcase, L.H. w/Bearing
(Includes Key No. 4)
3 161963 Gasket, Gearcase
4 5020J Bearing, Needle
5 1370H Washer, Thrust 5/8 x 1.10 x 1/f
6 137335 Pinion, Input
7 145101 Shaft, Input
8 4895H Bearing, Needle
9 154467 Washer, Seal
10 7392M Ball, Steel
11 100371K Spring, Shift, Fork
12 106160X 0-Ring
13 142145 Bracket, Shift
14 8353J Fork, Shift
15 12000039 Ring, Klip
16 154466 ■ Shaft, Shift
18 4358J Washer
19 12000040 Ring, Klip
20 102114X Gear, Assembly, Reverse Idler
(Includes Key Nos. 21 and 22)
21 102115X Gear, Reverse Idler
22 6803J Bearing, Needle
Shaft, Reverse Idler 23 102111X
24 10040700 Washer, Lock 7/16
25 73610700 Nut, Hex 7/16-20
27 143009
28 106390X
29 102134X
30 150737
31 143008
32 106388X
33 102121X
34 102112X
35 102101X
36 154355
24
Bearing, Shaft, Ground Drive L.H.
Spacer 0.765x 1.125x 1.23
Chain #35-50 Pitch
Ground Shaft Assembly
Bearing, Shaft, Ground Drive R.H.
Spacer 0.70 x 1.00 x 1.150
Sprocket and Gear Assembly
Shaft, Reduction (2nd)
Screw, Whiz, Lock 5/16-18 x 3-1/2
Sprocket Assembly w/Bearing
(Includes Key Nos. 37 and 38)
Bearing, Needle
Sprocket, Tine
Gear, Cluster, Red 1st & 2nd
Gear, Reverse
Shaft, Reduction (1st)
Washer, Thrust
Spacer 1.01 x 1.75 x 0.760
Seal, Asm. Oil
Gearcase, R.H. w/Bearing
(Includes Key No. 8)
Shaft, Tine
Chain, Roller #50-50 Pitch
Screw 1/4-20x1/2
Nut, Hex 5/16-18
Kit, Bearing, Tine Shaft
Screw 1/4-20 X 3/4
Grease, Plastilube #1
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
37 4422J
38 154356
39 105345X
40 105346X
41 8358J
42 4220R
43 106146X
44 155236
48 165732
49 132688
50 106147X
51 17720408
52 73220500
53 165140
54 17720412
- - 6066J
