ASSEMEtLY INSTRUCTIONS
IMPORTANT: This unit has been shipped without
gasoiine or oii in the engine. After assembly, refer
to separate engine manuai for proper fuei and
engine oii information.
Q
D-
E-
Q
FiGUREt
■K
H
M-
L-
Axie
Assembiy
Hex
UNPACKING
Remove the log splitter and loose parts from the car­
ton by cutting the corners of the carton. Make certain
all parts and literature have been removed from the
carton before the carton is discarded.
Loose Parts in Carton:
(1) Axle Assembly
(1) Tow Hitch Assembly
(1) Beam Stand
(1) Tow Hitch Chain
(1) Hardware Pack
(1) Wheel Bearing Pack (Includes 4 roller bearings,
2 grease seals and 2 hub caps)

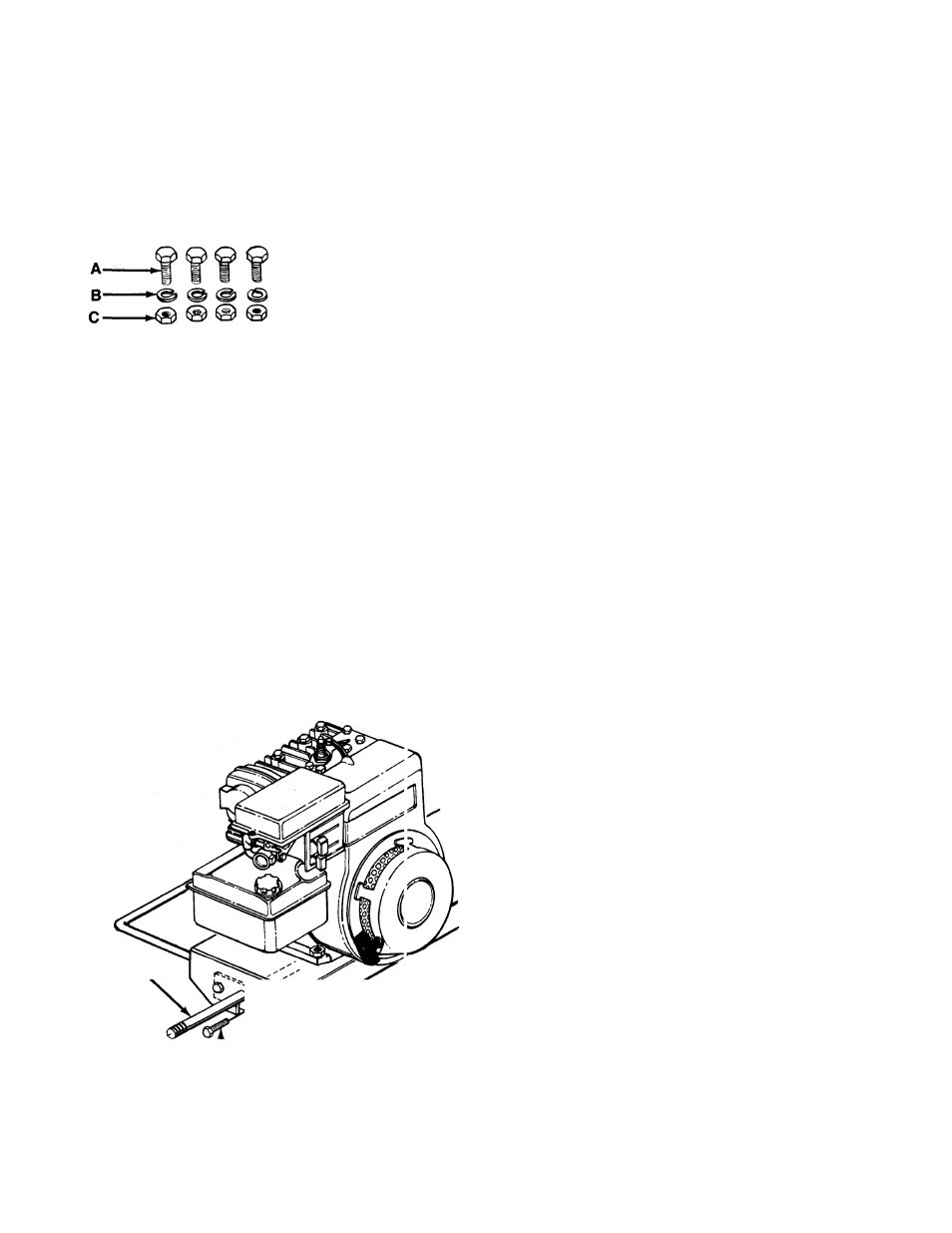

Contents of Hardware Pack (See Figure 1):
A
B
C
D
E
F
G
H
(4)
(5)
(4)
( 2 )
(2)
( 2 )
(1)
( 2 )
( 2 )
( 1 )
( 1 )
( 2 )
( 1 )
( 1 )
FIGURE 2.
1.
Ergine — 2.
Fíame
Assembly
3.
t
Lock
'^HexNjt
(C)
\ Washer
^ (B)
4.
Hex Bolts 3/8-24 x 1" Long (Fine Thread)
Lock Washers 3/8" I.D.
Hex Nuts 3/8-24 (Fine) Thread
Spacers 3/4" I.D. x 1-1/2" Long
Castle Nuts 3/4-16 Thread
Cotter Pins
Hex Bolt 3/8-16 X 4-1/2" Long (Coarse Thread)
Flat Washers 3/8" I.D.
Spacers 3/8" I.D. x 5/8" Long
Hex Nut 3/8-16 (Coarse) Thread
Hex Bolt 3/8-16
X 3-1/4" Long (Coarse Thread)
Spacers 3/8" I.D. x 2" Long
Hex Lock Nut 3/8-16 (Coarse Thread)
Automotive Grease (not shown)
Tools Required for Assembly
(2) 9/16" Wrenches*
Flat Blade Screwdriver
Adjustable Wrenches
Pair of Pliers
Soft Hammer or Mallet
* Adjustable Wrenches may be used.
Other Materials Required for Assembly
Engine Oil
Unleaded Gasoline
Approximately 3 Gallons of Dexron II Automatic
Transmission Fluid
ATTACHING THE AXLE
Block up the engine frame assembly.
Place the axle assembly in position inside the
engine frame assembly as shown in figure 2.
Secure with 1" long fine thread hex bolts (A), four
lock washers (B) and fine thread hex nuts (C),
using two 9/16" wrenches. Tighten securely.
( 1 )
( 2 )
( 1 )
(1)
ends of the axles.
