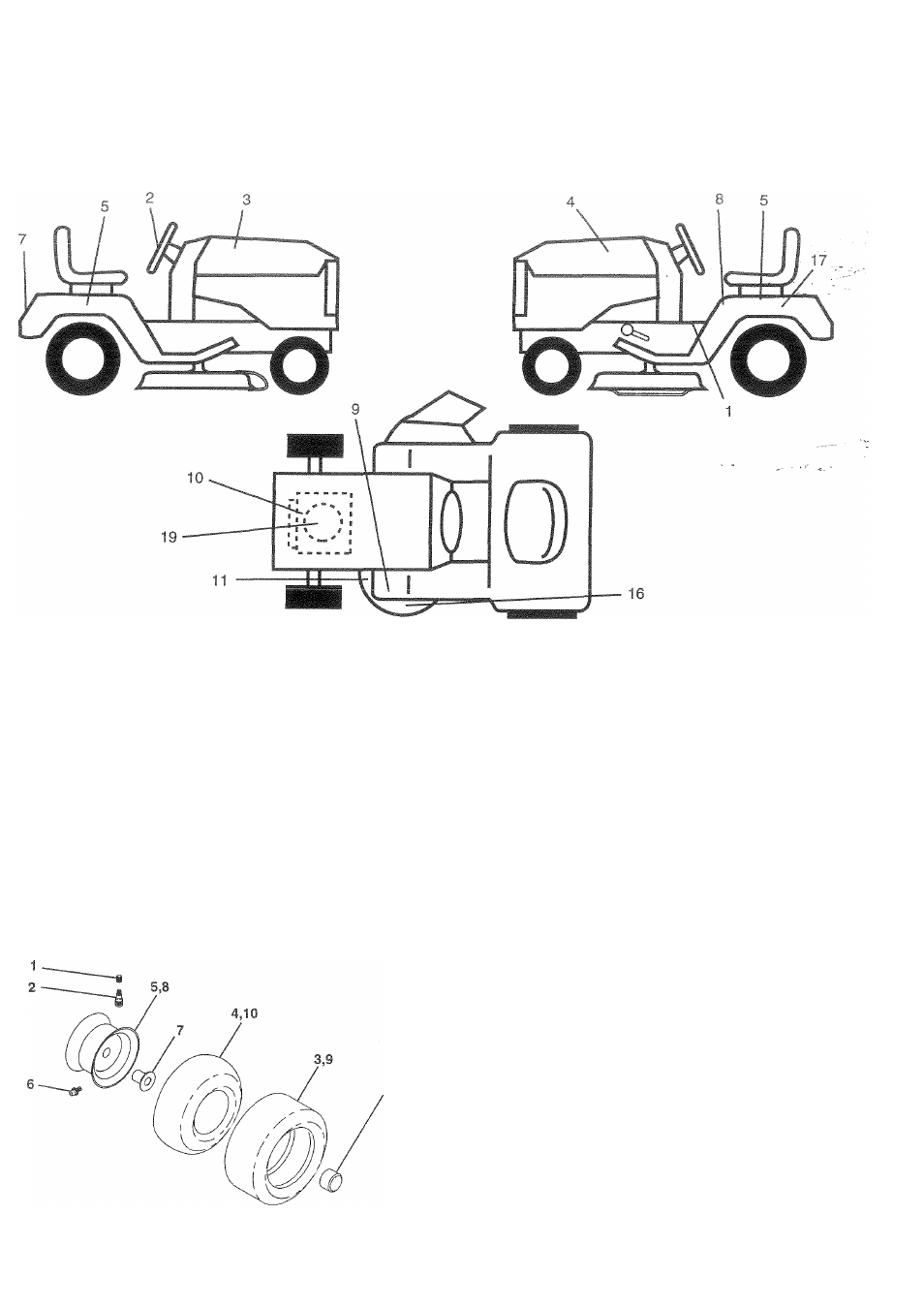

REPAIR PARTS
DECALS
- MODEL NUMBER HD14542A
KEY PART KEY PART
NO. NO. DESCRIPTION m. NO.
1 158271 Decal Saddle Inst. Oper Eng/Sp P/L 19 166221
2 158168 Decal Steering Wheel Insert 138311
3 158037 Decal Hood RH 166120
4 158038 Decal Hood LH 166121
5 166265 Decal Fender Sd Lawn Available acce:
7 158166 Decal Fender Logo LBD48
8 157141 Decal Caution Fender Eng/Sp LSB42
9 141897 Decal Clutch/brake Eng/Sp LC05
10 165352 Decal HP Engine C42
11 160396 Decal V-Belt Sch LA018
16 158169 Decal Mulch Bag Poulan MK420
17 145005 Decal Btry Dngr/Psn P/L Sym
DESCRIPTION
Decal Replacement Engine
Decal Handle Lft Height Adjust
Manual Owner's English
Manual Owner's Spanish
3S not included with tractor:
42" Snow Blade
42" Snow Blower
Wheel Weights
Grass Catcher
Tire Chains
Mulch Kit w/Blades
WHEELS AND TIRES
11
KEY PART
NO. NO.
1 59192
2 65139
3 106222X
4 59904
5
106732X427
6 278H
7 9040H
8
106108X427
9 106268X
10 7152J
11 104757X
144334
DESCRIPTION
Cap Valve Tire
Stem Valve
Tire FTs 1 5 X 6 0 - 6 Service
Tube Front (Service Item Only)
Rim Asm 6
“
front White Service
Fitting Grease (Front Wheel Only) '
Bearing Flange (Front Wheel Only)
Rim Asm 8" rear White Service
Tire R Ts 18 X 9.5-8 C Service
Tube Rear (Service Item Only)
Cap Axle BIk 1 50 X 1 00
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
