C:
Iw9
ro ■¥l
SFRV1CF -4ND M x n m m m i
A,CK ADJUST D1EU1 (S q &
)r
Olii
pari
to on page
d, you will n
level ground or
f inflated (See
of this manual).
^pOï s y dd'US'
Adjust the mower while tra
driveway. Make sure tii
“PRODUCT SPECIFICATI
• «- s t 0 ^ u ri!
your mower,

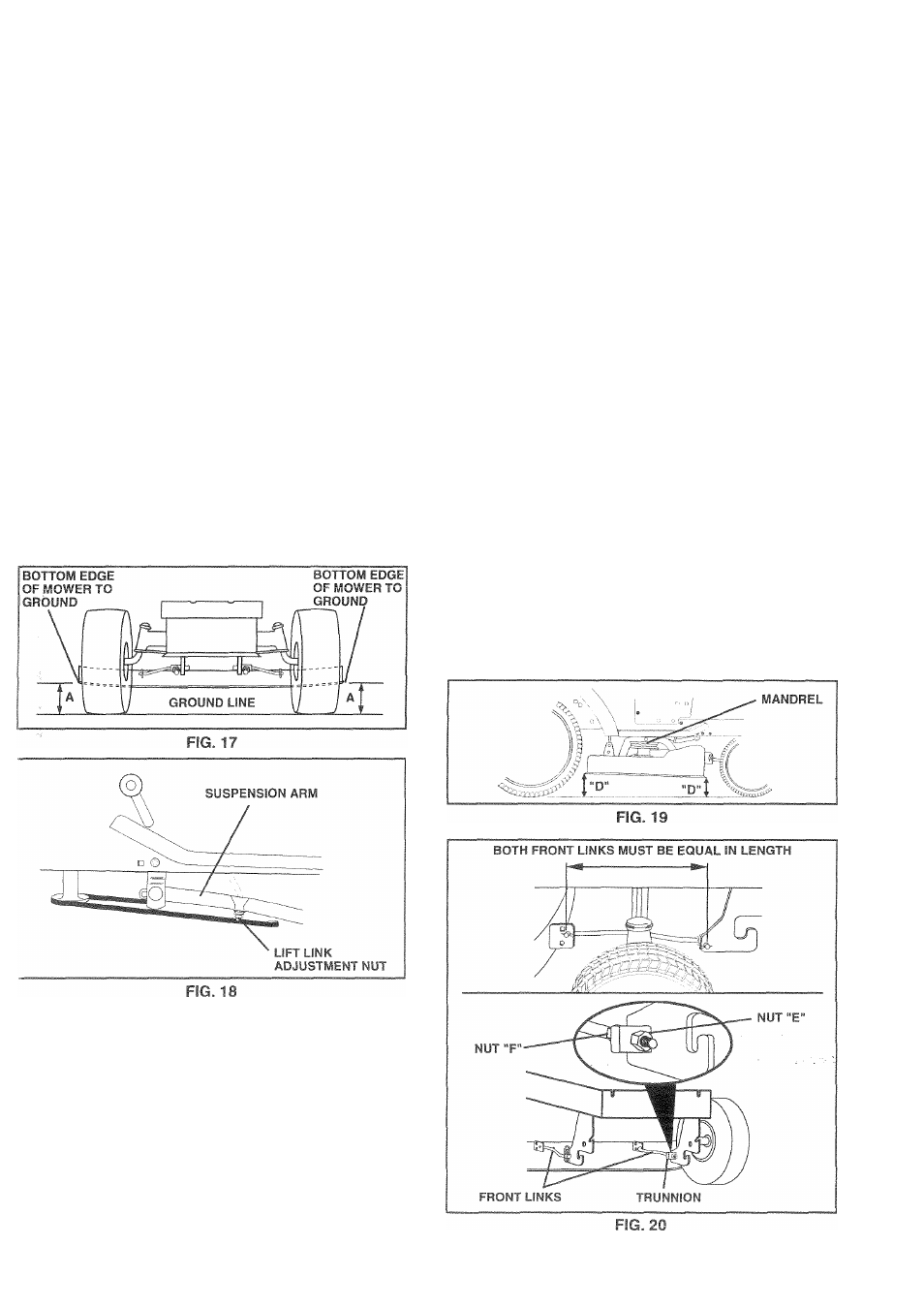

SIDE-TO-SIDE ADJUSTMENT (See Figs. 17 and 18)
e Raise mower to its highest position.
» At the midpoint of both sides of mower, measure height
from bottom edge of mower to ground. Distance “A” on
both sides of mower should be the same or within 1 /4"
of each other.
• if adjustment is necessary, make adjustment on one
side of mower only.
» To raise one side of mower, tighten lift link adjustment
nut on that side.
• To lower one side of mower, loosen iift link adjustment
nut on that side.
NOTE; Three full turns of adjustment nut will change
mower height about 1/8".
» Recheck measurements after adjusting.
FRONT -TO-BACr
IMPORTANT: DECK MUST B
THE FOLLOWING FRONT-Tt
NECESSARY, BE SURE TO AC
EQUALLY SO MOWER Wl
SIDE.
LEVE
-BACH
ÎIDEto'
\DJUS'
TH FR(
LEVEL
Ì snd 20
-SIDE, II
VENT !i
IT LlNKf
5IDE-TO
f i tot.', :.i 1 'urii.ifj -ijit i H V . icutinc
shoijiiJ hi- ddjU'ieu so that the front i - jpp-« > irrofei / 1 /fc" to
u2" Kmti thai. tht. it-ii wntti the ti.r' (t- is iti
posmori.
Check adjustment on right side of tractor. Measure dis­
tance “D” directly in front and behind the mandrel at bottom
edge of mower housing as shown.
• Before making any necessary adjustments, check that
both front links are equal in length. Both links should be
approximately 10-3/8".
• If links are not equal in length, adjust one link to same ‘
length as other link. - - .
• To lower front of mower loosen nut “E” on both front
links an equal number of turns.
• When distance “D” is 1/8" to 1/2" lower at front than
rear, tighten nuts “F” against trunnion on both front
links.
• To raise front of mower, loosen nut “F” from trunnion on
both front links. Tighten nut “E” on both front links an
equal number of turns.
• When distance “D” is 1/8" to 1/2" lower at front than
rear, tighten nut “F” against trunnion on both front links.
• Recheck side-to-side adjustment.
