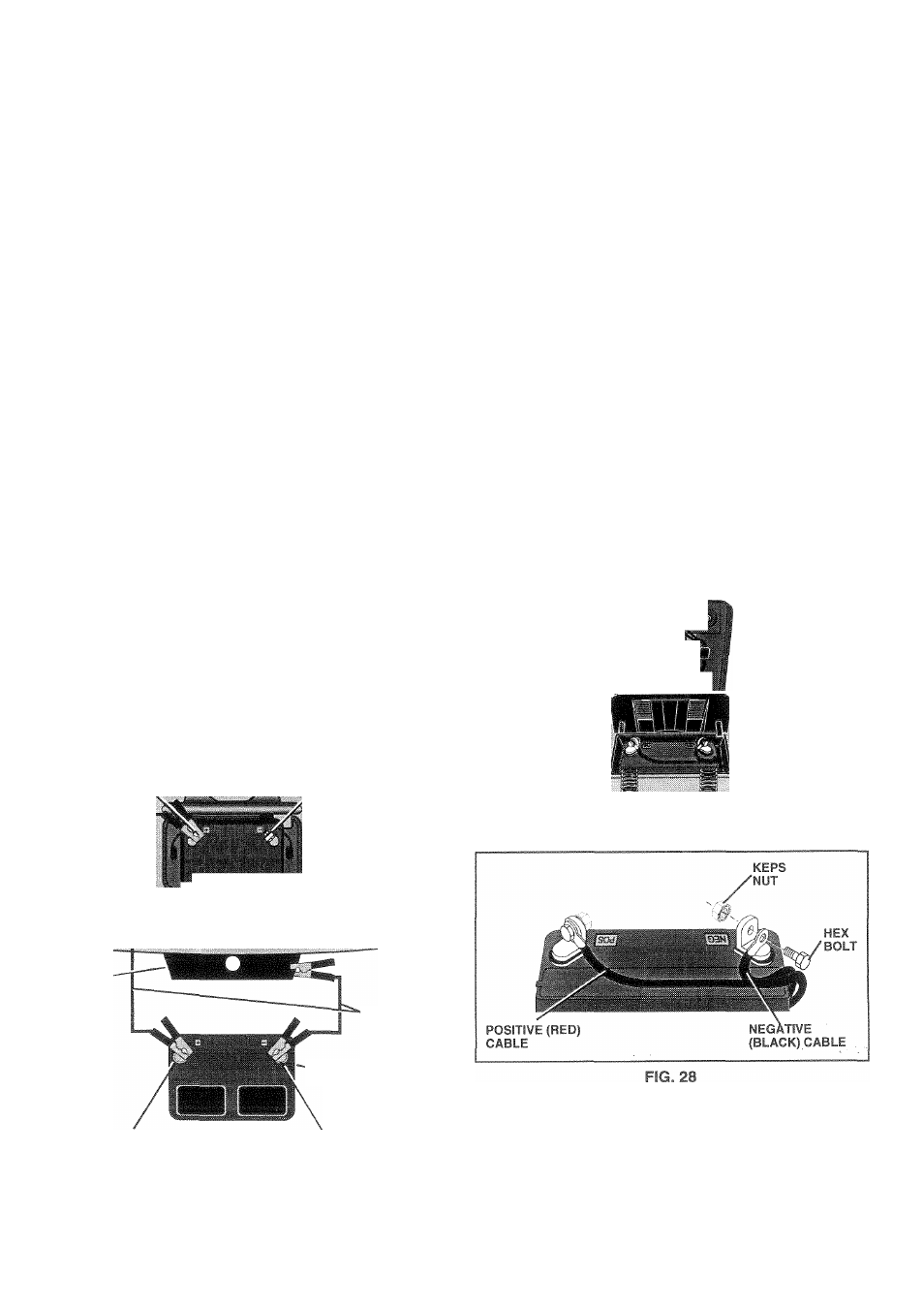

(See Fig. 26)

CAUTION; Lead-acid batteries gener

ate explosive gases. Keep sparks, flame

and

smoking

materials away from bat

teries. Always wear eye protection
when around batteries.

If your battery is too weak to start the engine, it should be
recharged. (See “BATTERY" in the CUSTOMER RESPON
SIBILITIES section of this manual).

If “jumper cables” are used for emergency starting, follow

this procedure;

IMPORTANT;

YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER
VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

•

Connect each end of the RED cable to the POSITIVE
(+) terminal of each battery, taking care not to short
against chassis.

•

Connect one end of the BLACK cable to the NEGA

TIVE (-) terminal of fully charged battery.

•

Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

•

BLACK cable first from chassis and then from the fully

charged battery.

•

RED cable last from both batteries.

POSITIVE TERMINAL

NEGATIVE TERMINAL

CHASSIS-

CABLES

POSITIVE TERMINAL

~-_CHARGED

BATTERY

NEGATIVE TERMINAL

REPLAa^« nAi

-IMS. 2/ arid 28)

CAUTION: Do

not

short battery termi

nals by allowing a wrench or any other

object to contact both terminals

at thi

same time. Before connecting battery
remove metal bracelets, wristwatch
bands,rings,etc.

Positive terminal must be connected

first to prevent sparking from acciden
tal grounding.

Lift seat pan to raised position and open battery box

door.

Disconnect BLACK battery cable first then RED battery

cable and carefully remove battery from tractor.

Install new battery with terminals in same position,as.

old battery.

First connect RED battery cable to positive (+) terminal

with hex bolt and keps nut as shown, i ighten securely.

Connect BLACK grounding cable to negative (-) termi
nal with remaining hex bolt and keps nut. Tighten
securely.

Close battery box door.

SEAT PAN.

BATTERY _
BOX DOOR

• , /VAW. R.S . „ ,h« S

HHN

FIG. 27

FIG. 26
