REPAIR PARTS
, _ f c r . n - - .
iUNLLr
t ' U . * - 1 / A

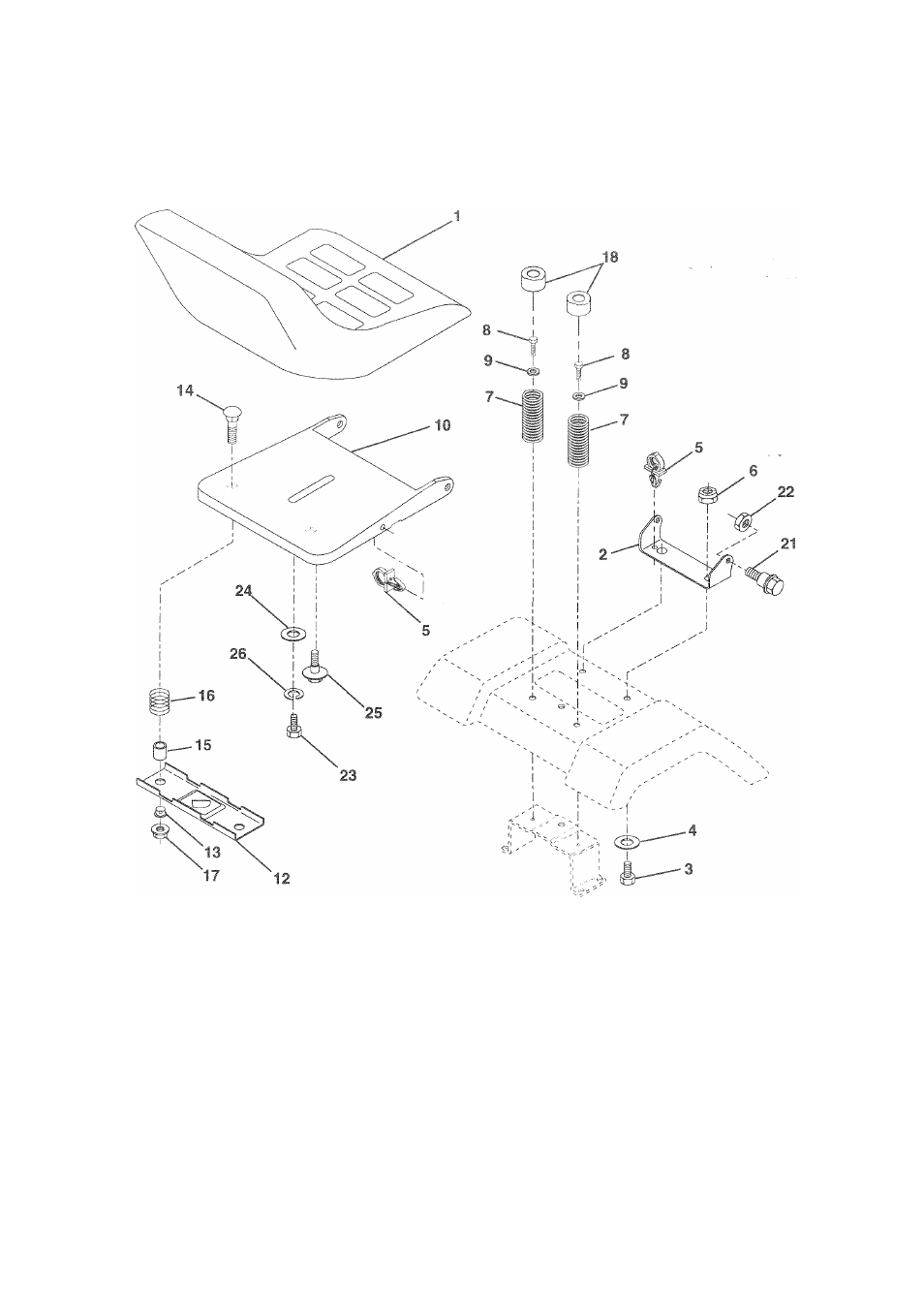

SEAT ASSEMBLY
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 140116 Seat 2300/1316 BIk/bIk AYPPL 15 134300 Spacer Split 28x 96 Yel Zinc
2 140551 Bracket Pivot Seat 8 720 16 121250X Spring Cprsn 1 27 BIk Pnt
3 74760616 Bolt Fin Hex 3/8-16 Unc x 1 17 123976X Nut Lock 1/4 Lge Fig Gr 5 Zinc
4 19131610 Washer Flat 13/32 x 1 x 10 Ga 18 124238X Cap Spring Seat
5 145006 Clip Push In Hinged 21 153236 Bolt Shoulder 5/16-18 Unc BIkz
6 73800600 Nut Crownlock 3/8-16 Unc 22 73680500 Nut Crown Lock 5/16-18 '
7 124181X Spring Seat Cprsn 2 250 BIk Zi 23 74780814 Bolt Fin Hex 1/2-13 X 7/8 Gr 5
8 17490616 Screw Thdrol 3/8-16 X 1 Ty-tt 24 19171912 Washer 17/32 X 1 -3/16 X 12 Ga
9 19131614 Washer 13/32 X 1 X 14Ga 25 127018X Bolt Shoulder 5/16-18X62
10 155925 Pan Seat 26 10040800 Washer Lock Hvy Hid Spr 1/2
12 121246X Bracket Mounting Switch
13 121248X Bushing Snap BIk NvI 50 Id NOTE: All component dimensions given in U.S. inchi
14 72050412 Bolt Rdhd Sht Nk 1/4-20x1-1/2 1 inch = 25.4 mm
38
