13. Place the rectangular rubber throttle lever
spacer over the threaded end of the screw (turn
this spacer so its “long” end points to the rear).
14. Turn the rectangular nut so that the projec­
tions on one side face
up.
Insert the rectangular
nut into the slot in the throttle lever.
15. Use two fingers to prevent the rectangular
nut from falling out and position the Engine
Throttle Lever assembly on the end of the screw.
16. Hold the Throttle Lever Assembly in place.
Use your free hand to start the screw into the
rectangular nut. You may have to move the nut
back and forth slightly until it aligns with the
screw. After you’ve started the screw, use a
Phillips head screwdriver to firmly tighten it.
17. Install one end of the long, loose wire on the
push-on terminal of the On/Off Switch and con-

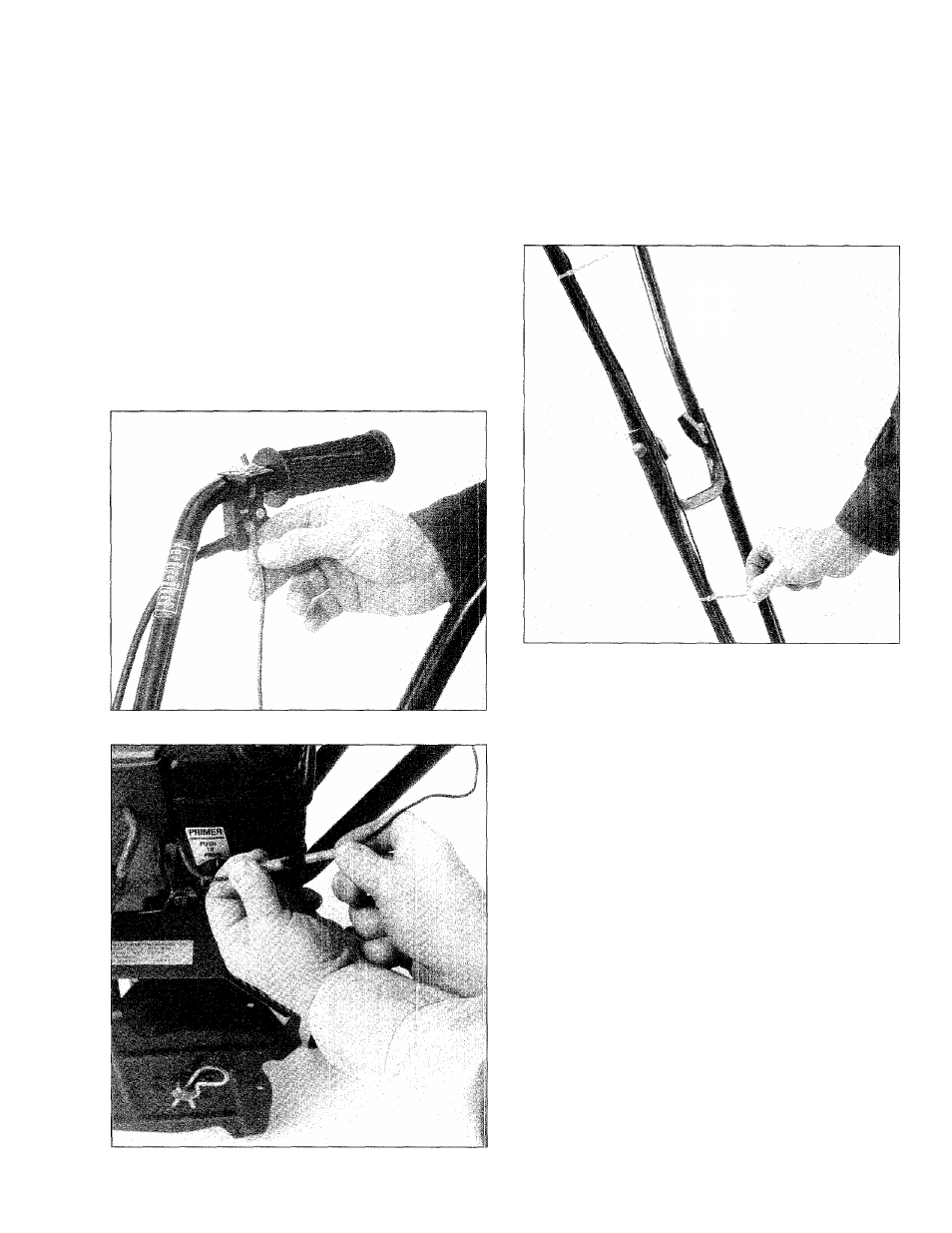

Photo 7: Attach On/Off Wire to On/Off Switch.
Photo 8: Attach other end of On/Off Wire to the
engine shut-off wire down below.
nect the other end to the engine ground wire.
18. Secure the throttle cable and the Engine
On/Off Switch wire to both the lower and the
upper handlebars with the plastic ties. The ser­
rated side of the ties should be on the inside
when you loop the tie around the handlebar,
wire, and throttle cable. Tighten the tie by pulling
on its loose end. Snip off any excess tie.
Photo 9: Install Plastic Ties to Keep the Cables
Next to the Handlebars.
11
