REPAIR PARTS

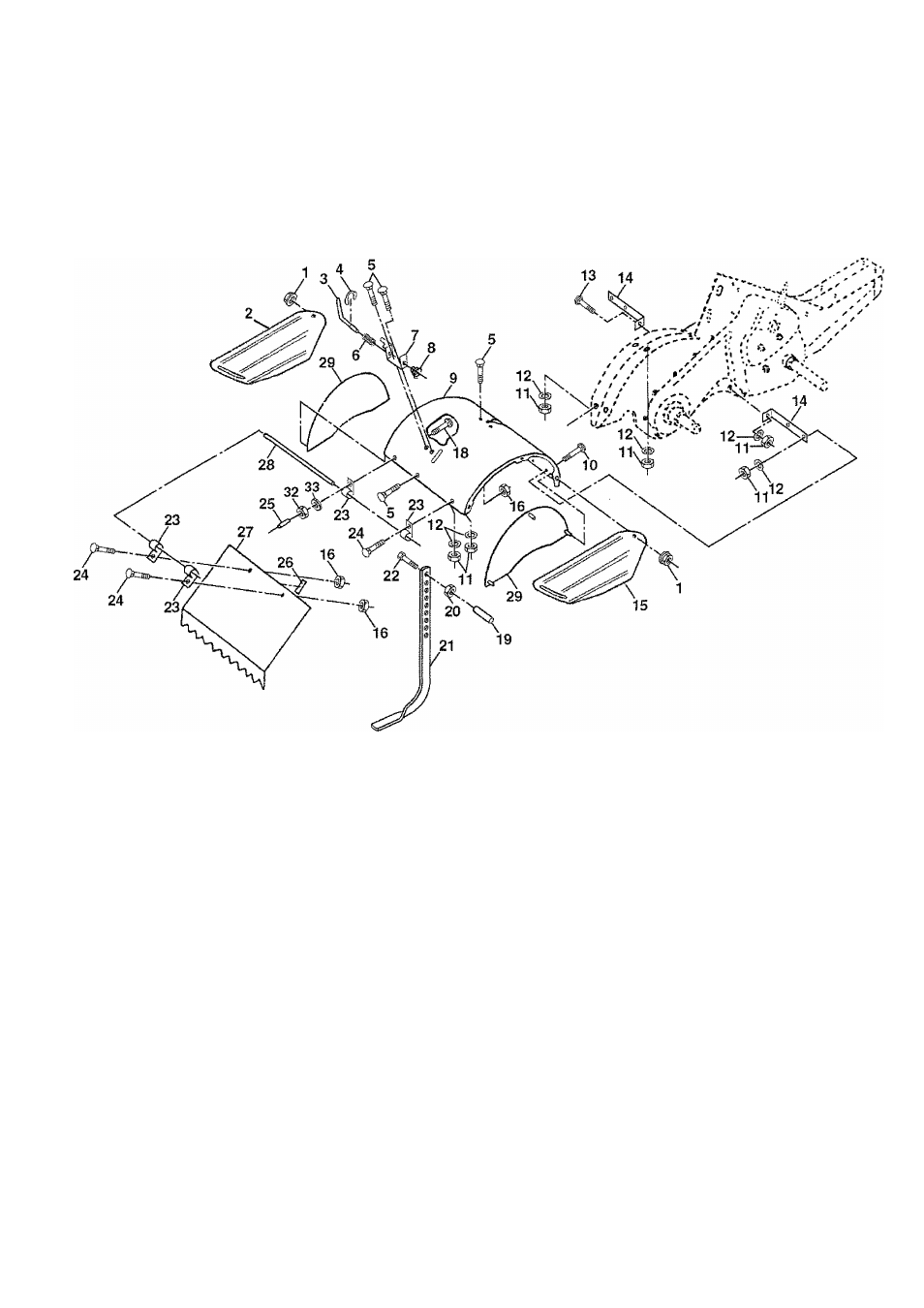

TINE SHIELD
TILLER - - MODEL NUMBER HDR500L
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
73900500
Nut, Flange 5/16-18
18
72040410
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
2
161415X428
Shield, Side, Outer L. H.
19
102701X
Grip
3
8393J
Pin, Stake, Depth
20
73220600
Nut, Hex 3/8-16
4
12000035
Ring, Klip
21
102156X
Stake, Depth
5
180847
Bolt, Carriage 5/16-18x3/4
22
74930632
Bolt, Hex 3/8-16x2
6
8394J
Spring
23
4440J
Hinge
7
8392J
Bracket, Latch
24
72140404
Bolt, Carriage 1/4-20 x 1/2 Gr, 5
8
109230X
Spring, Depth Stake
25
6712J
Cap, Vinyl
9
102326X428
Shield, Tine
26
109227X
Pad, idler
10
72140508
Bolt 5/16-18x1
27
102695X428 Shield, Leveling
11
73220500
Nut, Hex 5/16-18
28
120588X
Pin, Hinge
12
10040500
Washer, Lock 5/16
29
104085X428 Shield, Side
13
72110510
Bolt, Carriage 5/16-18x1-1/4
32
73220400
Nut Fin Hex 1/4-20 UNC
14
124343X
Bracket, Shield Tine
33
10040400
Washer Lock Hvy Helical 1/4
15
161414X428 Shield, Side, Outer R.H.
NOTE;
Ail component dimensions given in U.S. inches.
16
73900400
Nut, Hex Flange 1/4-20 UNC
1 inch = 25.4 mm
25
