REPAIR PARTS

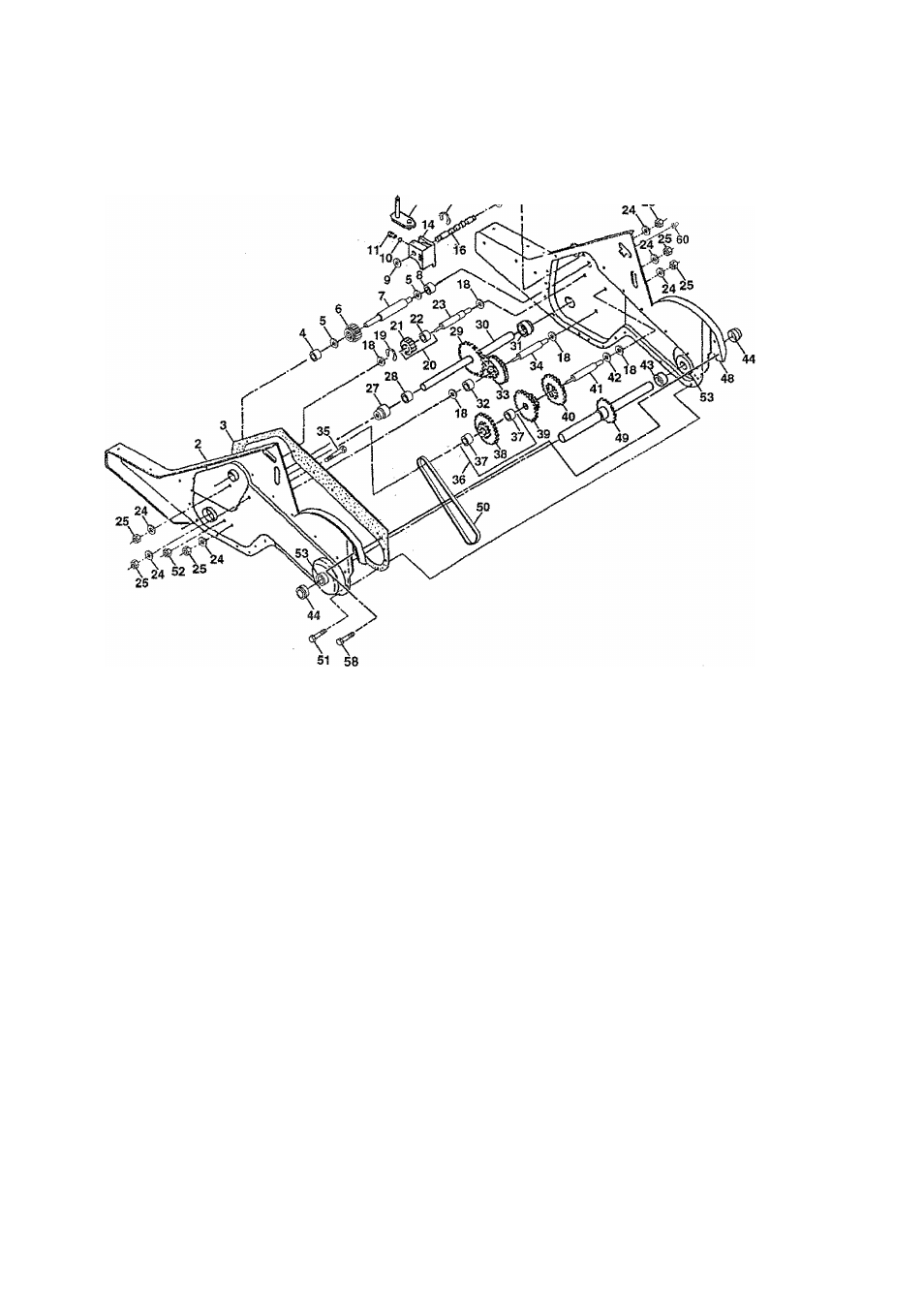

TRANSMISSION
TILLER - - MODEL NUMBER HDR500L
12v 9
^ 13
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 180677 Transmission Assembly {Includes 29 102134X Chain #35-50 Pitch
Key Nos. 2-53) 30 150737 Ground Shaft Assembly
2 180627 Gearcase, LH. w/Bearing (includes 31 143008 Bearing, Shaft, Ground Drive
Key No. 4) 32 106388X Spacer 0.70x 1.00x 1.150
3 161963 Gasket, Gearcase 33 102121X Sprocket and Gear Assembly
4 5020J Bearing, Needle 34 102112X Shaft, Reduction (2nd)
5 1370H Washer, Thrust 5/8 x 1.10 x 1/32 35 102101X Screw, Whiz, Lock 5/16-18 x 3-1/2
6 137335 Pinion, Input 36 154355 Sprocket Assembly w/Bearing (In­
7 145101 Shaft, input cludes Key Nos. 37 and 38)
8 4895H Bearing, Needle 37 4422J Bearing, Needle
9 154467 Washer, Seal 38 154356 Sprocket, Tine
10 7392M Ball, Steel 39 105345X Gear, Cluster, Red 1st & 2nd
11 100371K Spring, Shift, Fork 40 105346X Gear, Reverse
12 106160X 0-Ring 41 8358J Shaft, Reduction (1st)
13 142145 Arm,. Shift 42 4220R Washer, Thrust
14 8353J Fork, Shift 43 106146X Spacer 1.01 x 1.75x0.760
15 12000039 Ring, Klip 44 155236 Seal Asm, Oil
16 154466 Shaft, Shift 48 180631 Gearcase, R.H. w/Bearing (In­
18 4358J Washer cludes Key No. 8)
19 12000040 Ring, Klip 49 132688 Shaft, Tine
20 102114X Gear, Assembly, Reverse Idler {In­ 50 106147X Chain, Roller #50-50 Pitch
cludes Key Nos. 21 and 22) 51 17720408 Screw 1/4-20x1/2
21 102115X Gear, Reverse Idler 52 73220500 Nut, Hex 5/16-18
22 6803J Bearing, Needle 53 165140 Kit, Bearing, Tine Shaft
23 102111X Shaft, Reverse Idler 58 179520 Bolt Shoulder 1/4-20 Unc x .875
24 10040700 Washer, Lock 7/16 60 6855M Fitting Grease
25 73610700 Nut, Hex 7/16-20 6066J Grease, Piastilube #1
27 143009 Bearing, Shaft, Ground Drive
NOTE : All comoonent dimensions given in U.S. inches.
28 106390X Spacer 0.765x 1.125x 1.23
1 inch =:25.4 mm
