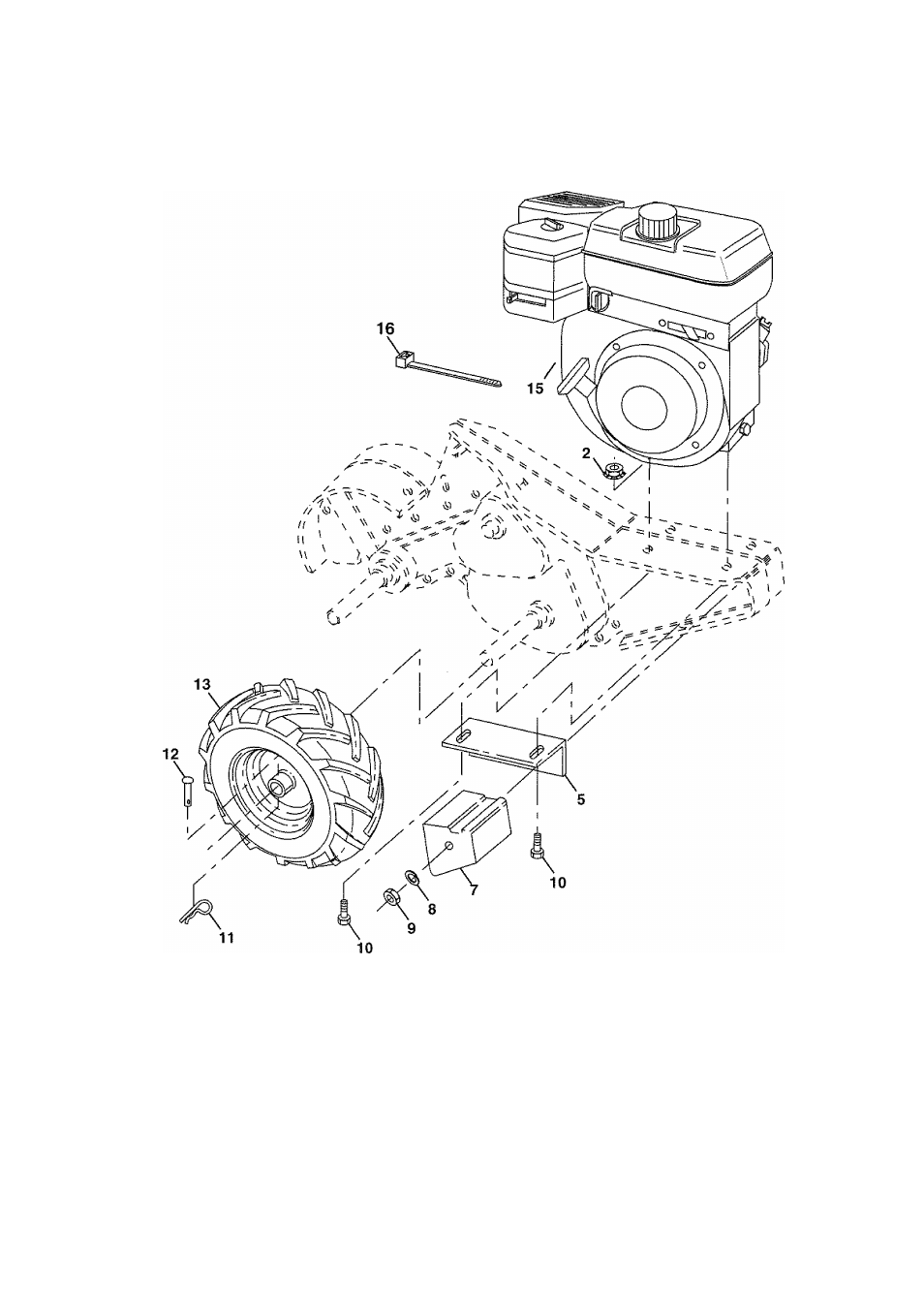

MAINFRAME, RIGHT SIDE

REPAIR PARTS

TiLLER - - MODEL NUMBER HDR500L

KEY

PART

KEY

PART

NO.

NO.

DESCRIPTION

NO.

NO.

DESCRIPTION

2

73970500

Nut, Hex Flange

13

102190X

Tire

5

102332X

Bracket, Reinforcement

183122X624

Rim

7

102173X

Counterweight, R.H.

795R

Tire Vai ve

8

10040600

Washer, Lock 3/8

15

Engine, Briggs & Stratton Model No.

9

73220600

Nut, Hex 3/8-16

120402 {Order parts from engine

10

74760524

Bolt, Hex 5/16-18x1-1/2

Manufacturer)

11

4497H

Clip, Hairpin

16

7192J

Tie Cable

12

126875X

Rivet, Drilled

NOTE : Ail component dimensions given in U.S. inches.

23
