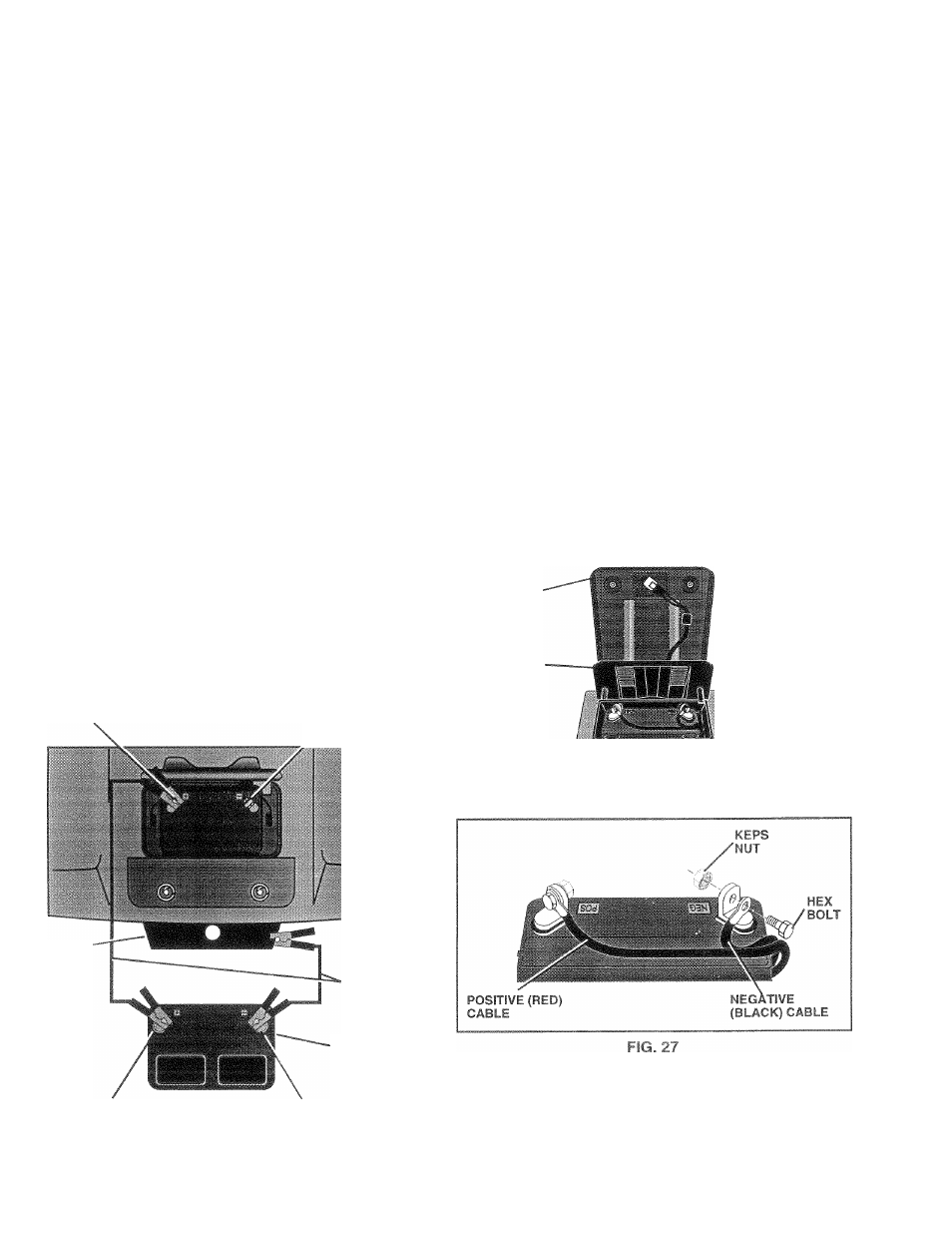

F;.i fLRY REPLACINi F'. s T B E l3f:C rig,.i, ai> ait»* . '•

CAUTIGH; Lead-acid batteries gener-

ateexpiosive gases Keep sparks, flame
and smoking materiais away from bat
teries. Always wear eye protection
when around batteries.

if ycur battery is too weak to start the engine, it should be
recharged. (See 'BATTERY" in the CUSTOMER RESPON-
SIBILltlES section of this mariuali.

It “jumper cables" are used for erriergency starting, follow

this procedure;

IMPORTANT: YOUR TRACTOR IS EQUIPPED WiTH A 12
VOLT rJEGATlVE GROUNDED SYSTEM, THE OTHER
VEHICLE MUST

ALSO

BE A

12 VOLT

NEGATIVE

GROUNDED SYSTEM DO NOT USE YOUR TRACTOR
BATTERY TO START OTHER VEHICLES,

TO ATTACH JUMPER CABLES -

Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

Connect one end of the BLACK cable to the NEGA

TIVE (-) terminal of fully charged battery.

Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully

charged battery.

RED cable last from both batteries.

POSITIVE TERMINAL

NEGATIVE TERMINAL

CHASSIS-

CABLES

CHARGED
BATTERY

POSITIVE TERMINAL

NEGATIVE TERMINAL

CAtlTIOli,. [ic-i fiot eryort battery termi
nals by allowing a wrertch or any other

objecfto ecnlact both terminals at the
.same time. Before connecting battery,
remove metal bracelets, wristwatcfi
bands/ingSjStc.

Positive terminal must be connected

first to prevent sparking from acciden
tal grounding.

Lift seat pan

raised position and open battery bo;<

door.

Disconnect BLACK battery cable first then RED battery
cable and carefully remove battery from tractor.

Install new battery with termir.aLs in same position as

old battery.

First connect RED batteiy cable to positive (+) terminal

with hex bolt and keps nut as shown. Tighten securely.

Connect BLACK grounding cable to negative (-) termi
nal with remaining hex bolt and keps nut. Tighten
securely.

Close battery box door.

SEAT PAN

BATTERY

BOX DOOR

FIG. 26

FIG. 25
