FRONT WHEEL ГОЕ IN/CAMBER
The front wheel toe-in and camber are not adjustable on
your tractor. If damage has occurred to affect the front
wheel toe-in or camber, contact your nearest authorized
service center/department.
TRANSAXLE SHIFTER LINKAGE AND AD-
JUSTMENT (See Figs. 23A and 23B)
The transaxle should be in neutral when the gear shift lever
is in the neutral (N) (lock gate) position. The adjustment is
preset at the factory; however, if adjustment is needed,
proceed as follows:
• Make sure transaxle is in neutral (N).
® Loosen two locknuts on tie rod.
• Turn center rod until gearshift lever falls into neutral
lock gate on fender console.
• Tighten locknuts securely.

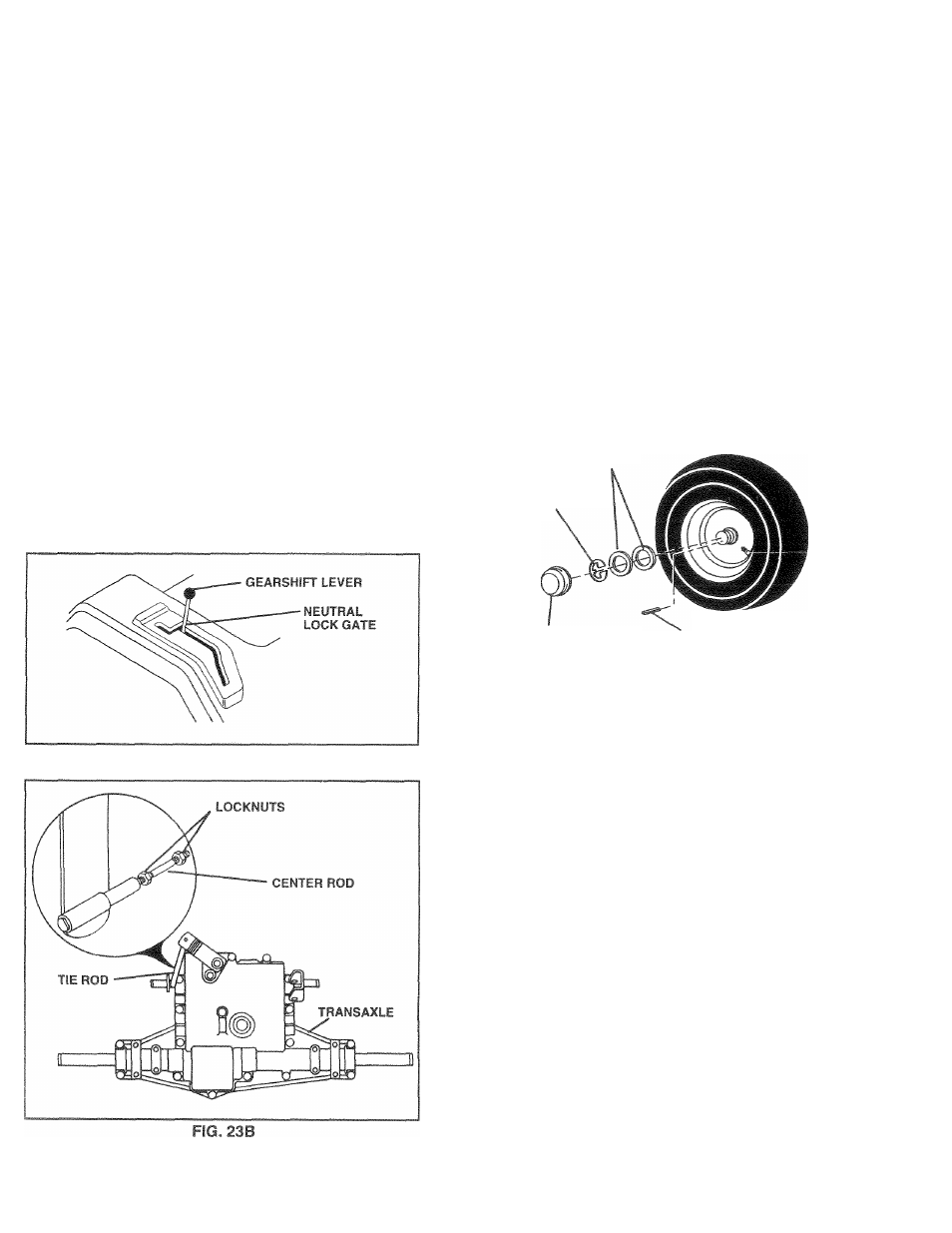

FIG. 23A
Til flFMtoTt ^
(See Fio, 241
® Block up axle secure'
t = < U > i - I
рчч)
• Repair lire and reaaSferrto
FOR REPAII
I f -I
iar whei
i n d W i 8rS 10 BIfOV/
re key - Do
NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer. Tire sealant also prevents tire dry rot and
corrosion.
WASHERS
RETAINING
RING
AXLE COVER
SQUARE KEY
(REAR WHEEL ONLY)
