REPAIR PARTS

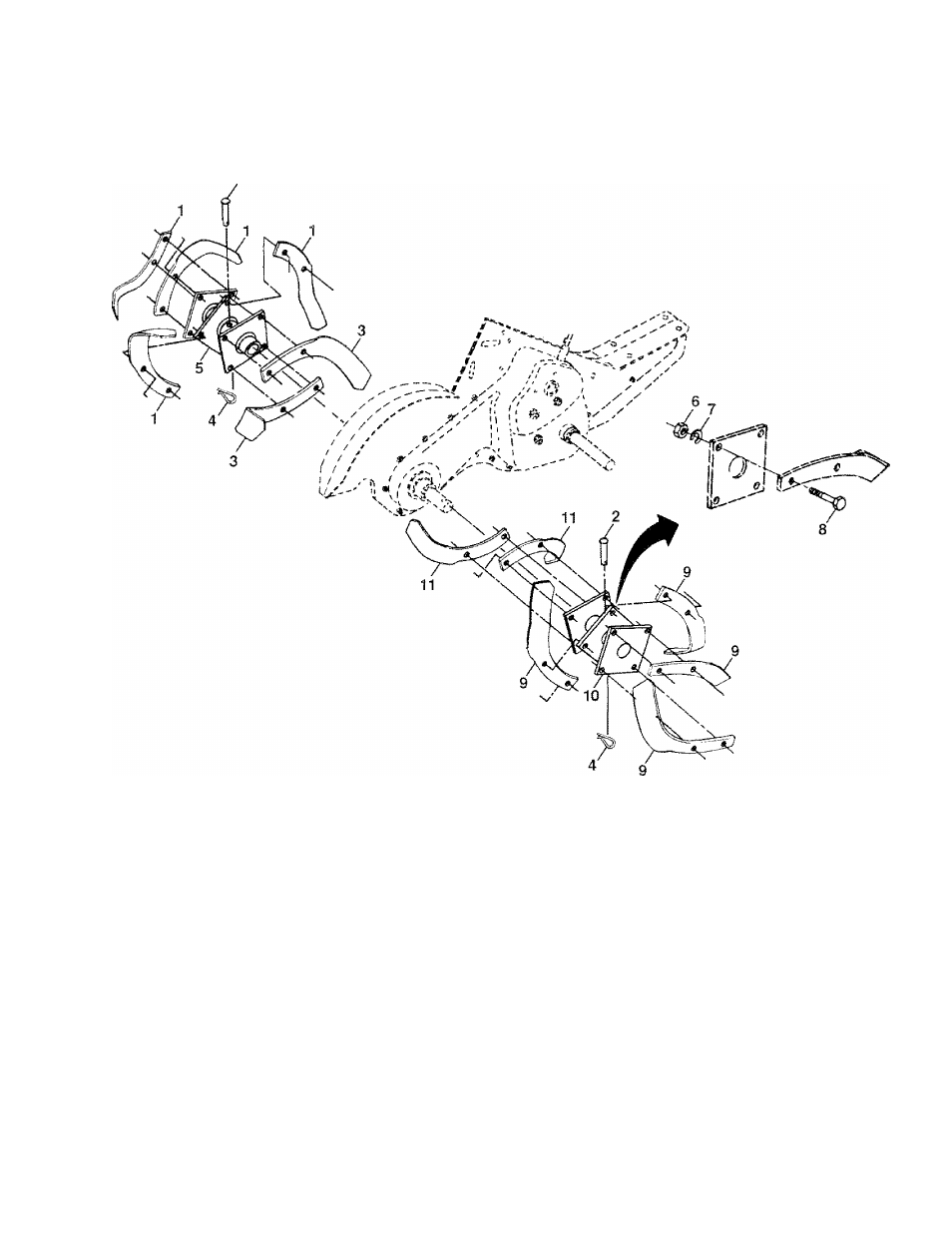

TINE ASSEMBLY

TILLER - - MODEL NUMBER HDR500K

KEY
NO.

PART
NO.

DESCRIPTION

KEY

NO.

PART
NO.

DESCRIPTION

1

4459J

Tine, Outer, LH.

8

74610616

Bolt, Hex 3/8-24 x 1

2

132673

Clevis Pin

9

4460J

Tine, Outer, R.H.

3

6554J

Tine, Inner, LH.

10

132728

Assembly, Hub and Plate, R.H.

4

3146R

Retainer, Spring

11

6555J

Tine, Inner, R.H.

5

6

132727

73610600

Assembly, Hub and Plate, LH.

Nut, Hex 3/8-24

NOTE: All component dimensions given in U.S. inches.

10040600

Washer, Lock 3/8

1 inch = 25.4 mm

25
