SERVICE AND ADJUSTMENTS

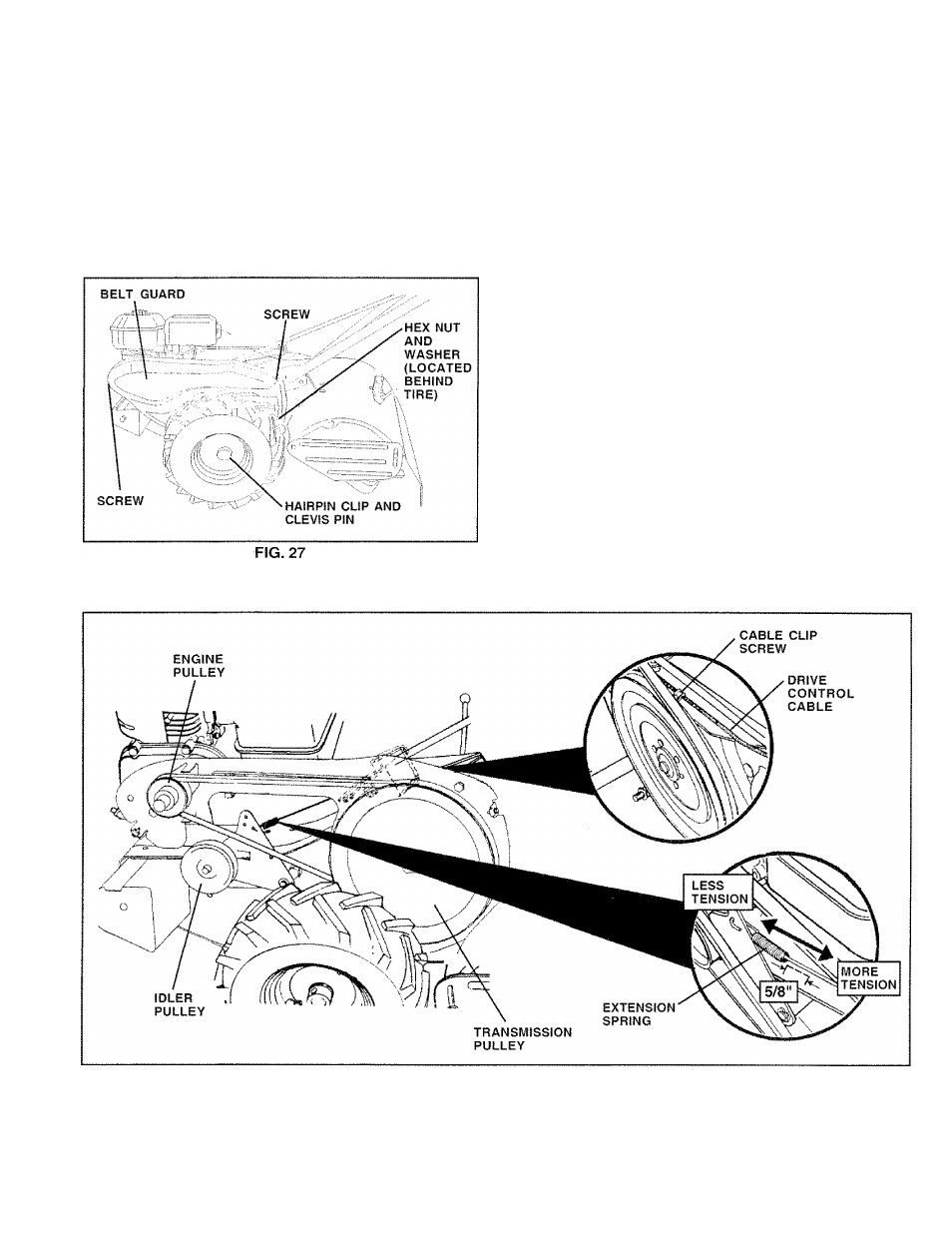

TO REMOVE BELT GUARD (See Fig. 27)
NOTE: For ease of removal, remove hairpin clip and clevis
pin from left wheel. Pull wheel outfromiillerabouil inch(2.5
cm).
•
Remove two (2) screws from side of belt guard.
♦ Remove hex nut and washer from bottom of belt guard
{located behind wheel).
• Pull belt guard out and away from unit.
* Replace belt guard by reversing above procedure.
TO REPLACE GROUND DRIVE BELT (See
Figs. 27 and 28)
• Remove belt guard as described in “T O REMOVE BELT
GUARD".
• Remove old belt by slipping off engine pulley first then
remove from transmission pulley.
• Place new belt in groove of transmission pulley and into
engine pulley. BELT MUST BE IN GROOVE ON TOP
OF IDLER PULLEY. NOTE POSITION OF BELT TO
GUIDES.
• Check belt adjustment as described below.
• Replace beitguard.
• Reposition wheel and replace clevis pin and hairpin clip.
GROUND DRIVE BELT ADJUSTMENT (See
Fig. 28)
For proper belt tension, the extension spring should have
about 5/8 inch (16 mm) stretch when drive control bar is in
“ENGAGED” position. This tension can be attained as
follows:
•
Loosen cable clip screw securing the drive control cable.
• Slide cable forward for less tension and rearward for
more tension until about 5/8 inch (16 mm) stretch is
obtained while the drive control bar is engaged.
• Tighten cable clip screw securely.
FiG. 28
