Poulan 175668 - Manual (Page 23)

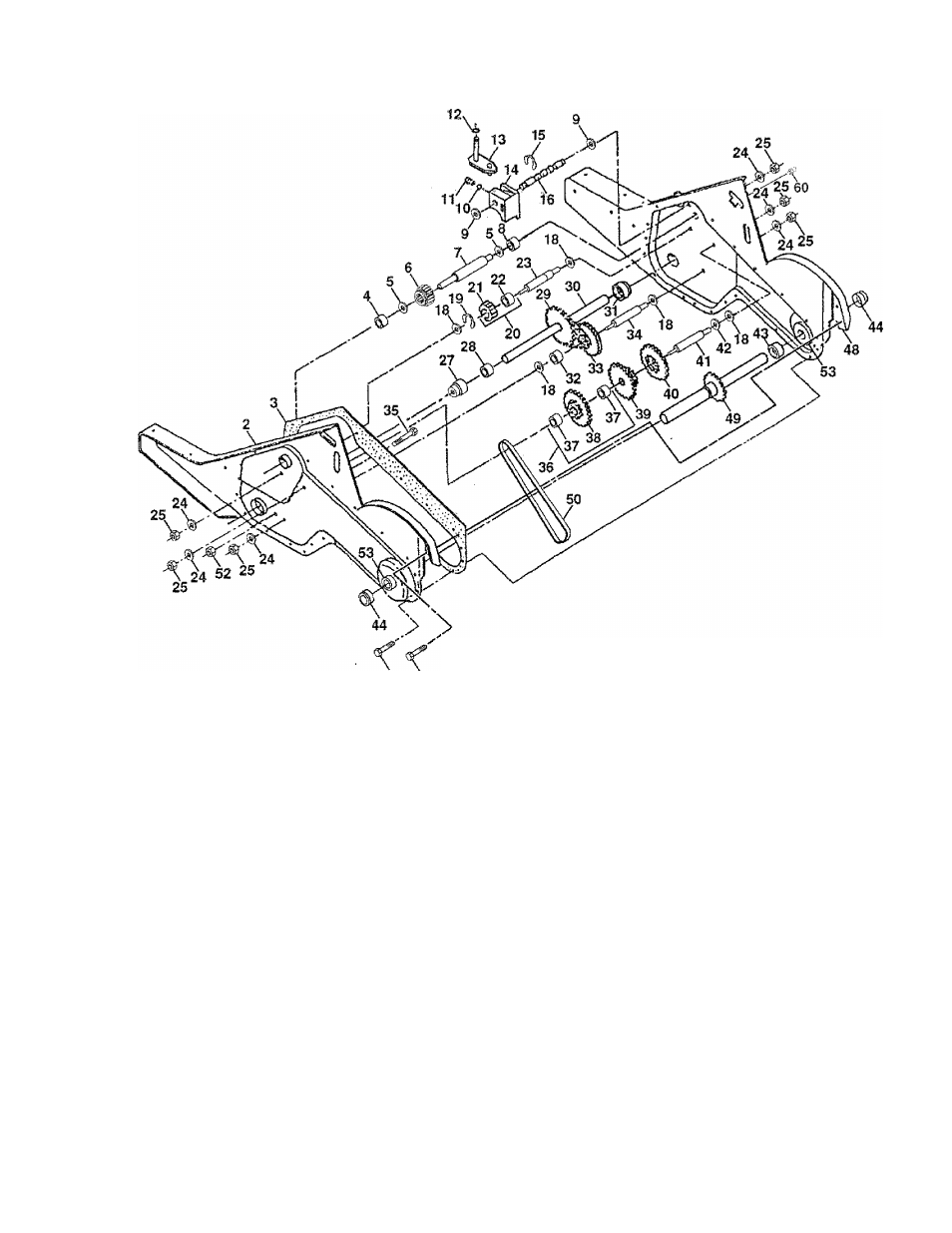

REPAIR PARTS
TRANSMISSION
TILLER - - MODEL NUMBER HDR500K
51 58
KEY PART
NO. NO. DESCRIPTION
1 170337 Transmission Assembly
(Includes Key Nos. 2-52)
2 165729 Gearcase, L.H. w/Bearing
(includes Key No. 4)
3 161963 Gasket, Gearcase
4 5020J Bearing, Needle
5 1370H Washer, Thrust 5/8 x 1.10 x 1/32
6 137335 Pinion, input
7 145101 Shaft, Input
8 4895H Bearing, Needle
9 154467 Washer, Seal
10 7392M Bail, Steel
11 100371K Spring, Shift, Fork
12 106160X O-Ring
13 142145 Arm,. Shift
14 8353J Fork, Shift
15 12000039 Ring, Klip
16 154466 Shaft, Shift
18 4358J Washer
19 12000040 Ring, Klip
20 102114X Gear, Assembly, Reverse Idler
(includes Key Nos. 21 and 22)
21 102115X Gear, Reverse idler
22 6803J Bearing, Needle
23 10211IX Shaft, Reverse Idler
24 10040700 Washer, Lock 7/16
25 73610700 Nut, Hex 7/16-20
27 143009 Bearing, Shaft, Ground Drive L.H.
PART
NO.
106390X
102134X
150737
143008
1063S8X
102121X
102112X
102101X
154355
23
DESCRIPTION
Spacer 0.765 x 1.125 x 1,23
Chain #35-50 Pitch
Ground Shaft Assembly
Bearing, Shaft, Ground Drive R.H.
Spacer 0.70 X 1.00 X 1.150
Sprocket and Gear Assembly
Shaft, Reduction (2nd)
Screw, Whiz, Lock 5/16-18x3-1/2
Sprocket Assembly w/Bearing
(includes Key Nos. 37 and 38)
37 4422J Bearing, Needle
38 154356 Sprocket, Tine
39 105345X Gear, Cluster, Red 1 st & 2nd
40 105346X Gear, Reverse
41 8358J Shaft, Reduction (1 st)
42 4220R Washer, Thrust
43 1 06146X Spacer 1,01 x1.75x0.760
44 155236 Seal Asm. Oil
48 170338 Gearcase, R.H. w/Bearing
(includes Key No. 8)
49 132688 Shaft, Tine
50 106147X Chain, Roller #50-50 Pitch
51 17720408 Screw 1/4-20x1/2
52 73220500 Nut, Hex 5/16-18
53 165140 Kit, Bearing, Tine Shaft
58 17720412 Screw 1/4-20 x 3/4
60 6855M Fitting Grease
6066J Grease, Plasiiiube #1
NOTE: All component dimensions given in U.S. inches.
1 inch - 25.4 mm
