REPAIR PARTS

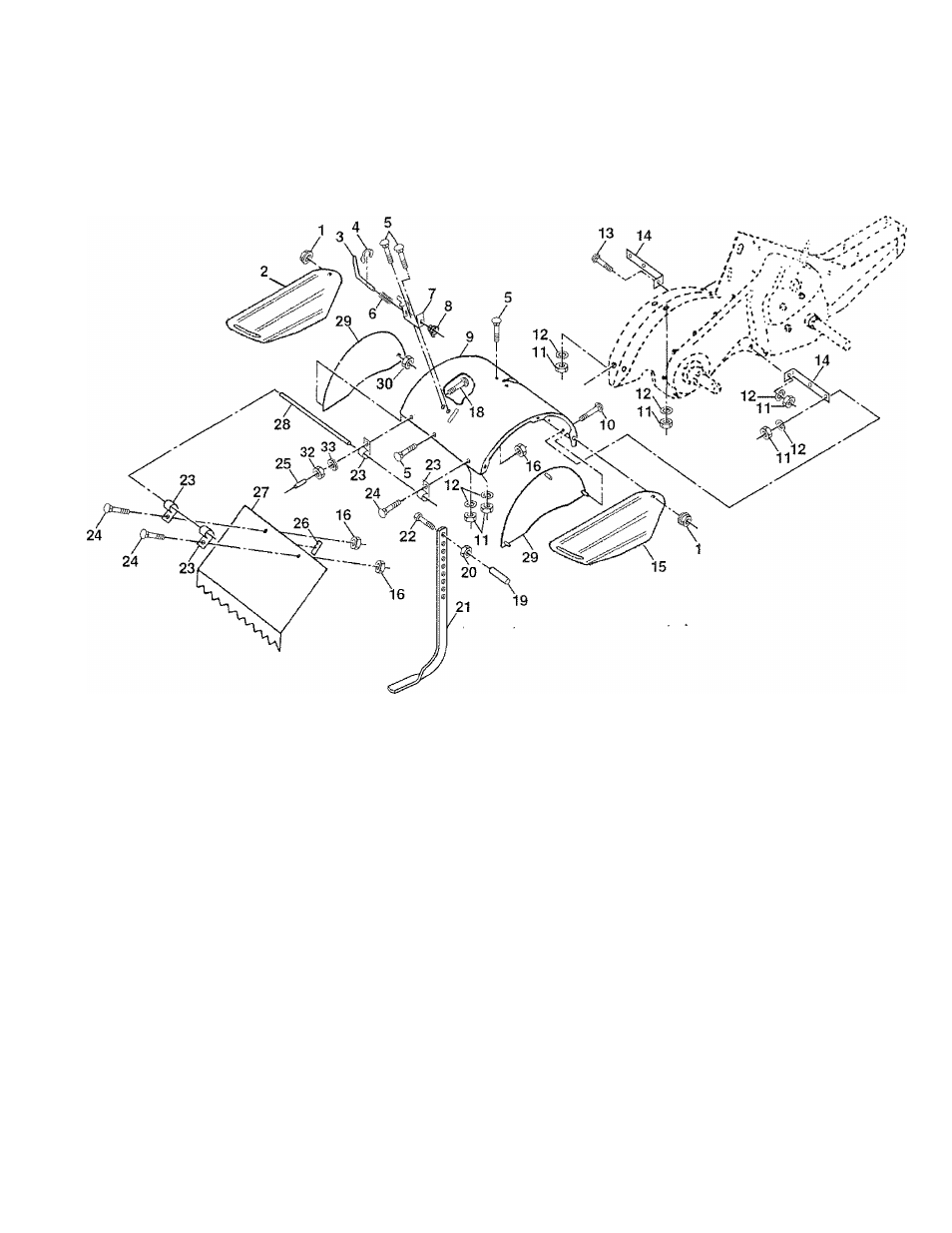

TINE SHIELD
TILLER - - MODEL NUMBER HDR500K
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1 73900500 Nut, Lock Hex Flange 5/16-18 18 72040410 Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
2 161415X428 Shield, Side, Outer L. H. 19 102701X Grip
3 8393J Pin, Stake, Depth 20 73220600 Nut, Hex 3/8-16
4 12000036 Ring, Kiip 21 102156X Stake, Depth
5 72140506 Bolt, Carriage 5/16-18 x 3/4 Gr 5 22 74930632 Bolt, Hex 3/8-16x2
6 8394J Spring 23 4440J Hinge
7 8392J Bracket, Latch 24 72140404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8 109230X Spring, Depth Stake 25 6712J Cap, Vinyl
9 102326X428 Shield, Tine 26 109227X Pad, Idler
10 72140508 Bolt, Carriage 5/16-18 x 1 27 102695X428 Shield, Leveling
11 73220500 Nut, Hex 5/16-18 28 120588X Pin, Hinge
12 10040500 Washer, Lock 5/16 29 104085X428 Shield, Side
13 72110510 Bolt,Carriage 5/16-18x1-1/4 32 73220400 Nut Fin Hex 1/4-20 UNC
14 124343X Bracket, Shield Tine 33 10040400 Washer Lock Hvy Helical 1/4
15 161414X428 Shield, Side, Outer R,H. NOTE: All component dimensions given in U.S, inches.
16 73900400 Nut, Hex Flange 1/4-20 UNC 1 inch = 25,4 mm
24
