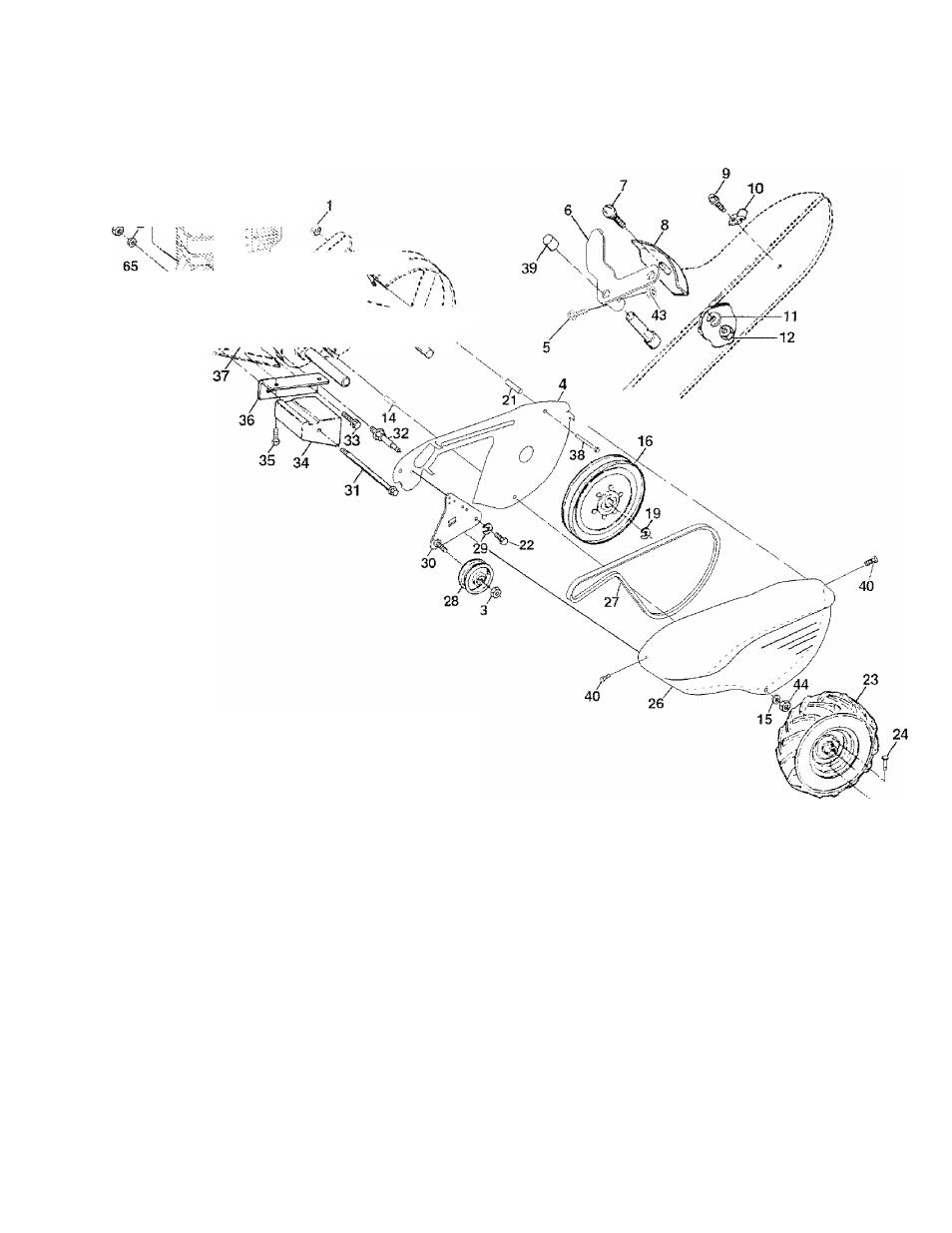

REPAIR PARTS
TILLER - - MODEL NUMBER HDR500K
MAINFRAME, LEFT SIDE
3
Y
4
'*■
'■'v4
! I
"■ /xv/z
■"
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
19
21
22
23
24
25
26
73510500
10040600
73220600
170127
154734
110111X
72110404
8700J
36777
9484R
10040400
73220400
23230506
156117
19111116
145102
12000028
110652X
74770508
102190X
150750
795R
126875X
4497H
165501X428
DESCRIPTION
Nut, Keps 5/16-18
Washer, Lock 3/8
Nut, Hex 3/8-16
Shield, inner Belt Guard
Screw, Shift Lever
Lever, Shift
Bolt, Carriage 1/4-20 x 1/2 Gr. 5
Plate, Shift indicator
Screw, Hex, Washer Head, Slotted
#10-24x1/2
Clip
Washer, Lock 1/4
Nut, Hex 1/4-20
Screw, Set, Hex 5/16-18 x 3/8
Spacer, Split 0.327x0.42x 1.220
Washer 11/32 x 11/16 x 16 Ga.
Sheave, T ransmission
Ring, Retainer
Spacer, Split 0.327x0.42x2.09
Bolt, Fin Hx 5/16-24x1/2
Tire
Rim
Tire Valve
Rivet, Drilled
Clip, Hairpin
Guard, Belt
25-^
KEY
PART
NO.
NO.
DESCRIPTION
27
132801
Belt, V
28
104679X
Pulley, idler
29
12000032
Ring, Klip
30
159229
Bracket, idler
31
102384X
Bolt, Hex 5/16-16
X
12
32
102141X
Shaft, Idler Arm
33
74760616
Bolt, Hex 3/8-16 x 1
34
102383X
Counterweight, L. H.
35
74760524
Bolt, Hex 5/16-18x1-1/2
36
102331X
Bracket, Reinforcement, L. H.
37
130812
Sheave, Engine
38
74760544
Bolt, Fin Hx 5/16-18x2-3/4
39
140062
Cap, Plunger
40
170488
Screw Hx Wsh Sit #10-24 x 1/2
43
69180
Nut, Lock #10-24
44
73800500
Nut, Lock 5/16-18 PI
65
73970500
Nut, Lock Hex Fig
21
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
