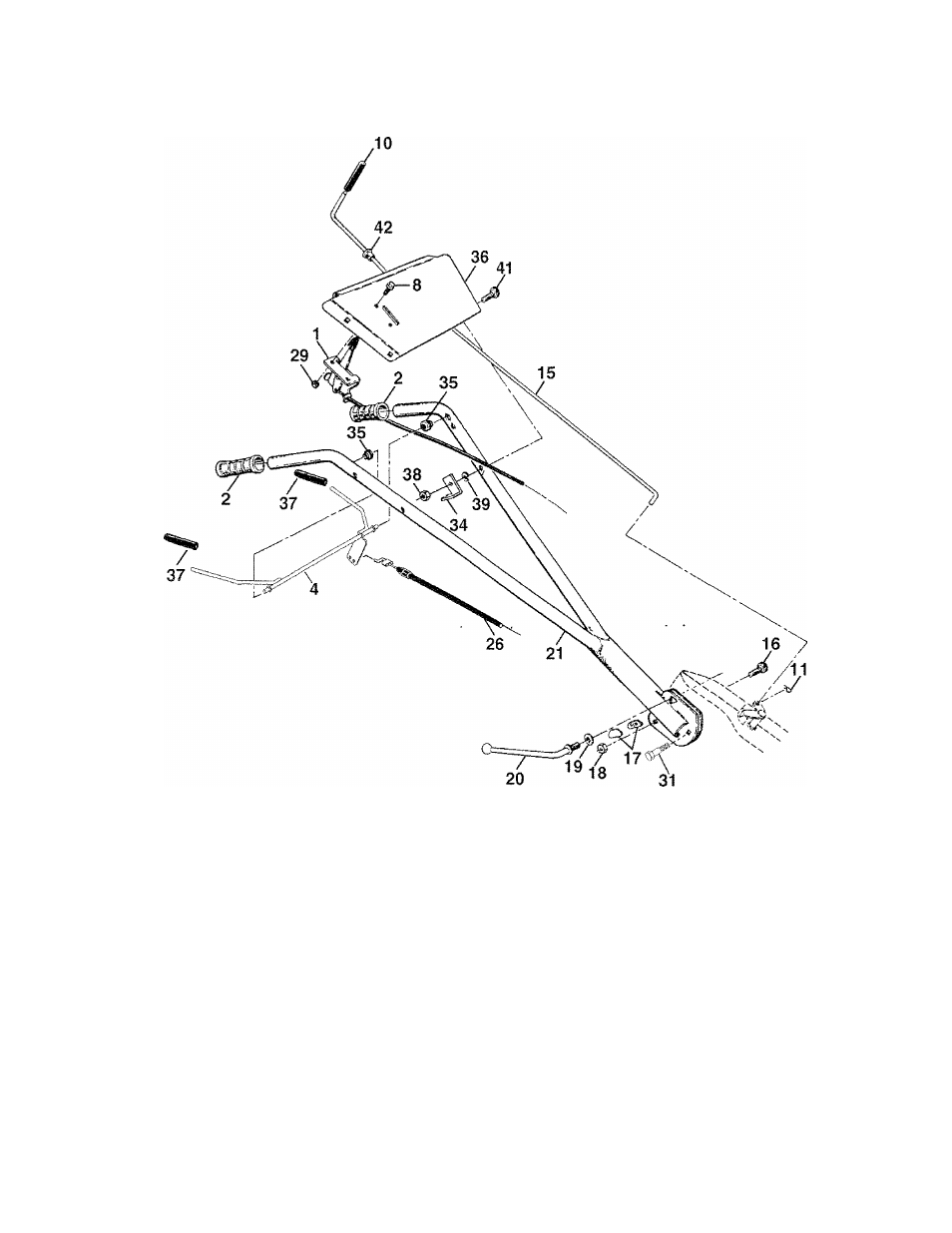

HANDLE ASSEMBLY
REPAIR PARTS
TILLER » - MODEL NUMBER HDR500K
KEY PART
NO. NO.
1
2
4
5
8
10
11
15
16
17
18
19
20
175250
150744
159227
72110514
71191008
8389J
4497H
108281X
72110608
109229X
73680600
19131611
109228X
DESCRIPTION
Control, Throttle
Grip, Handle
Bar, Control
Bolt, Carriage 5/16-18x1 -3/4
Screw, Pan Hd. #10-24
Grip, Handle
Clip, Hairpin
Rod, Shift
Bolt, Carriage 3/8-16 x
1 Gr. 5
Lock, Handle
Nut, Crowniock 3/8-16 UNC
Washer 13/32 x 1 x 11 Ga,
Lever, Lock, Handle
KEY PART
NO, NO.
DESCRIPTION
21
150217
Handle
26
159232
Cable, Clutch
29
73731000
Nut, Keps #10-24 UNC
31
150696
Bolt, Pivot
34
145821
Bracket, Clutch Cable
35
146480
Grommet, Handle
36
126949X428 Bracket, Handle
37
102604X
Grip, BarControl
38
73800500
Locknut 5/16-18
39
10040500
Washer, Lock 5/16
42
121248X
Bushing, Snap
NOTE: All component dimensions given in U.S. inches.
