THREADING THE BOBBIN CASE
Fig. 6

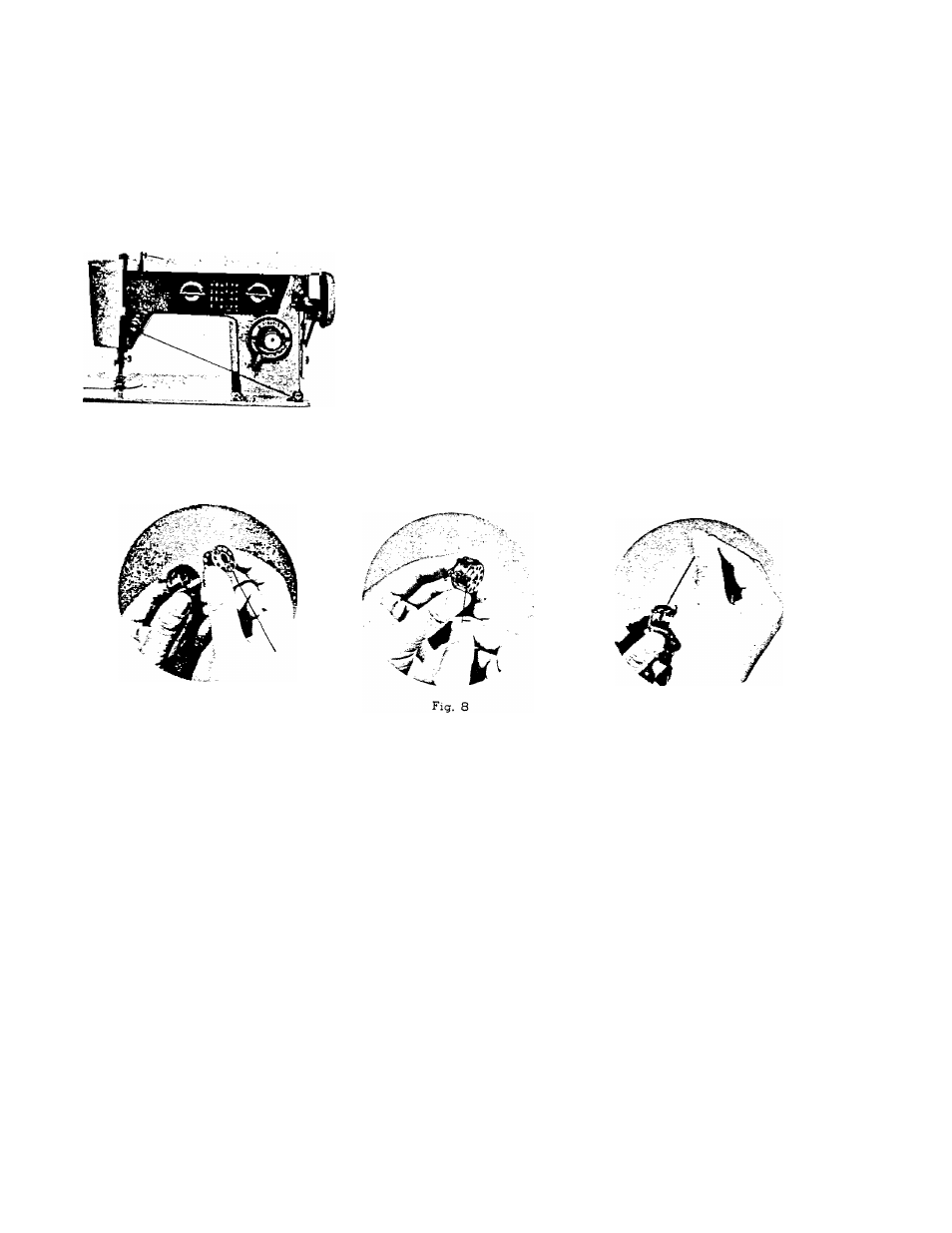

Step 1 (illustrated in Fig. 7) Hold bobbin case between
thumb and forefinger of left hand, so that the slot in the
edge of the bobbin case is on top. Take the bobbin between
thumb and forefinger of right hand so that the thread on
top leads from left to right. Step 2. Insert bobbin into
bobbin case, pull the thread into the slot of the bobbin
case as shown in Fig. 8, and draw it under the tension
spring and into the fork-shaped opening of the spring as
shown in Fig. 9.
Fig. 7
Fig. 9
