□ Connecting machine to power source

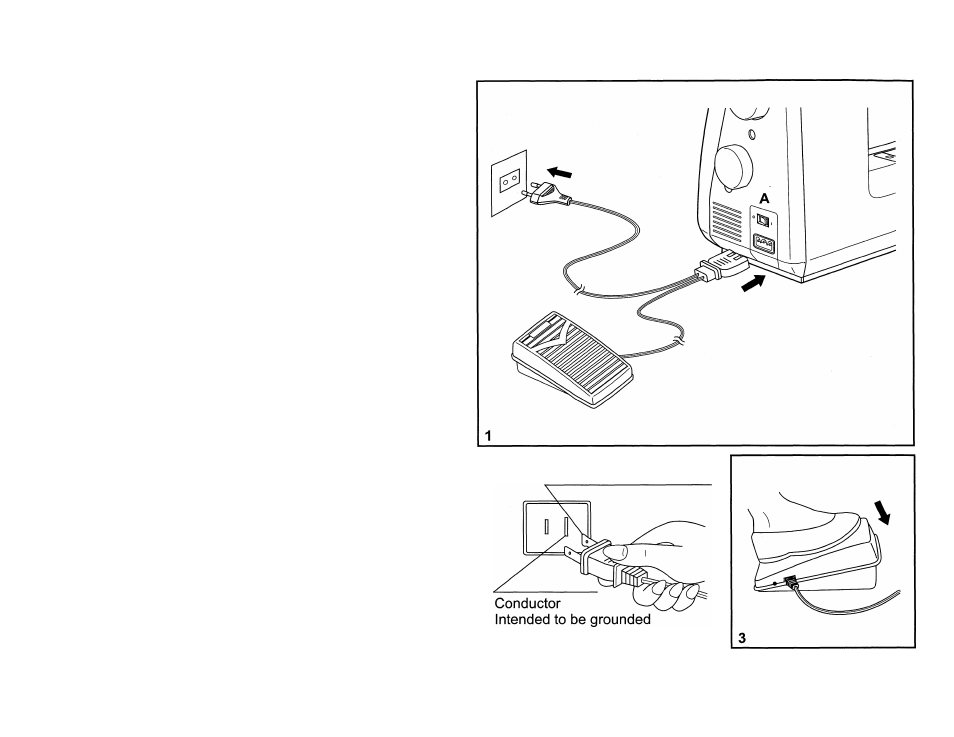

Connect the machine to a power source as illustrated. (1)
This appliance is equipped with a polarized plug which must be
used with the appropriate polarized outlet. (2)
Attention:
Unplug power cord when machine is not in use.
Foot control
Foot control regulates the sewing speed. (3)
Attention:
Consult a qualified electrician if in doubt as to connect
machine to power source.
Unplug power cord when machine is not in use.
The appliance must be used with the foot controller 4C-316B
(110-120V area) / 4C-126G or 4C-326G (230V area) / 4C-
316C
or
4C-326C
(220-240V
area)
manufactured
by
MATSUSHITA ELECTRIC (TAIWAN) CO., LTD.
Sewing light
Press main switch (A) for power and light on " I".
IMPORTANT NOTICE
This appliance has a polarized plug (one blade is wider than
the other).
To reduce the risk of electric shock, this plug will fit in a
polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician. Do not modify the plug in any way.
Polarized attachment plug
