Turn the pattern selector dial to (| ).

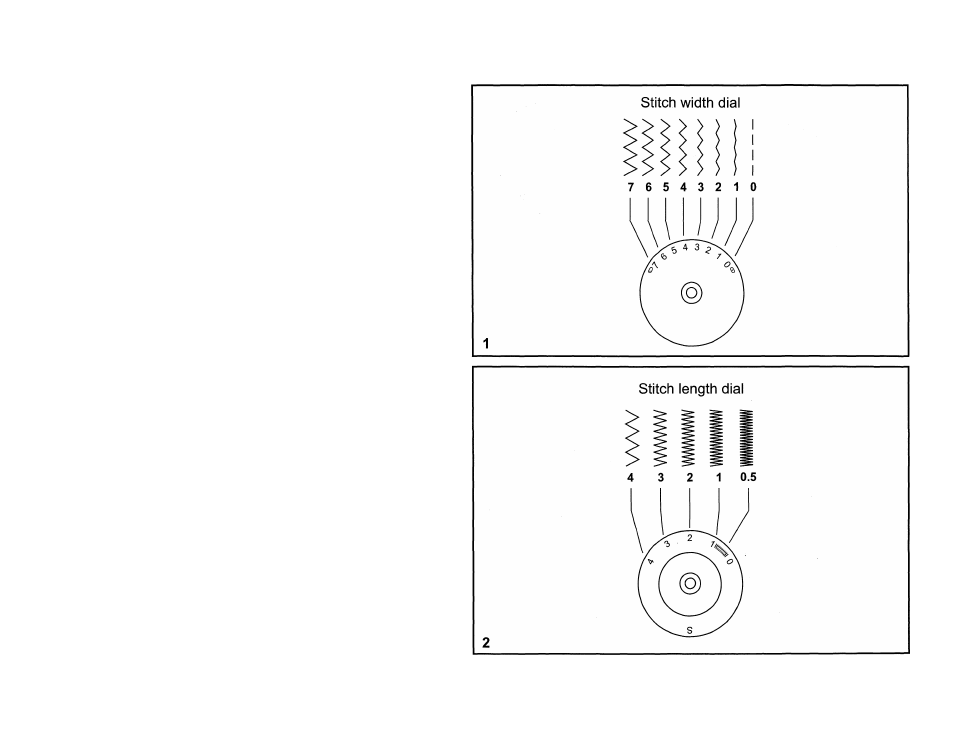

Function of stitch width dial

The maximum zigzag stitch width for zigzag stitching is "7";

however, the width can be reduced on any pattern. The width
increases as you move zigzag dial from "0" - "7". For twin
needle sewing, never set the width wider than "3.5". (1)

Function of stitch length dial while zigzag

The density of zigzag stitches increase as the setting of stitch

length dial approaches "0".
Neat zigzag stitches are usually achieved at "2.5" or below.

Closed up zigzag stitches (close together) are referred to as a
satin stitch. (2)

□ Zigzag stitching (For model- 3 dials)
