Principal parts of the machine – SINGER 6510 Scholastic User Manual
Page 5
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

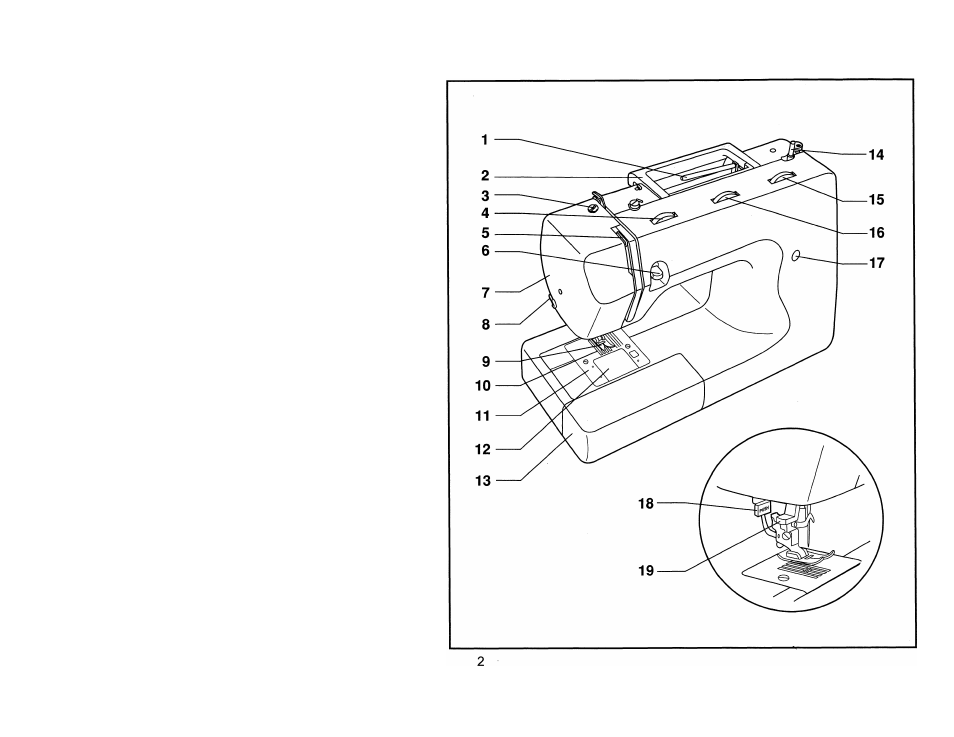

1. Horizontal spool pin
2. Handle
3. Presser foot pressure adjustment
4. Tension dial
5. Thread take-up lever
6. Reverse lever
7. Face plate
8. Thread cutting
9. Presser foot
10. Feed System
11. Needle plate
12. Bobbin cover plate
13. Sewing table and accessory box
14. Bobbin winder
15. Stitch length dial
16. Stitch width dial (For model- 3 dials)*
17. Pattern indicator window
18. One step buttonhole lever (optional on some models)
19. Automatic threader (optional on some models)
*Note: If your machine does not have a stitch width dial, it
will be referred to as "model- 2 dials" throughout
this instruction book.
□ Principal parts of the machine
