WiLCOMi
W»lcc»Tit to the growing family of h<^y ov¥n«rs of this new model zigzog
mochine.
You now hove one of the finest modern fcncy zigzog mochines mode, wirti oil
these wonderful features.
★ Tension Dial-allows the tension of the upper
thread to be easily and accurately adjusted to
suit the material.
★ Instant Reverse Sewing-by pushing the reverse
button in,
★ Zig-Zag Pattern-can be easily changed while
sewing by moving the zigzag lever.
ir
Modern disc Balance Wheel.
★ Snap out Race-for convenient cleaning of race
and hook.
★ Automatic Zig-Zag Petterns-can by easily
replaced.
•k Stretch Stitching-by selecting lever.
This mochin« is precision built for o lifetime of sewing pleosure It will reqtrire
o mlnimimt omount of molnlenonce and will give the moxitnum in first clots
service.
This mortual provides oil the informotion necessory to operate the mochine ond
we suggest you reod the following instructions very carefully in order to get
the most from your mochine.

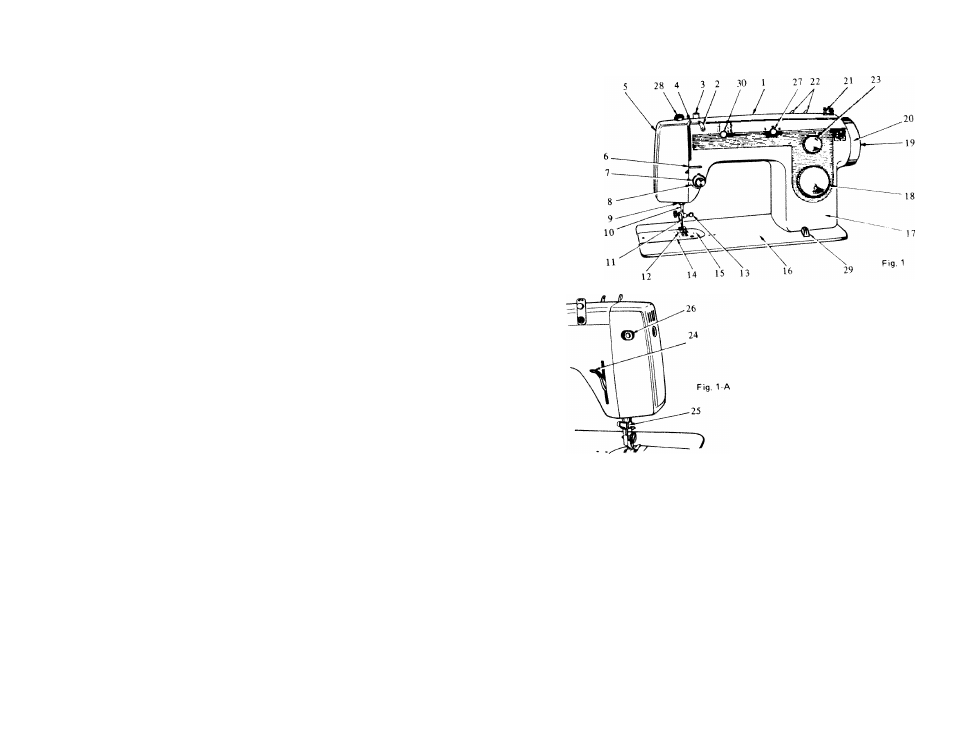

DiSCRIPTION OF MACHIN!
MODEL
217EDSS
1. Arm cover
2. Arm cover thread guide
Bobbin winder thread
guide
Thread take up lever
Face plate
Armthread guide A
Tension dial
Check spring
Arm thread guide B
Needle bar
Needle
3.
4.
5.
6
.
7.
8
.
9.
10.
11 .
