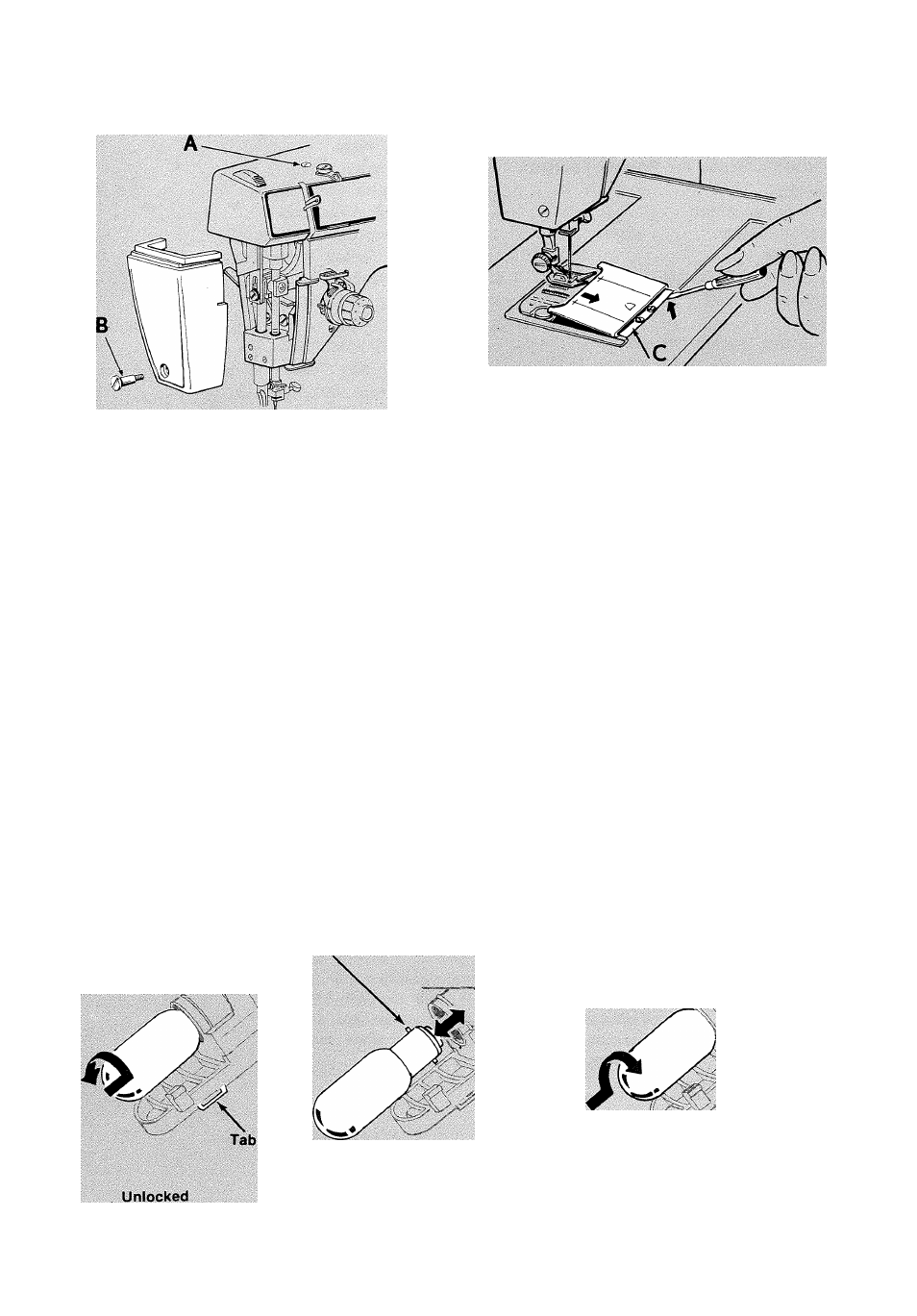

REMOVING FACE PLATE REPLACING SLIDE PLATE
Loosen screw A (do not remove}.
Loosen face plate screw B then remove
face plate by drawing it toward you. Re­
place face plate by sliding top edge of
plate under edge of arm top cover. Tighten
screws B and A.
Place slide plate in slide way with the front
edge close to, but not covering, the retain­
ing spring C. With a small screwdriver, lift
each end of the spring into each of the side
grooves on the under side of the slide plate.
Draw the slide plate gently toward you to
fully engage the spring. Close slide plate.
CHANGING THE LIGHT BULB
CAUTION: Before changing light bulb make
sure you have disconnected power line plug
from socket outlet. CAUTION: This machine is designed to use
a 15 watt maximum bayonet base bulb only.
Removing Bulb
• With thumb of right hand push in and down
on tab of light lens and lower the light
bracket.
• Do not attempt to unscrew the bulb.
• Press it up into the socket and at the same
time turn bulb over in direction shown to
unlock the bulb pin and guide out of socket.
Replacing Bulb
• Press new bulb into socket, with bulb pins
entering slots of socket.
• Turn it over in direction shown to lock bulb
in position.
• Push entire assembly up until it snaps in
position.
Bulb Pin
Locked
