Winding the bobbin, Setting the needle – SINGER W610 User Manual
Page 8
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

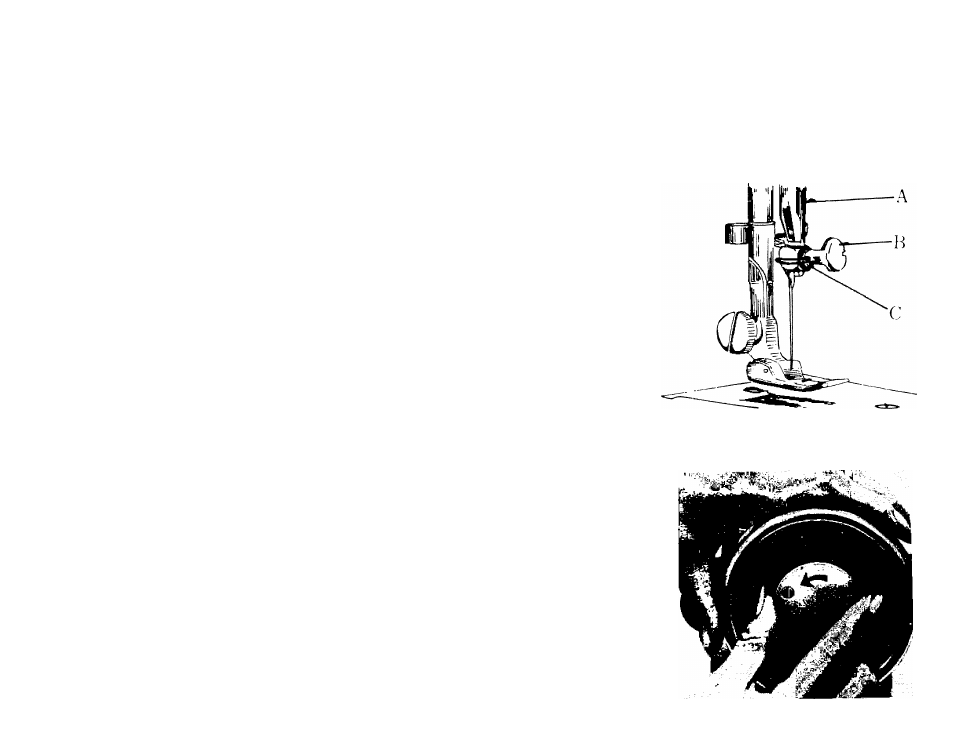

See Fig. 3. Raise the needle bar (A) to its highest point, turning
Hand wheel toward you by hand. Then loosen needle clamp
screw (B) and needle can be removed or replaced. When re
placing needle (Flat Side to Right) in needle clamp (C) push it
upward as far as it will go into needle clamp hole, tightening
the needle clamp screw (B) securely with a screw driver.
After changing the needle make one complete revolution of the Hand
wheel by hand to be sure the needle is in the correct position.
SETTING THE NEEDLE
WINDING THE BOBBIN
Disengage the hand wheel (A, Fig. 4-) from the stitching mecha
nism
by
turning
the
clutch
nut
(B,
Fig.
4)
toward
you
or
counterclockwise. Place a spool of thread on one of the spool
pins (A, Fig. 5) and lead thread through the bobbin winding
tension disc (B, Fig. 5). Run end of thread through a hole in
the bobbin edge and place bobbin (C, Fig. 5) on spindle of
bobbin winder fitting the notch on bobbin over small pin on
spindle.
Push
bobbin
winder
to
the
right.
Hold
thread
end
loosely
and
start
machine
slowly.
Bobbin
winder
will
stop
when it is filled. Push bobbin winder to the left, and remove
the bobbin.
Turn clutch nut away from you until sewing mechanism is again
engaged so that needle moves when you turn the hand wheel.
Fig.
3
Fig. 4
