PLACING BOBBIN

IN SHUTTLE

Open hinged cover plate left of the needle (See
18, Fig. 1). Hold the bobbin case latch (D, Fig.
9), between the thumb and forefinger of the

left hand, with at least three inches of thread

running from the top of the bobbin case to the
right. Insert and center the bobbin case on the

stud

the

shuttle

body

(C).

sure

the

bobbin case finger (E) is opposite the shuttle
race notch (A). Press the bobbin case (B) into
the shuttle as far as possible until latch catches
on the center post of the shuttle. THEN re
lease the bobbin case latch (D). Press bobbin

case again after latch has been released to

make sure the bobbin case is hooked securely
in place. Close the cover plate.

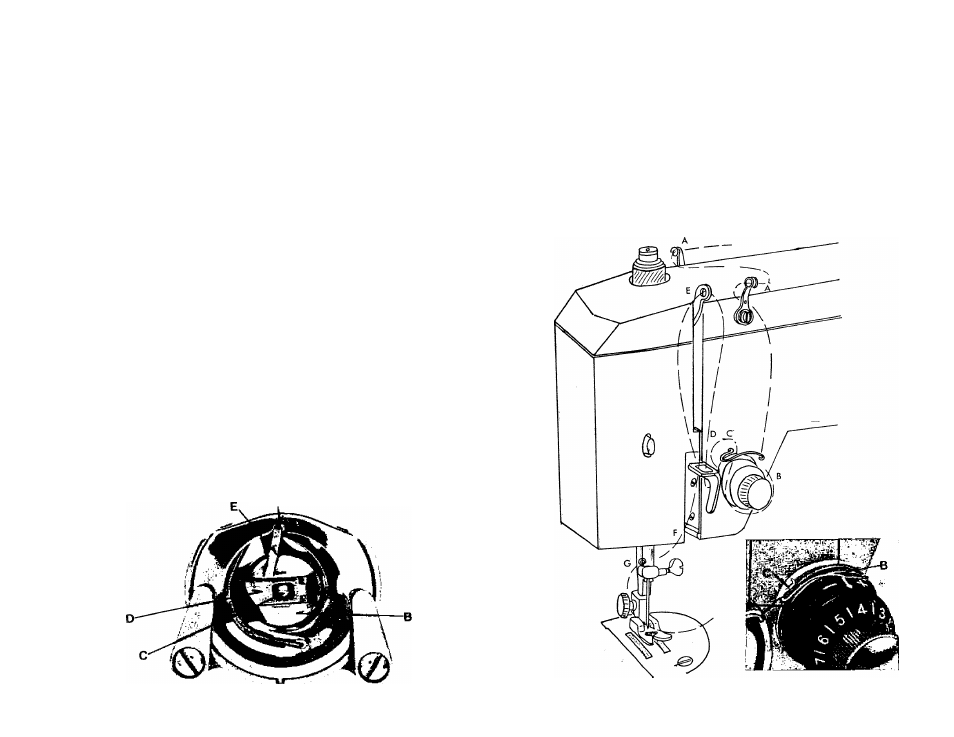

Fig. 9

Fig. 10
