30
TROUBLE CHART
T rouble
Probable Cause
If
Machine
Binds
Thread or lint in
raceway
Correction

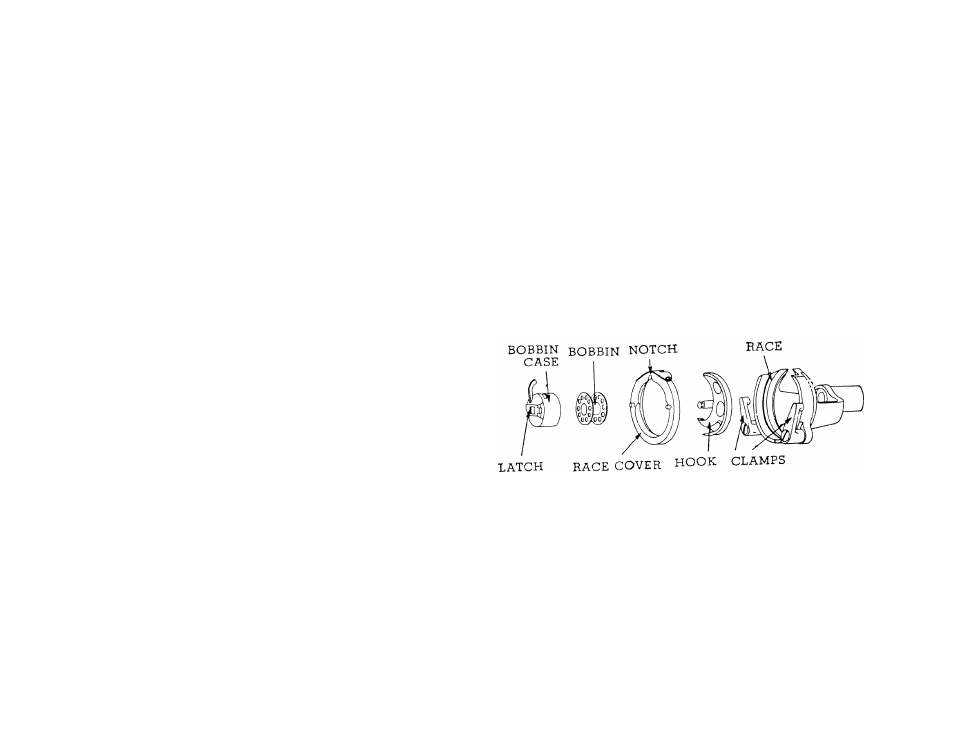

1. With take-up lever in highest position, tilt
head back on hinges and remove bobbin
case.
2.
Turn clamps outward and remove race
cover.
3. Remove hook.
4.
Clean thread and lint from all parts, in
cluding race.
5. Run a drop of oil along rim of hook.
6.
Replace shuttle, then race cover. Snap
clamps into place.
7.
Grasp threaded bobbin case by latch and
replace, fitting tongue into notch of race
cover.
