12. THREADING THE MACHINE
J

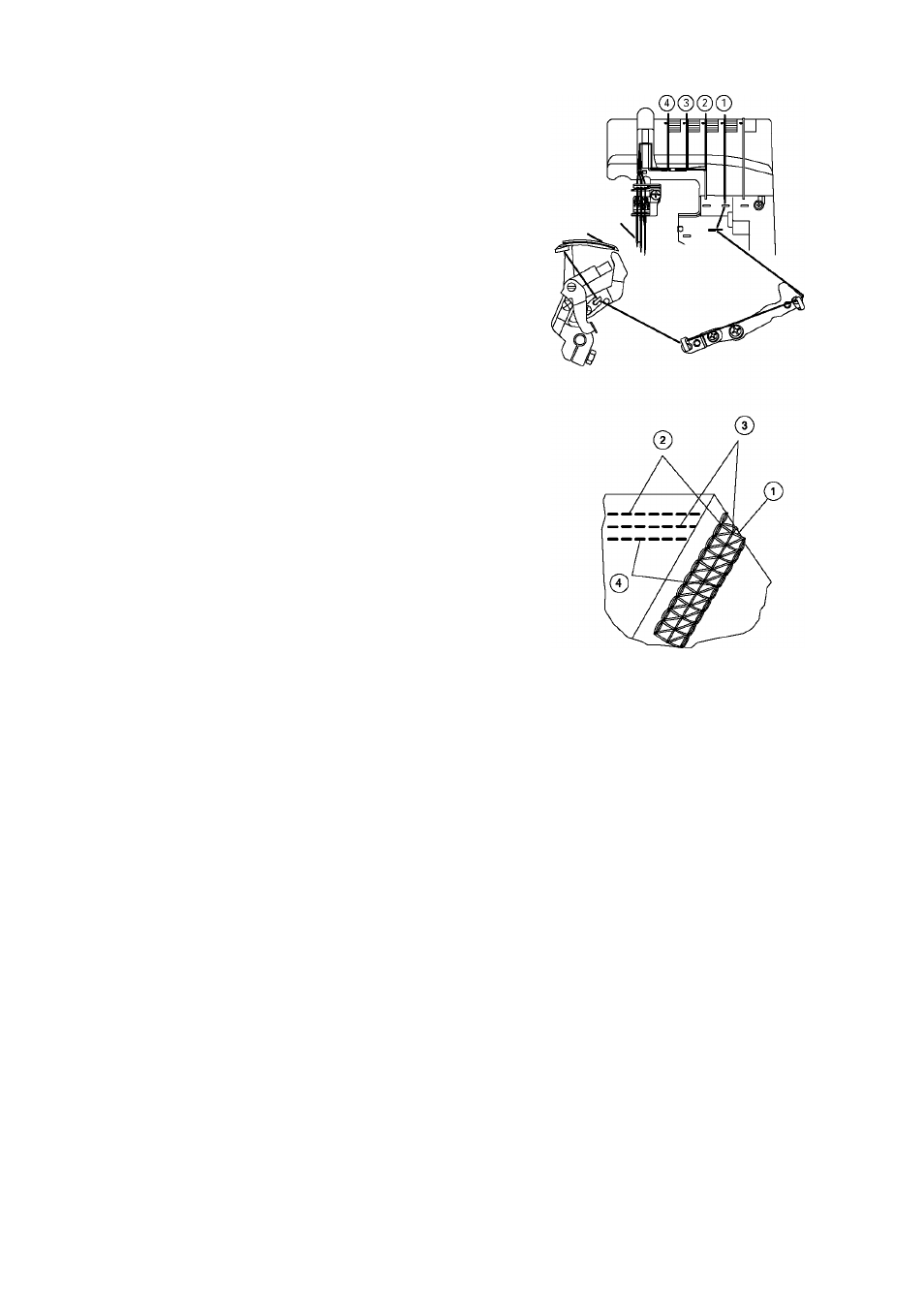

Threading Diagram:
Three Thread Cover Stitch
• A color coded threading diagram is located Inside
the looper cover for quick reference.
• Thread the machine in the order 1 to 4 as shown
at right.
Tension Color Code: Cover Stitch
1. Cover stitch looper thread.......... Yellow
2. Right needle thread...................... Red
3. Middle needle thread................... Green
4. Left needle thread........................ Blue
