Chapter 1. Getting to Know Your Machine

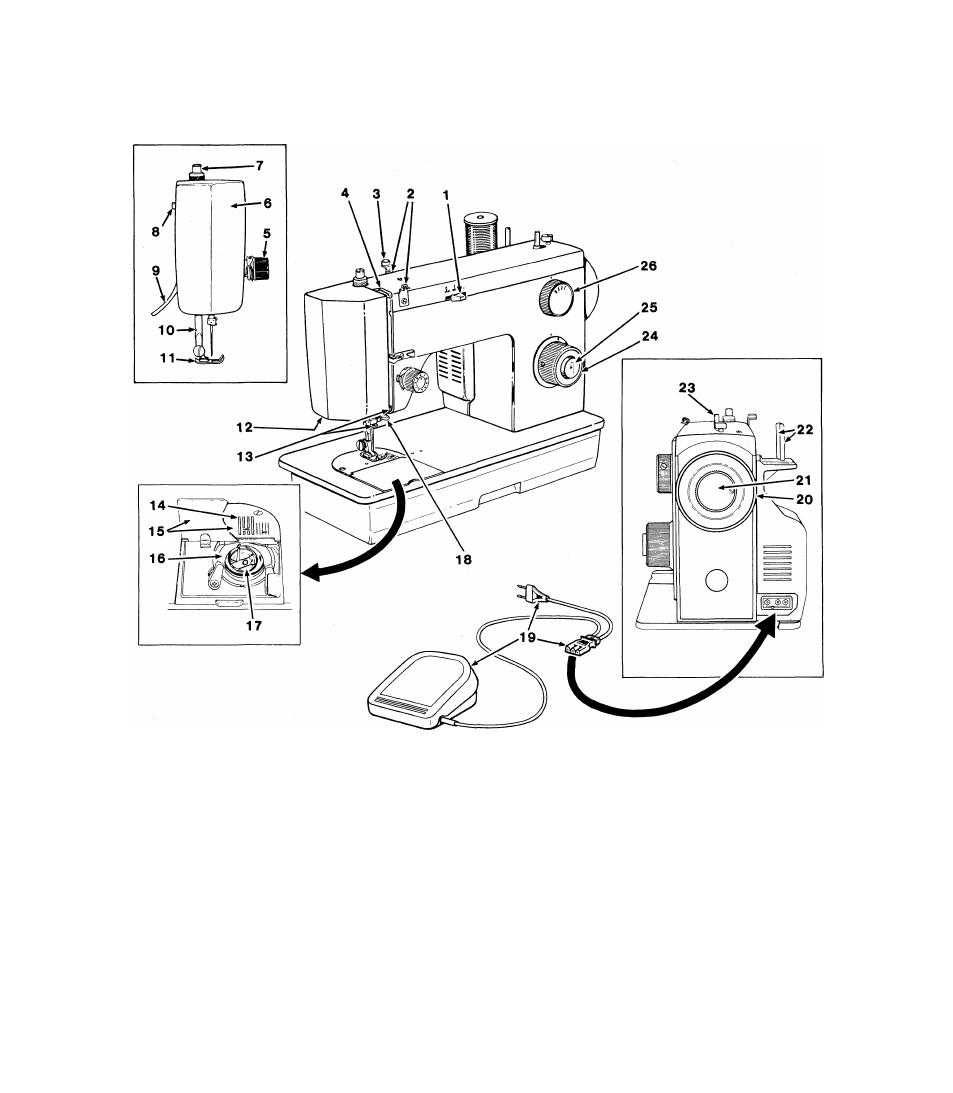

principal parts
1. Needle Position Selector
2. Thread Guides
3. Bobbin Winder Tension
4. Take-up Lever
5. Needle-Thread Tension
Dial
6. Face Plate
7. Pressure Regulator
8. Sewing Light Switch
9. Presser Foot Lifter
10. Thread Cutter
18.
11. General Purpose Presser
Foot
19.
12. Sewing Light
20.
13. Thread Guides
21.
22.
14. Feed
23.
15. General Purpose Needle
24.
Plate & Cover Plate
16. Bobbin Case Holder
25.
17. Bobbin Case
26.
18. Needle Clamp
Electrical Conner
Speed Controller
Button
26. Stitch Width Seiector
