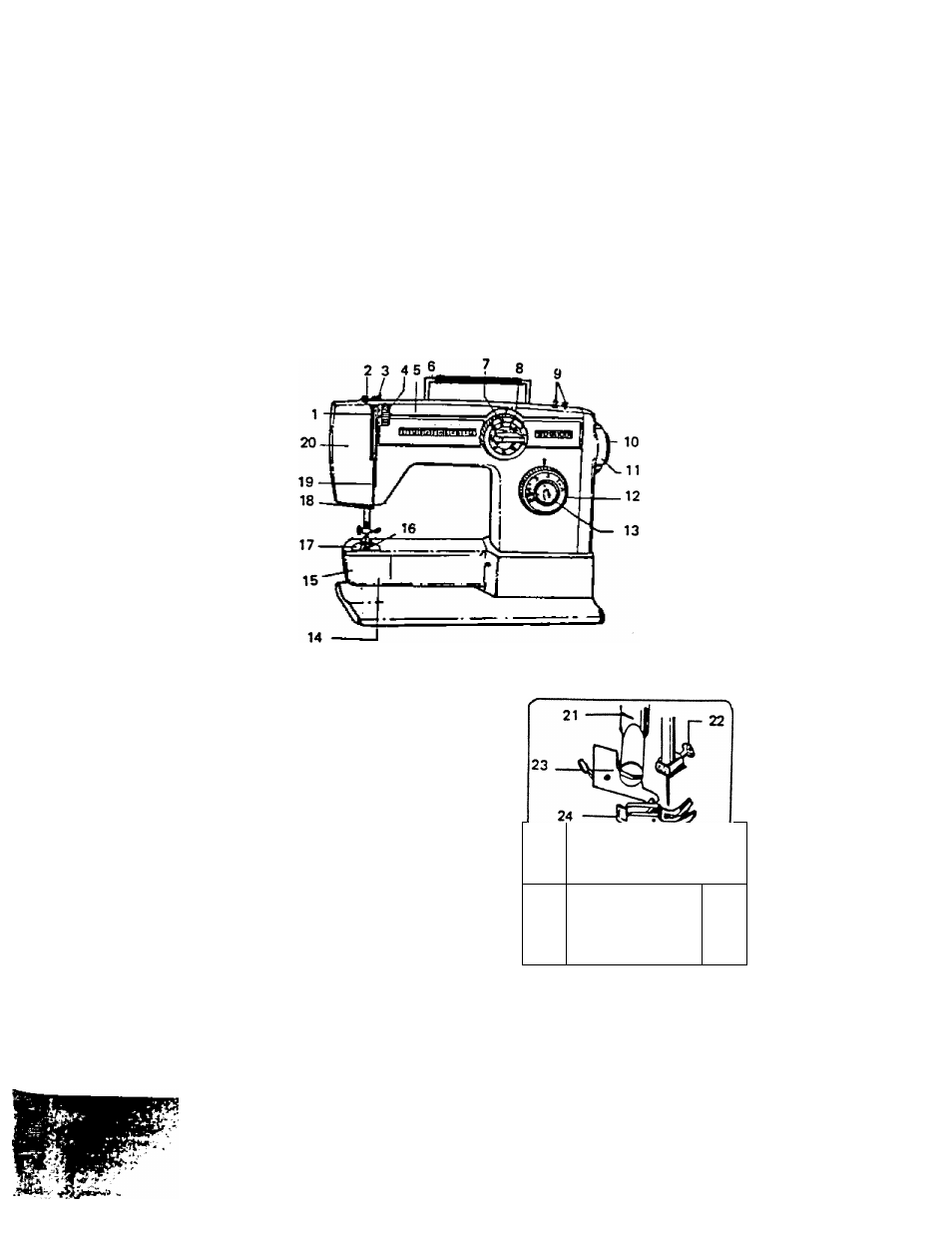

PARTS DESCRIPTION
1. Thread Tak®-up Le^r
Z Pressure Ralease (Darning)
3. Top Plats Thrsad Guide
4. Tension Regulator
■
5. Top Plate
6. Handla
7. Needle Position and Pattern Selector Dial
8
.
Z^g Width Control Dial
9. Bt^in VWnder
10. Fly Wheel Outch
11. Flywheel
12. Stitch Length Control Dial
13. Reverse Button
14. Drop Feed (under Shuttle Cover)
15. Shuttle Race Cover
16. Feed Dog
17. Needle Plate
18. Thread Guide
19. Thread Guide
20. Face Plate
21. Thread Cutter
22. Needle Clamp
23. Presser Foot Thumb Screw
24. Presser Foot
25. Spool Pins
26. Light Switch
27. Presser Bar Lifter
28. Motor and Belt Cover
—
25 3 ^
(
284
---------------- T
rAi bi
41
V
^
f.y'.- ■ -
....
