SINGER 6104 User Manual
Page 7
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

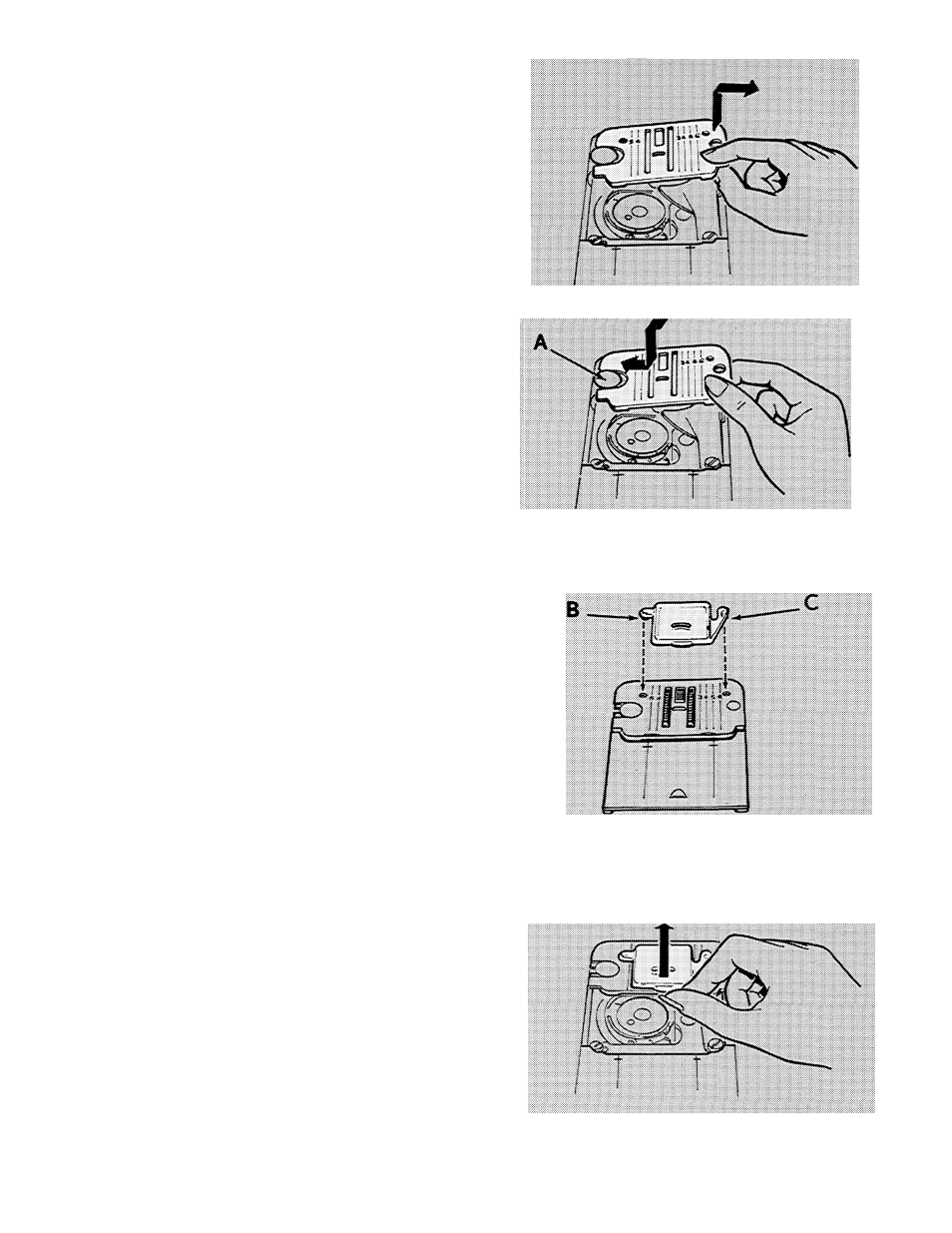

REMOVING AND REPLACING NEEDLE
PLATE
• Raise presser foot.
• Raise needle to highest position.
• Open slide piate. Place thumb under right
side of f^eedie plate, lift it up and withdraw
it to right.
•, Replace needle plate under clamping pin
A.
push it gently to the left and press down
until it snaps into place.
ATTACHrNG SNAP-IN FEED COVER
♦ Raise presser foot
♦ Raise needle to highest position by turning
hand wheel
tov/ard you.
Open slide plate,
♦ Slide snap-in feed cover, away from you
over needle plate until points
B
and
C
are
positioned directly over holes in needle plate
as illustrated. Snap in point 8. Then push
point
C
in toward point
B
until it snaps into
place. Close slide plate. To remove, open
slide plate then simply lift up front edge of
feed coven
