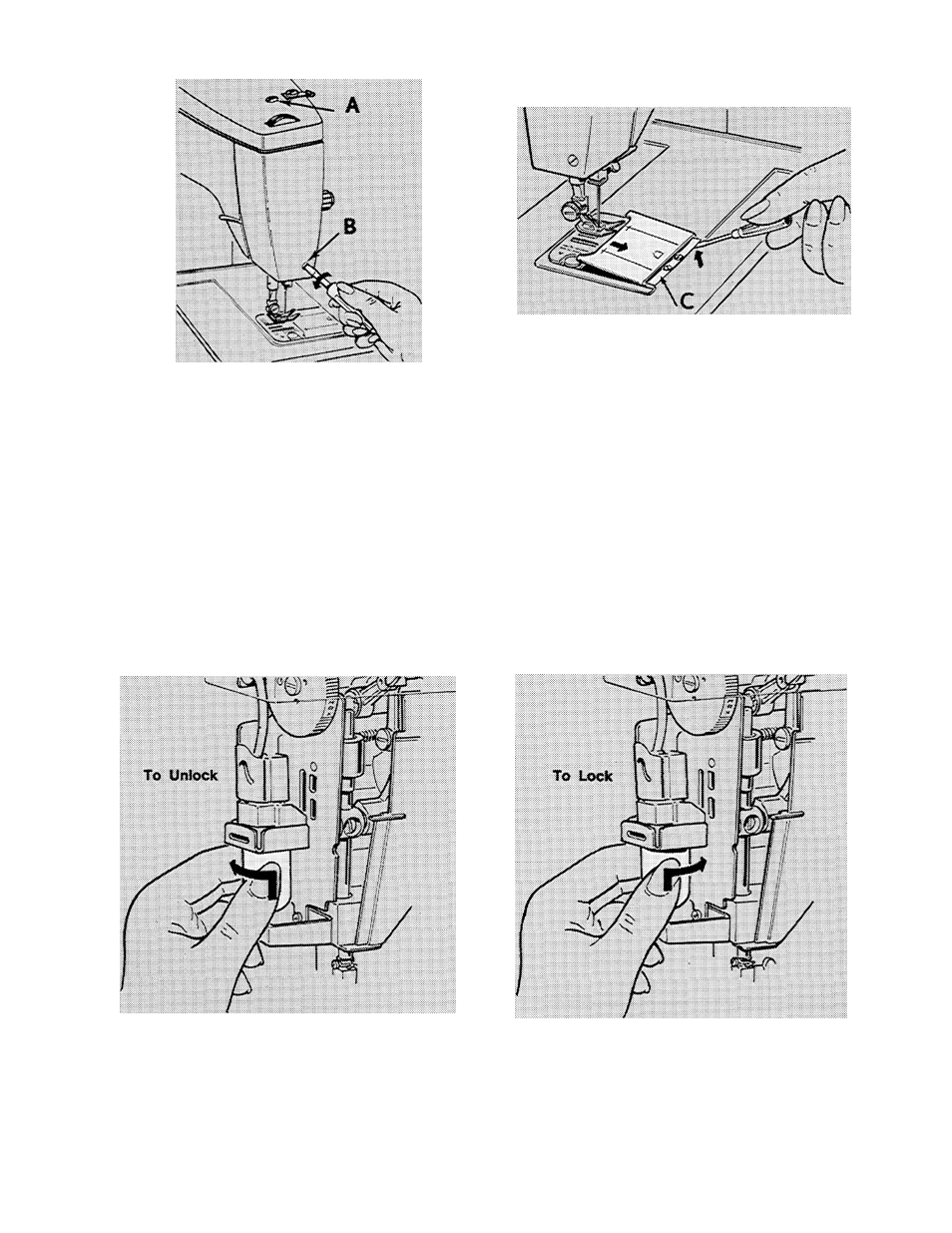

REMOVfHG FACE PLATE

PEPLACiNG SUDE PLATE

Loosen screw A (do not remove).
Loosen face plate screw B then remove

face píate by drawing it

toward you.

Re

place face plate by sliding top edge of

pfate under edge of arm top cover. Tighten
screws B artd A.

Place slide plate in slide way with the front

edge close to, but riot covering, the retain
ing spring C. With a small screwdriver, lift
each end of the spring into each of the side
grooves on the under ^de of the slide plate.
Draw the slide plate gently

toward you to

fully engage the spring. Close slide plate.

CHANGING THE UGHT BULB

CAUTION: Before changing light bulb make

sure you have disconnected power fine plug

from socket outlet.

Removing Buib

CAUTION: This machine is designed to use

15 watt maximum bayonet base bulb

onl^.

R^Iacing Bulb

• Remove face plate.

•

Do not attempt to unscrew the buib.

•

Press it up into the socket and at iHie

same time turn bulb over in direction
shown to unlock the buib pin and guide
out of socket.

Press new buib into socket,

pins entering slot of socket

with buib

Turn it over in direction shown to lock

bulb in position.

Replace face plate.
