SINGER W7317 - Manual (Page 7)

4. WINDING THE BOBBIN

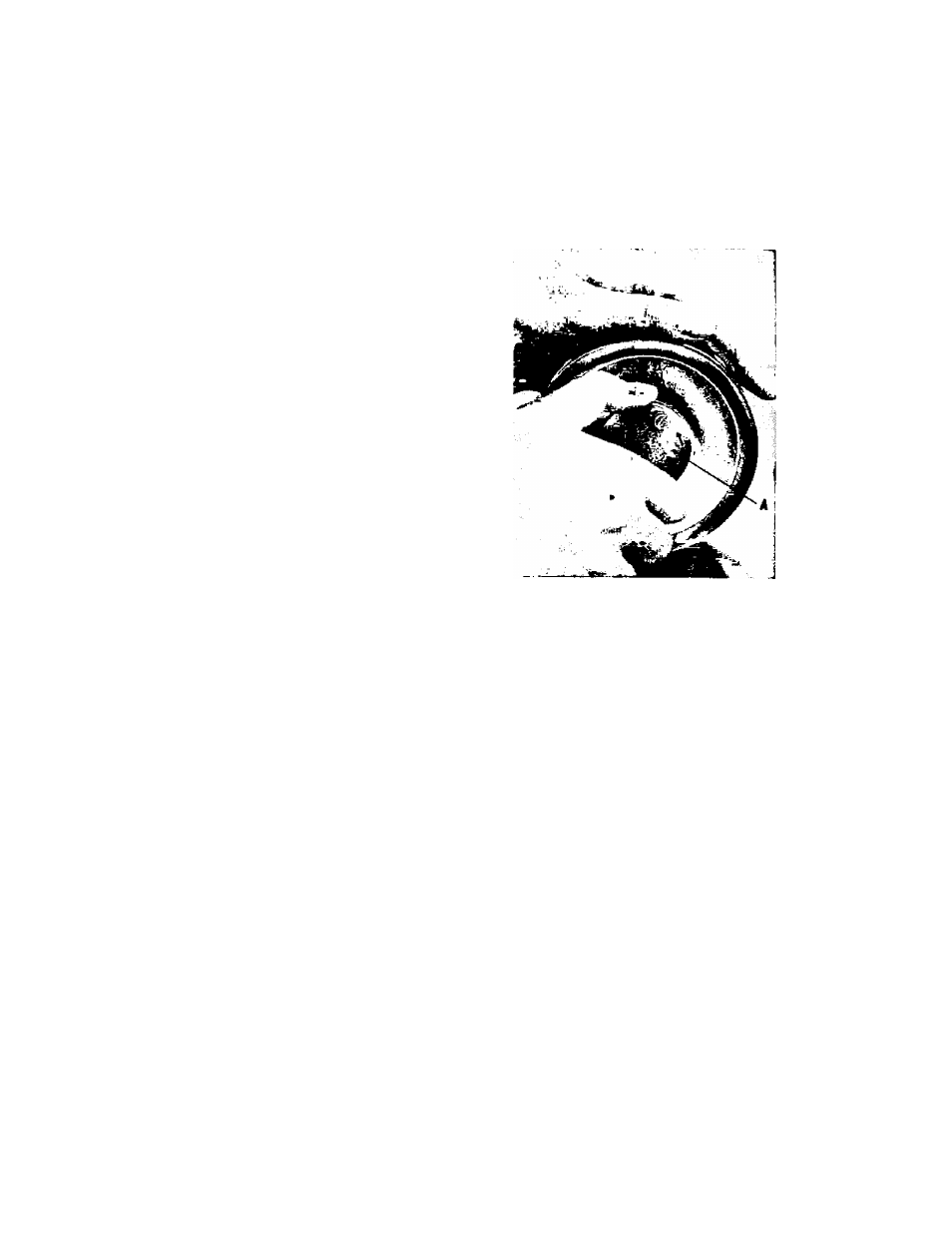

II Hold the balance wheel with your left hand and turn the stop motion knob (A) (Fig. 41 toward you with your right
hand (counter-clockwise!. The balance wheel is now disconnected for the bobbin winding operation.
21 °lace a spool of thread on the spool pin (Fig. 51. Draw the thread from the spool to thread guide' then downward
across the machine from left to right.
I
31 Pass the thread through the tension device at the |
right corner on the bed. i
4) Now wind the end of thread around an empty
bobbin several times and insert the bobbin on the
bobbin winder spindle.
51 Press the bobbin winder cover until a click is
heard. The bobbin winder release lever is now
touching the spindle of the bobbin. It holds the
bobbin in place.
Fig. 4
