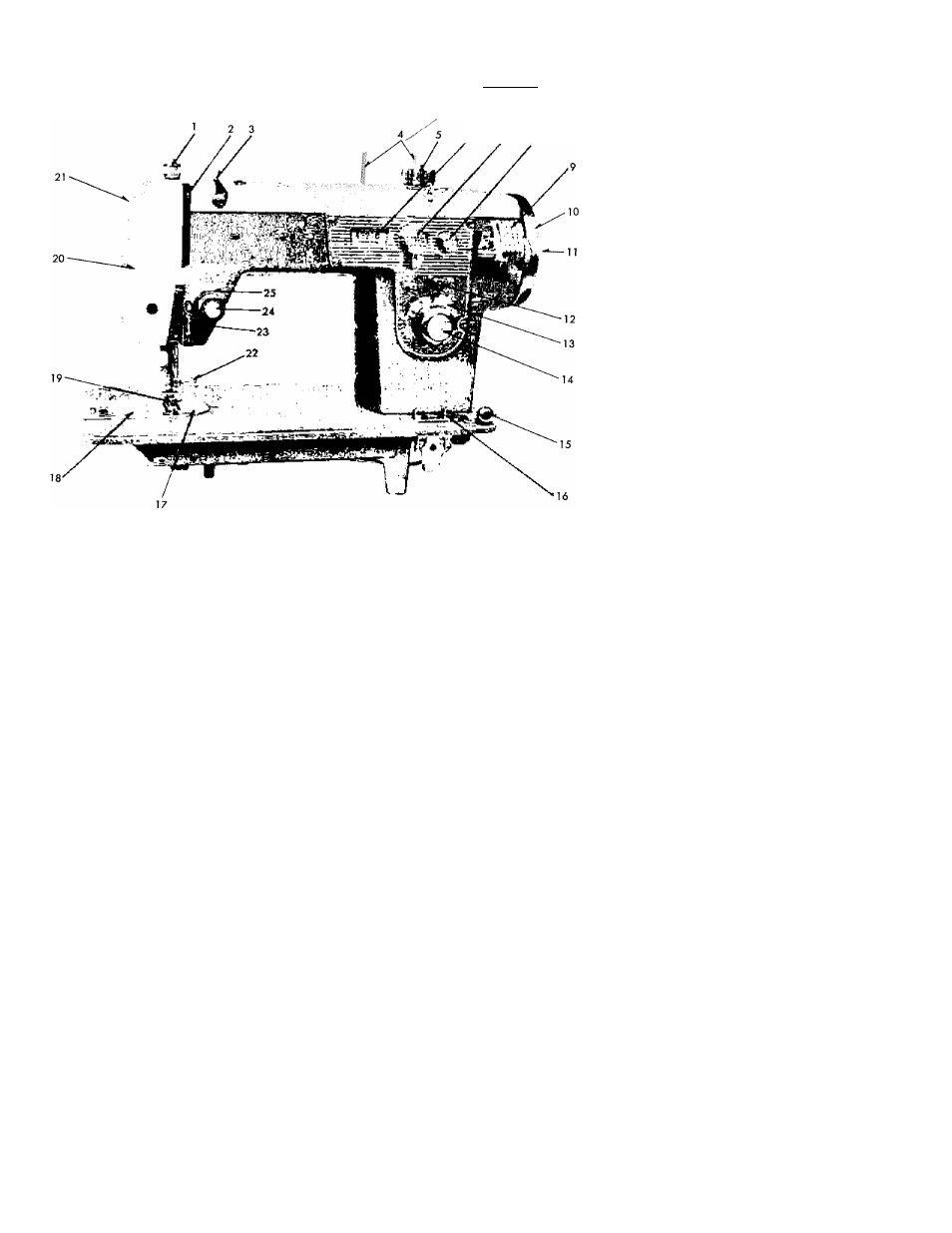

NAME OF EACH PARTS
'
/ 1
A
1
/"“
6
7
8
1.
Automatic darner
2.
Thread take up lever
3.
Upper arm thread guide
4.
Spool pins
5.
Button hole knob
6.
Zig-zag width window
7.
Zig-zag width control knob
8.
Zig-zag width stopper
9.
Bobbin winder
10.
Balance wheel
11.
Stop motion knob
12.
Push button for reverse sewing
13.
Stitch length window
14.
Stitch length control knob
15.
Bobbin winder thread tension guide
16.
Push button drop feed
17.
Needle plate
18.
Slide plate
19.
Presser foot for zig-zag sewing
20.
Face cover (Built-in-light)
21.
Sew-iieht switch
22.
Needle clamp
23.
Upper thread retaining bar
24.
Upper thread tension regulator
25.
Check spring
