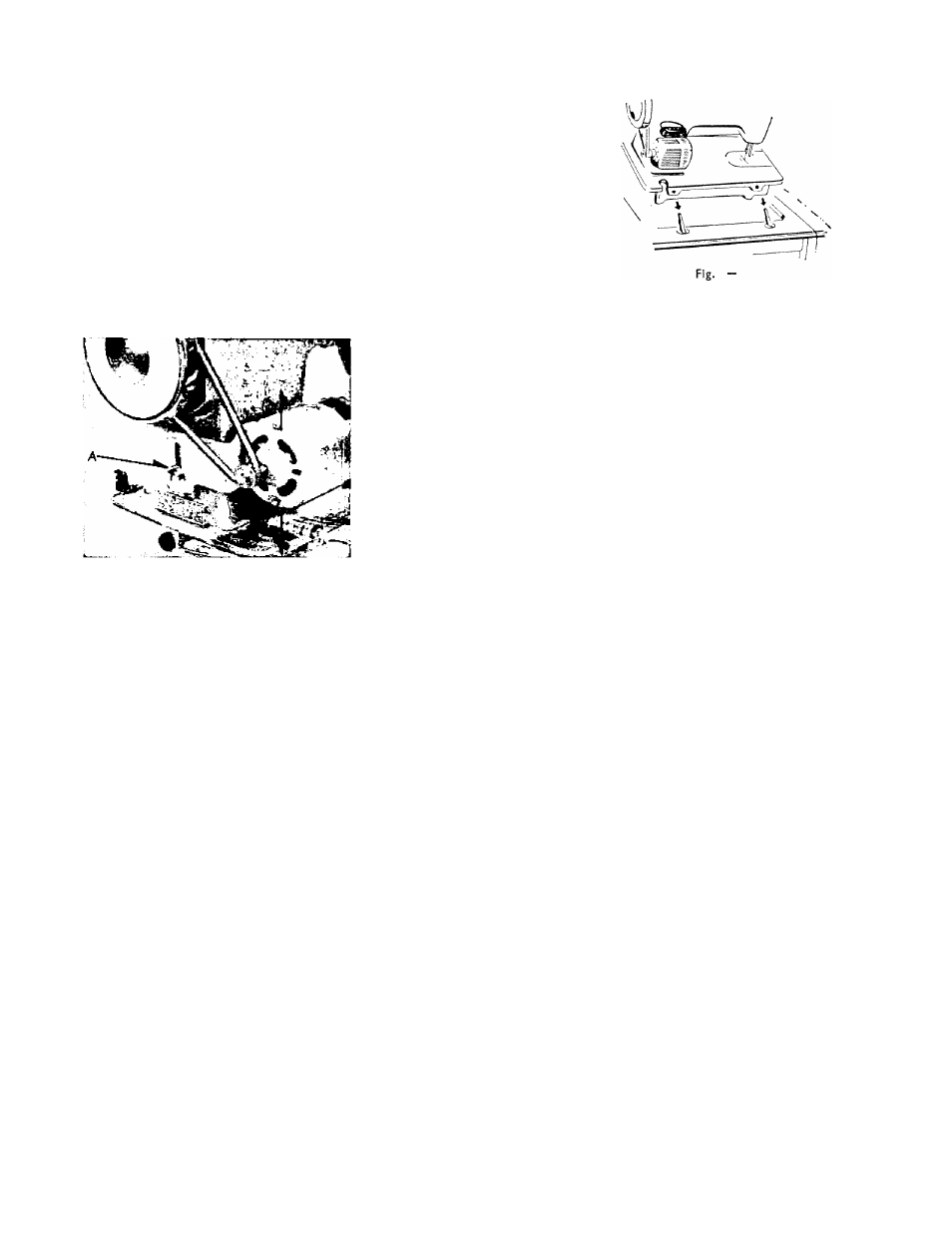

1. INSTALLING HEAD INTO CABINET

1) Loosen the two hinge screws under the holes in the rear edge

of the machine bed ¡Fig. 11.

2! Raise hinge-pins in the cabinet cut-out, slip machine head on

the pins, and tighten hinge screws securely.

2. ATTACHING MOTOR TO MACHINE

Fig. 2

Then tighten the motor bracket tastening-screw tightly. NEVER OIL THE MOTOR.

— 4 —

1) Place the motor bracket over the tongue of the arm under

the balance wheel, the screw hole in the center of the

tongue can be seen through the slot of the motor bracket

IFig. 2).

2! Then insert the screw and after shifting the motor upward

as far as it will go, tighten the screw.

Slip the motor belt into the groove of the balance wheel,

and then slip the belt into the groove of the motor pulley.

Adjust the belt tension by loosing the motor bracket fas

tening-screw

and

let

the

motor

drop

downward

until

the

correct belt tension has been reached.
